BDS 2 Inch Leveling Kit | FOX 2.0 Coilover & HD Upper Control Arms | 2007-2021 Toyota Tundra 2/4WD

Overview

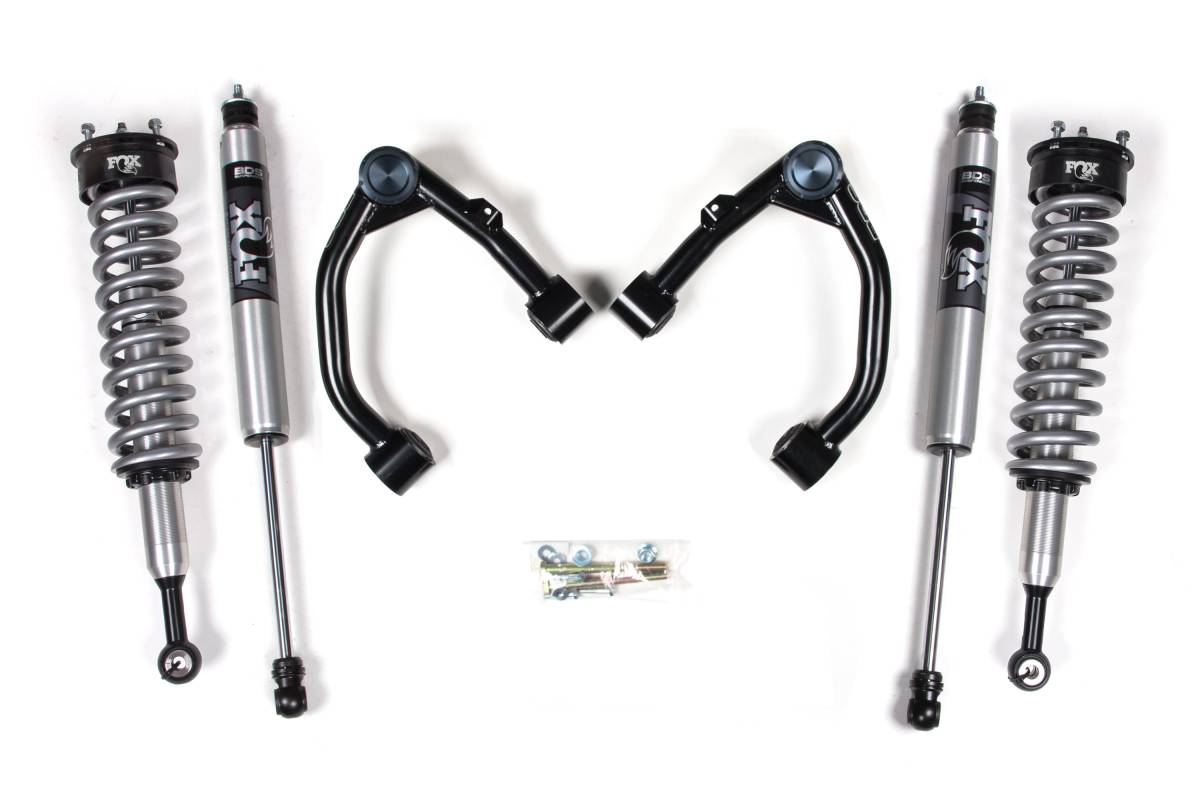

This 2-inch leveling kit from BDS Suspension is designed for the 2007–2021 Toyota Tundra (2WD/4WD) and features FOX 2.0 Performance Series coilover shocks paired with heavy-duty tubular upper control arms. The kit improves stance, performance, and capability while providing clearance for up to 33-inch tires. Up front, FOX 2.0 coilovers replace the factory strut as a direct bolt-in unit. In the rear, a matching set of FOX 2.0 Performance shocks delivers a smooth, consistent ride on and off-road.

Features

• FOX 2.0 Performance Series coilovers — direct bolt-in replacement for factory strut with improved damper performance
• FOX 2.0 Performance Series IFP rear shocks included for a matched front-to-rear ride quality
• Heavy-duty upper control arms (UCAs) increase strength and allow for more suspension travel
• UCAs feature 1.5" OD x .120-wall tubular construction with an indexed ball joint cup for corrected ball joint positioning, additional down travel, and camber adjustment
• Frame-end durometer-specific rubber bushings for maintenance-free operation
• Quality greaseable ball joint at the knuckle end for smooth, quiet operation and superior durability
• UCAs finished in durable black powder coat with billet aluminum dust cap
• FOX 2.0 coilover body: 2.0" extruded and machined 6061 T6 aluminum for improved heat dispersion
• Internal floating piston (IFP) eliminates oil aeration
• 5/8" hard-chrome-plated, heat-treated alloy shaft
• Coilovers come preloaded with springs and top plate for easy installation
• Factory Protection Plus drivetrain warranty included
• 100% bolt-on installation

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 2"
• Rear Lift Method: Stock
• Rear Lift Height: 0"
• Lift Height Range: 2"–3.5"
• Shocks Included: Yes
• Tire Clearance: Up to 33"

Installation

• Estimated Installation Time: 3–4 hours
• Installation Difficulty: Moderately Easy
• Installation Type: 100% Bolt-On

Important Notes

• This kit is compatible with TRD Pro models, but will only net 2" of lift due to the taller factory ride height on those vehicles.
• This kit is designed to level the vehicle. If maintaining the stock rake is desired, a 1" shackle or 2" rear block kit is available as an add-on when building your kit.
