BDS 3 Inch Lift Kit | FOX 2.0 Coil-Over | 2007-2021 Toyota Tundra 2/4WD

Overview

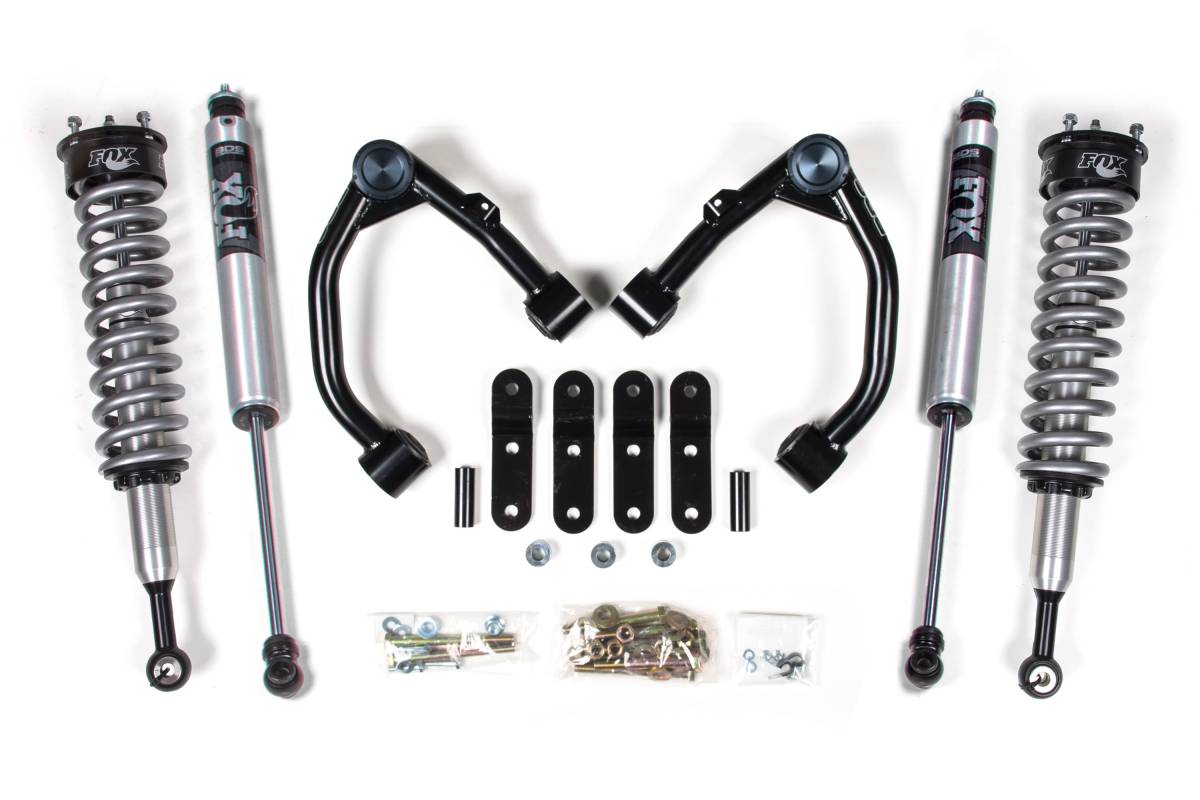

This 3-inch lift kit from BDS Suspension is designed for 2007-2021 Toyota Tundra trucks (2WD and 4WD) and features FOX 2.0 Performance Series coil-over shocks. The kit improves stance, performance, and capability while providing clearance for up to 33-inch tires. Up front, the kit includes FOX 2.0 Performance Series coil-over shocks, heavy-duty tubular upper control arms, and 1-inch front differential drop spacers to reduce CV angles. In the rear, 1-inch lift shackles level the truck alongside a matched set of FOX 2.0 Performance Series shocks.

Features

• FOX 2.0 Performance Series coil-over struts offer improved damper performance over factory and are a direct bolt-in replacement
• Heavy-duty upper control arms increase strength and allow for more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• 100% bolt-on installation

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 3"
• Rear Lift Method: Shackle
• Rear Lift Height: 1"
• Total Lift Range: 2"–3.5"
• Shocks Included: Yes
• FOX 2.0 coil-over body: 2.0" extruded and machined 6061-T6 aluminum
• Internal floating piston (IFP) to eliminate oil aeration
• Shaft: 5/8" hard chrome plated, heat-treated alloy
• Coil-overs come preloaded with springs and top-plate
• Upper control arm construction: 1.5" OD x .120-wall tubular steel
• Indexed ball joint cup for corrected ball joint positioning, additional down travel, and camber adjustment
• Frame-end bushings: durometer-specific rubber (maintenance-free)
• Ball joint: greaseable, for smooth and quiet operation
• Upper control arm finish: durable black powder coat with billet aluminum dust cap

Installation

• Estimated Installation Time: 4–5 hours
• Installation Difficulty: Moderate
• Installation Type: 100% bolt-on

Important Notes

• This kit is compatible with TRD Pro models, but will only achieve approximately 2" of lift due to the taller factory ride height on those vehicles.
• Compatible with 2WD models; differential drop brackets are not used during 2WD installation.
