Configured with FOX 2.5 Performance Elite (PE) remote reservoir rear shocks to match the front coil-overs. Features a 2.5-inch impact extruded aluminum body, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design separating shock oil from high-pressure nitrogen, DSC (Dual Speed Compression) adjuster, and is fully serviceable for a lifetime of use.
Overview

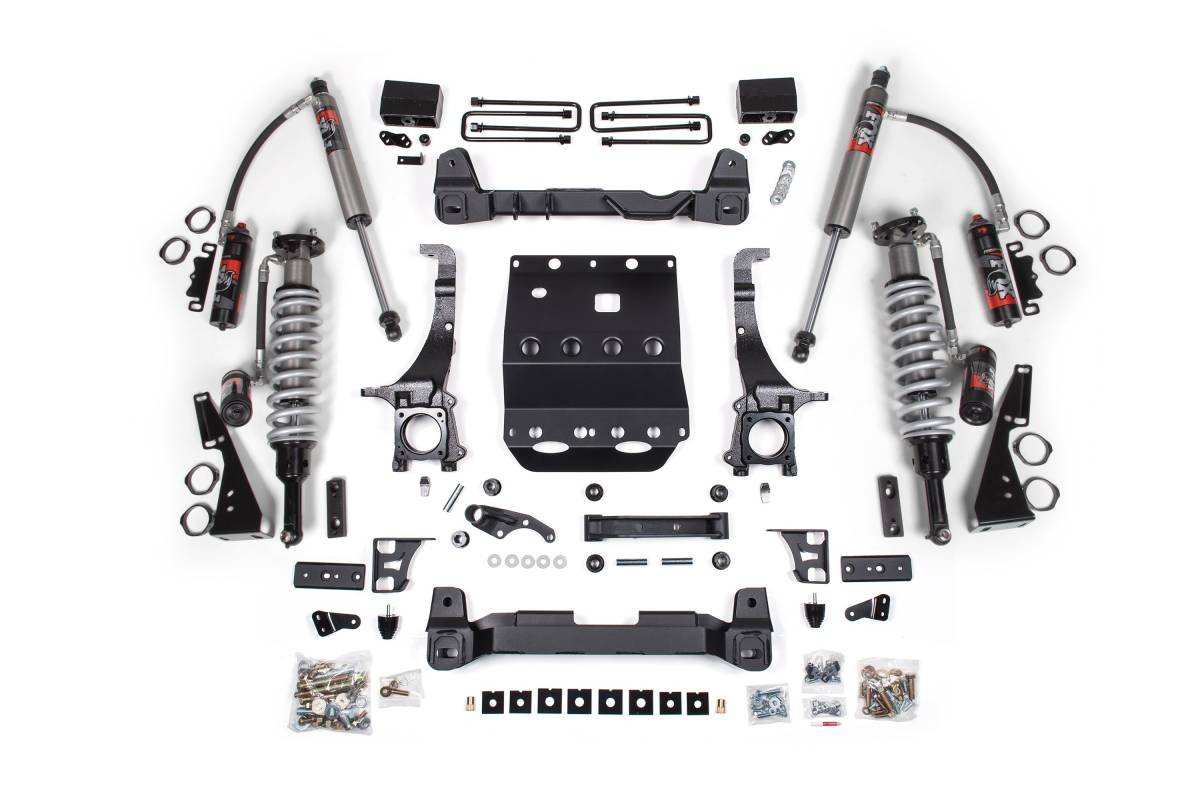

The BDS 6-inch suspension lift kit for the 2016–2023 Toyota Tacoma 4WD features FOX 2.5 Performance Elite (PE) coil-overs up front and your choice of FOX 2.0 Performance Series or FOX 2.5 PE rear shocks. The kit is designed to improve stance, performance, and capability while providing clearance for up to 35-inch tires.
Up front, the kit pairs FOX 2.5 PE coil-overs with high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates for off-road protection. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles that utilize factory tie rod ends, maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts, and all required hardware are included.
In the rear, heavy duty cast steel lift blocks, a brake line bracket, and longer U-bolts lift and level the stance without affecting load capacity.
Features
- FOX 2.5 Performance Elite coil-overs up front with choice of FOX 2.0 Performance Series or FOX 2.5 PE rear shocks for improved ride quality, performance, and capability
- High clearance crossmember design maximizes ground clearance
- CNC-machined ductile iron steering knuckles maintain ESC system compliance using factory tie rod ends
- HD skid plate system for improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Provides clearance for up to 35-inch tires
- No Fine Print Warranty; high-strength American steel construction
Specifications
- Lift Height: 6 inches (TRD PRO models yield approximately 5 inches of lift)
- Front shocks: FOX 2.5 Performance Elite coil-overs with DSC (Dual Speed Compression) adjuster and external remote reservoir
- FOX 2.5 PE shock body: 2.5-inch impact extruded aluminum; 7/8-inch hard chrome plated heat-treated alloy steel shaft
- FOX 2.0 Performance Series shock body: 2-inch impact extruded aluminum; IFP monotube design; 5/8-inch hard chrome plated heat-treated alloy steel shaft; CNC machined 6061-T6 aluminum mounting ends
- Rear lift: Heavy duty cast steel lift blocks with longer U-bolts
- Crossmembers: High-arched, 1/4-inch thick fully welded steel
- Steering knuckles: CNC-machined ductile iron
- FOX shocks: 1-year Manufacturer's Warranty; fully serviceable
Installation
- Estimated Time: 8–10 hours
- Difficulty: Difficult
- Note: Minor welding required; frame bracket modification required
Important Notes
- Will work with TRD PRO models, but will only net 5 inches of lift
- Minor welding required
- Requires frame bracket modification
- Stock wheels cannot be reinstalled
- System will work on 2WD Pre-Runner models
- Kit requires 18-inch or larger wheels; 17-inch wheels cannot be used
