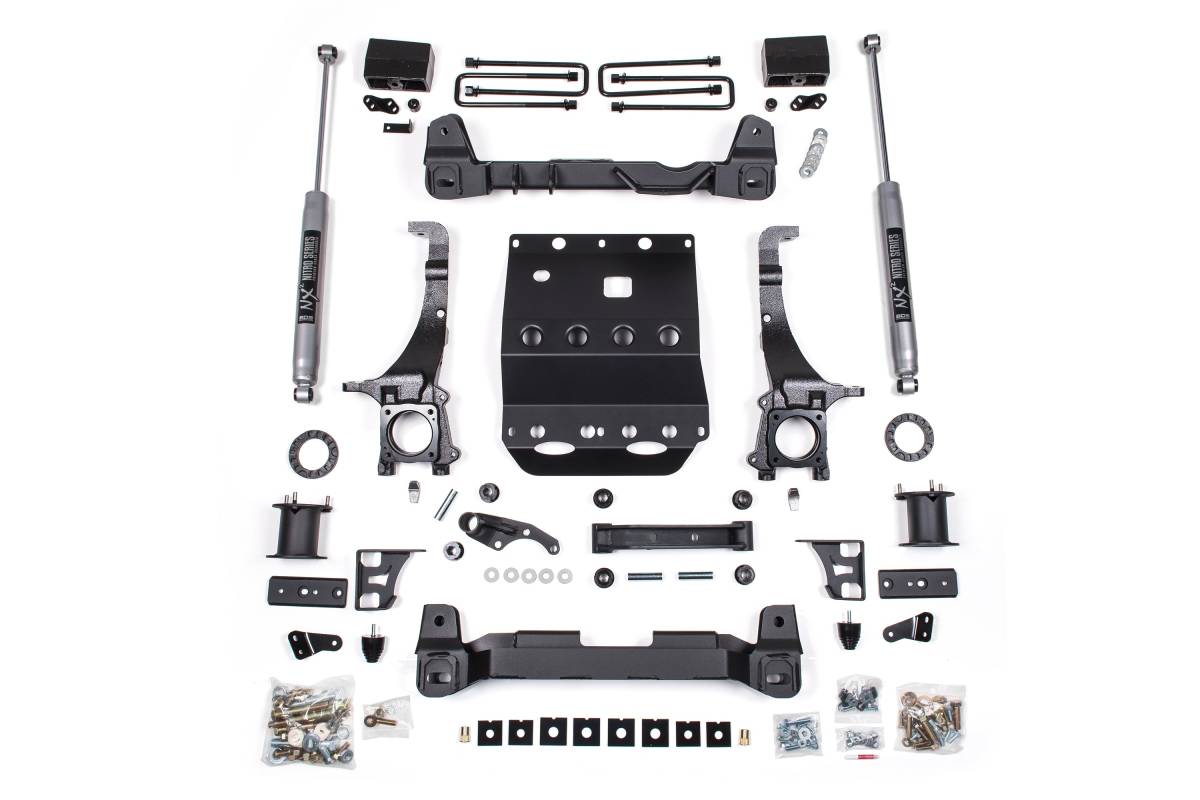

This configuration includes NX2 Nitro Series rear shocks. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.
Overview

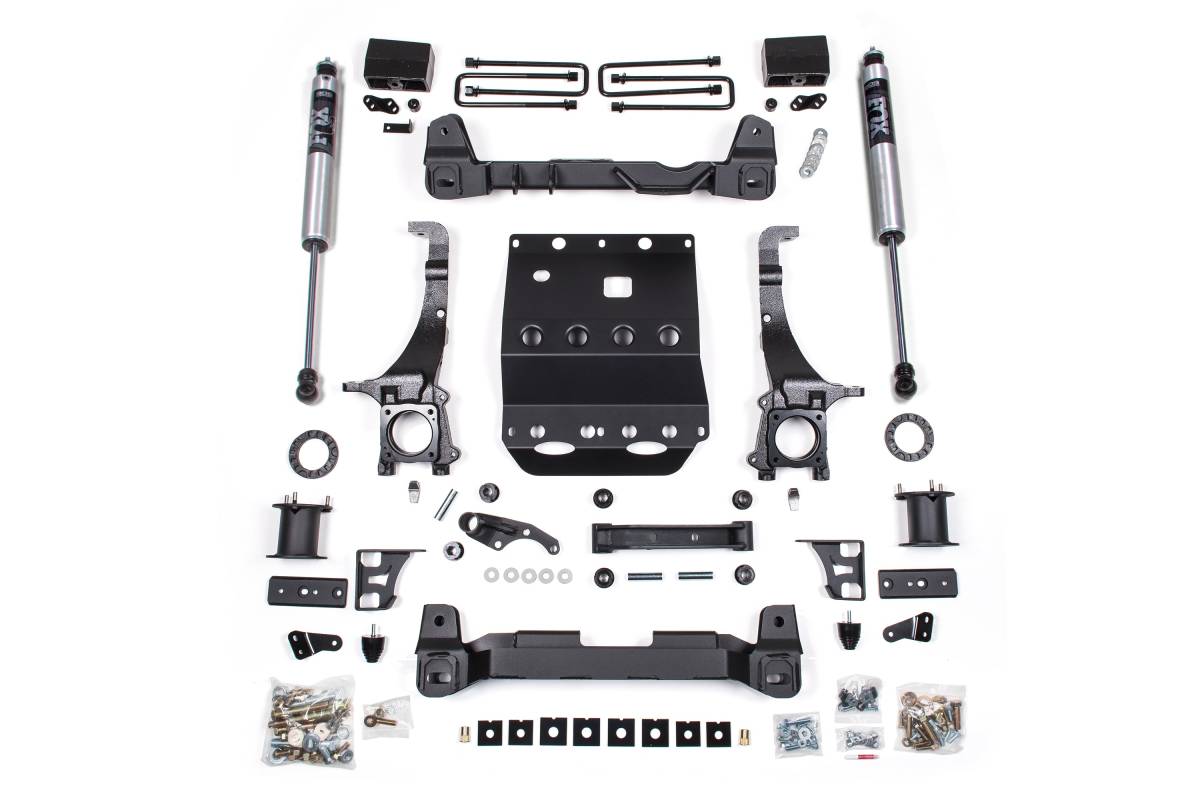

BDS Suspension offers a 6-inch suspension lift kit for 2016–2023 Toyota Tacoma 4WD trucks, designed to improve stance, performance, and off-road capability with clearance for up to 35-inch tires. Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for off-road protection. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles that work with factory tie rod ends to maintain ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and all necessary hardware are also included. The rear of the kit uses heavy-duty cast steel lift blocks, brake line brackets, and longer U-bolts, rounded out with a rear shock option to suit your performance needs.
Features
- High-clearance crossmember design maximizes ground clearance using 1/4-inch thick laser-cut steel
- Robust CNC-machined ductile cast iron steering knuckles maintain proper steering angles and ESC system compliance
- Heavy-duty skid plate system improves off-road protection and bolts together to create a rigid subframe
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- Heavy-duty cast steel rear lift blocks and longer U-bolts
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 6 inches
- Tire Clearance: Up to 35 inches
- Compatible Vehicles: 2016–2023 Toyota Tacoma 4WD (also compatible with 2WD PreRunner models)
- Front crossmembers: 1/4-inch thick laser-cut high-arched steel
- Steering knuckles: CNC-machined ductile cast iron, compatible with factory tie rod ends
- Rear lift blocks: Heavy-duty cast steel
Installation
- Estimated Time: 4–5 hours
- Difficulty: Moderate
- Required Tools: Reciprocating saw, welding equipment, strut compressor
Important Notes
- Will not work on TRD Pro models
- Minor welding required
- Requires frame bracket modification
- Strut compressor required for installation
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Cannot use 17-inch wheels
- FOX Shocks required for 2013–2020 models
