BDS 4 Inch Lift Kit | 2016-2023 Toyota Tacoma 4WD | NX2 Nitro Series Rear Shocks

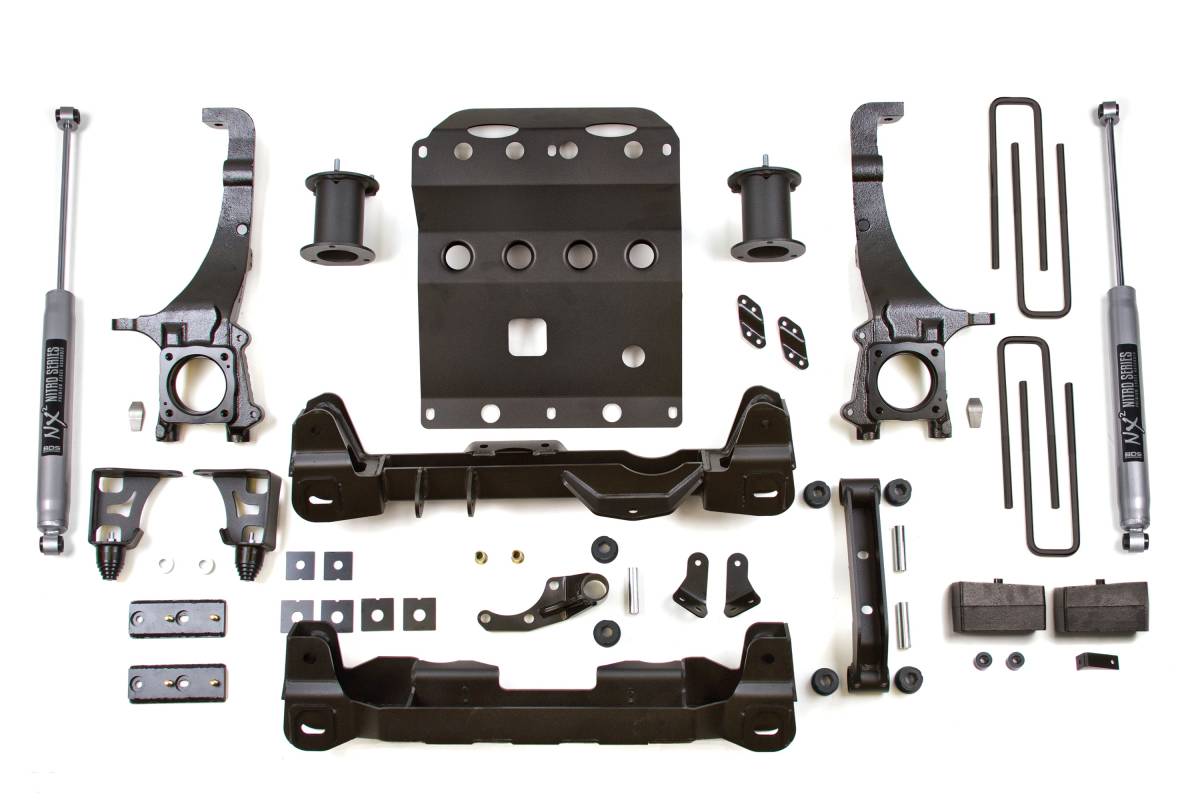

This configuration includes NX2 Nitro Series rear shocks. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Overview

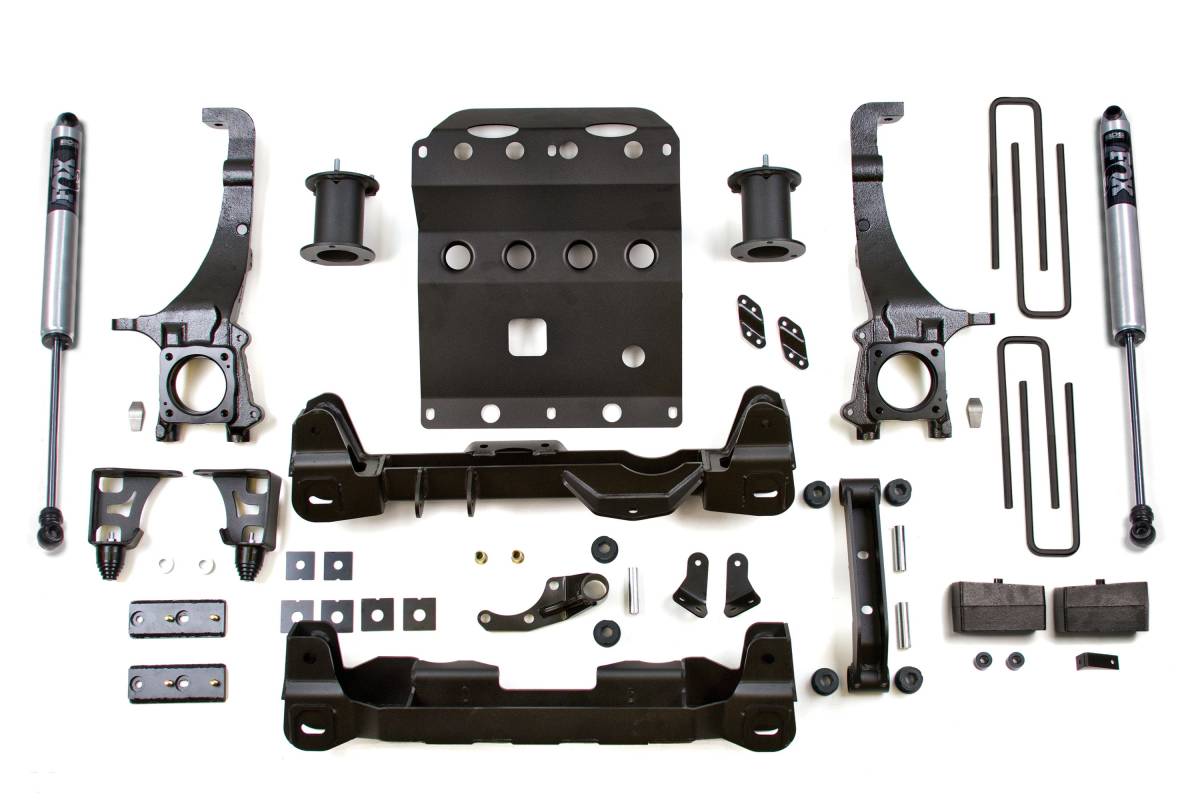

BDS Suspension's 4-inch suspension lift kit is engineered for the 2016–2023 Toyota Tacoma 4WD, designed to improve stance, performance, and capability while providing clearance for up to 33-inch tires. Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles that utilize factory tie rod ends, maintaining ESC system compatibility. The rear of the kit uses heavy-duty cast steel lift blocks, brake line brackets, and longer U-bolts. Also included are sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and all required hardware.

Features

• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
• Heavy-duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX Performance Series IFP gas shocks for improved ride and off-road performance (variant-dependent)
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2016–2023 Toyota Tacoma 4WD
• Tire Clearance: Up to 33 inches
• Front: Top-mounted strut spacers, high-arched 1/4-inch thick laser-cut steel crossmembers, multipiece differential relocation brackets, CNC-machined ductile cast iron steering knuckles
• Rear: Heavy-duty cast steel lift blocks, longer U-bolts, brake line bracket
• Includes: Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and required hardware

Installation

• Estimated Time: 12 hours
• Difficulty: Moderate

Important Notes

• Will not work on TRD Pro models
• Minor welding required
• Requires frame bracket modification
• Stock wheels cannot be reinstalled
• System will work on 2WD PreRunner models
• Cannot use 17-inch wheels
• FOX Shocks required for 2013–2020 models
