BDS 7 Inch Lift Kit | 2016-2021 Toyota Tundra 2/4WD | FOX 2.0 Performance Series Rear Shocks

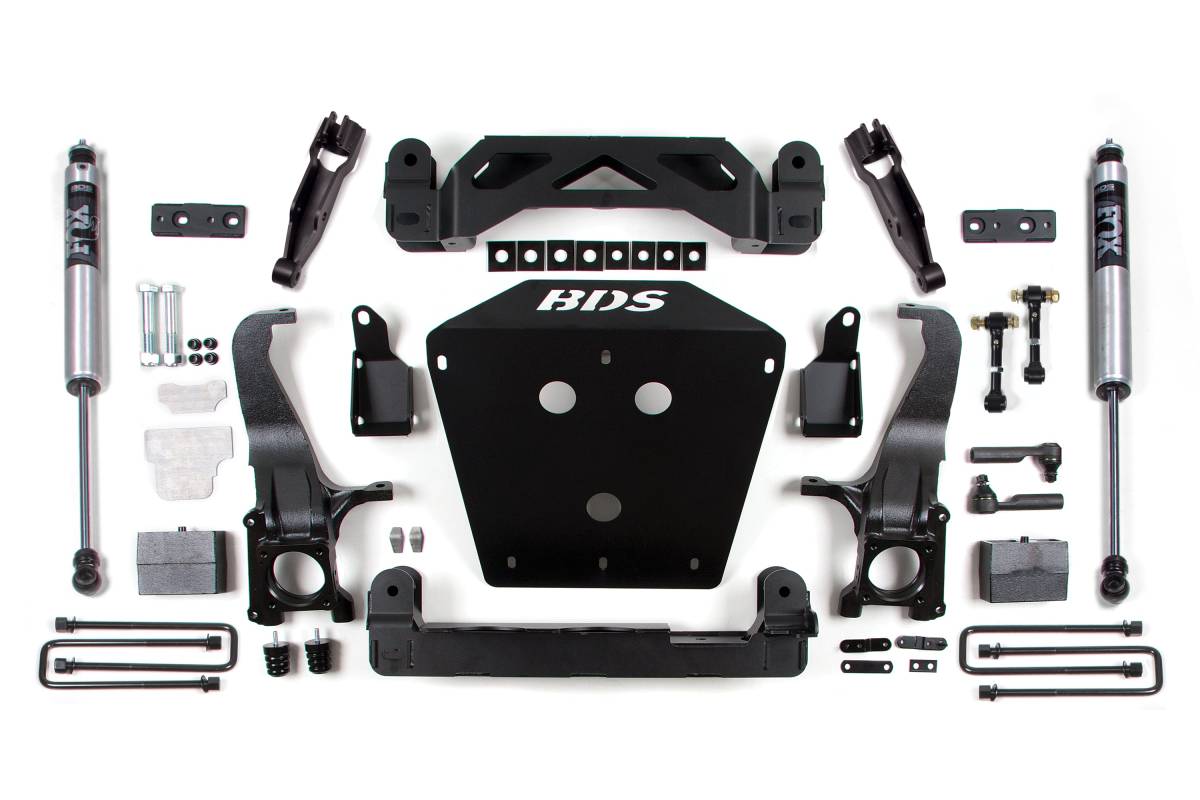

Configured with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

BDS Suspension's 7-inch lift kit is engineered to increase the performance and capability of 2016–2021 Toyota Tundra trucks (2WD & 4WD). The system utilises a high-clearance design to improve ground clearance, strength, and off-road protection while correcting suspension and steering geometry for strong on-road handling characteristics.

Specially designed 1/4-inch thick laser-cut high-clearance crossmembers maximise underbody clearance and provide a solid mounting point for the OE lower control arms. Paired with a heavy-duty front skid plate system, they create a rigid subframe while protecting vital steering and driveline components. The heavy-duty steering knuckles use ductile iron castings and are CNC-machined for a precision fit. The steering tie rod mount is relocated to mimic original steering geometry for ESC system compatibility.

Features

• High-clearance design maximises ground clearance
• Robust steering knuckles maintain ESC system compliance
• Full-width belly skid plate for added protection
• Allows fitment of up to 37-inch tires with 7-inch systems

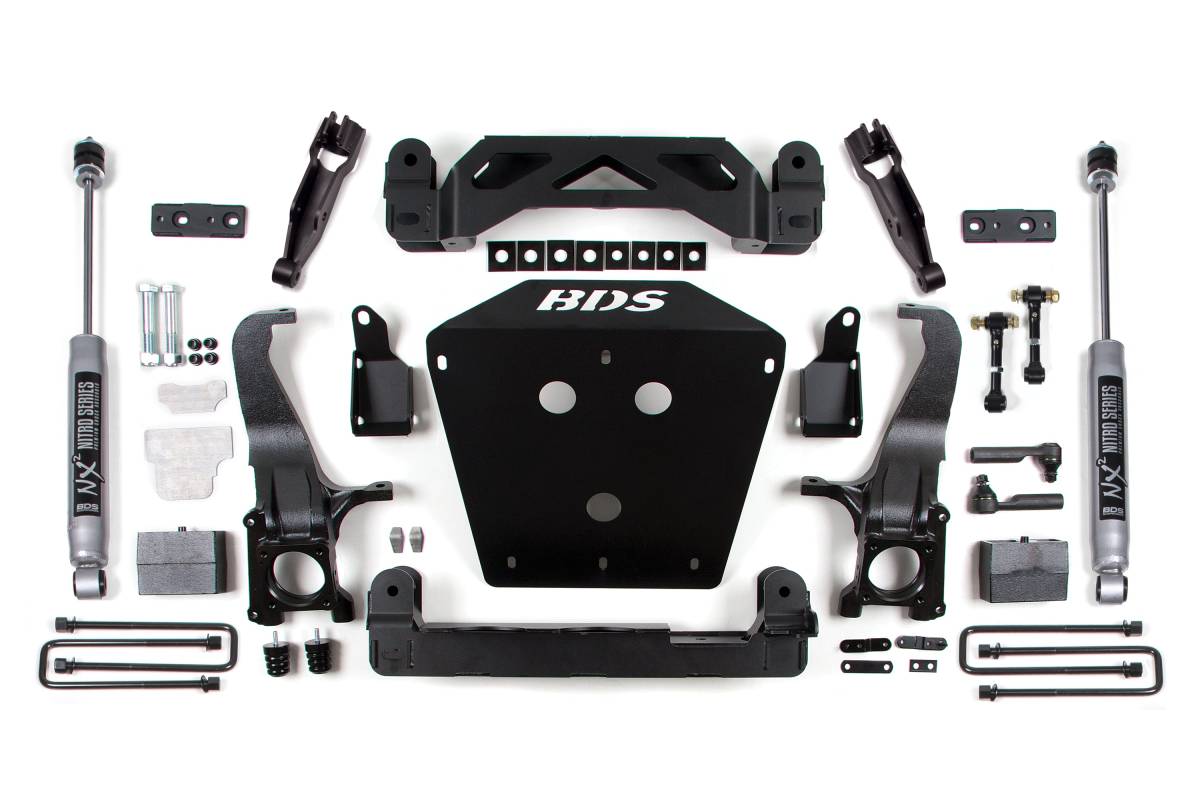

• Choice of FOX 2.0 Performance or NX2 Nitro rear shocks for improved capability

Specifications

• Lift Height: 7 inches
• High-clearance crossmembers: 1/4-inch thick, laser cut
• Steering knuckles: Ductile iron castings, CNC-machined
• Compatible vehicles: 2016–2021 Toyota Tundra 2WD & 4WD

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Reciprocating Saw, Strut Compressor, Welding Equipment

Important Notes

• Requires frame bracket modification and welding.
• No strut disassembly required.
• Stock 18-inch wheels cannot be installed.
• Factory 20-inch wheels with more than 6.25-inch backspacing cannot be installed.
• If equipped with a 2-piece rear drive shaft on 4WD, a carrier bearing drop kit will be required.
• If equipped with a 2-piece rear drive shaft on 2WD, the drive shaft will need to be lengthened before a carrier bearing kit is installed.
• Models equipped with 6-piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
• Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models.
