This kit is configured with NX2 Nitro Series rear shocks, featuring a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.
Overview

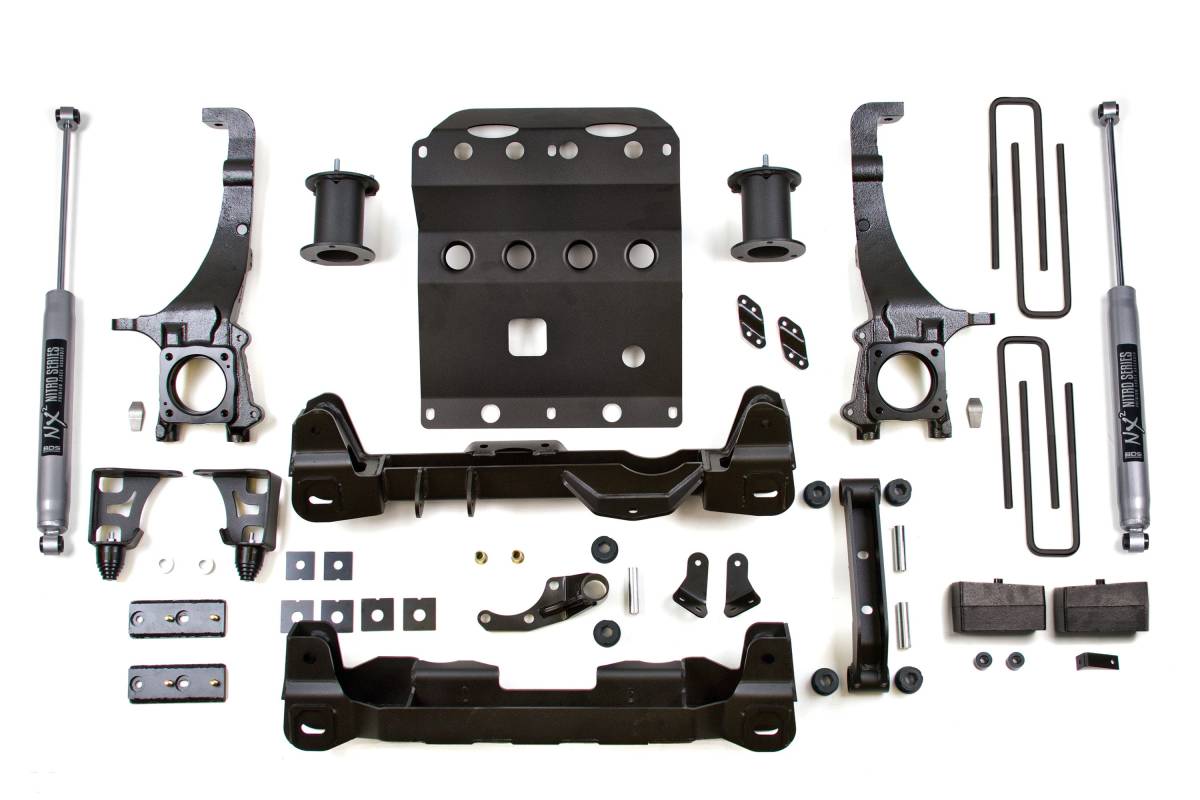

This BDS Suspension 4-inch suspension lift kit is designed for 2005–2015 Toyota Tacoma 4WD trucks, providing improved stance, ground clearance, and off-road capability with fitment for up to 33-inch tires. Up front, the kit uses top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates. Steering geometry is corrected at the new ride height via CNC-machined ductile iron steering knuckles that retain factory tie rod ends and maintain ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and all required hardware are included. The rear suspension uses heavy duty cast steel lift blocks, a brake line bracket, and longer u-bolts, paired with your choice of specially tuned rear shocks.
Features
- High clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
- Heavy duty skid plate system provides improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- Choice of BDS NX2 Nitro Series gas shocks or FOX 2.0 Performance Series IFP gas shocks for improved ride and off-road performance
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 4 inches
- Tire Clearance: Up to 33 inches
- Front: Top-mounted strut spacers, high-arched 1/4-inch thick laser cut steel crossmembers, multipiece differential relocation brackets, CNC-machined ductile iron steering knuckles, HD skid plates, sway bar drops, bump stop extensions, brake line brackets, lower control arm cams
- Rear: Heavy duty cast steel lift blocks, brake line bracket, longer u-bolts
- Compatible with factory tie rod ends
Installation
- Estimated Time: 6–8 hours
- Difficulty: Moderate
- Special Tools Required: Reciprocating Saw, Welding Equipment
Important Notes
- Will not work on TRD Pro Models
- Minor welding required
- Requires frame bracket modification
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Cannot use 17-inch wheels
- Some 2014–15 models may not achieve the net lift height stated but will have the same lift stance/final height of an equally equipped 2005–2013 model
- FOX Shocks required for 2013–2016 models
