Configured with FOX 2.5 Coil-Overs — application-specific, adjustable 3.0 Eibach® racing springs, 2.5-inch smooth bore zinc-plated seamless steel body, 7/8-inch hard chrome-plated steel shafts, and a remote reservoir for increased fluid capacity. Tuned and ready to install straight from the box.
Overview

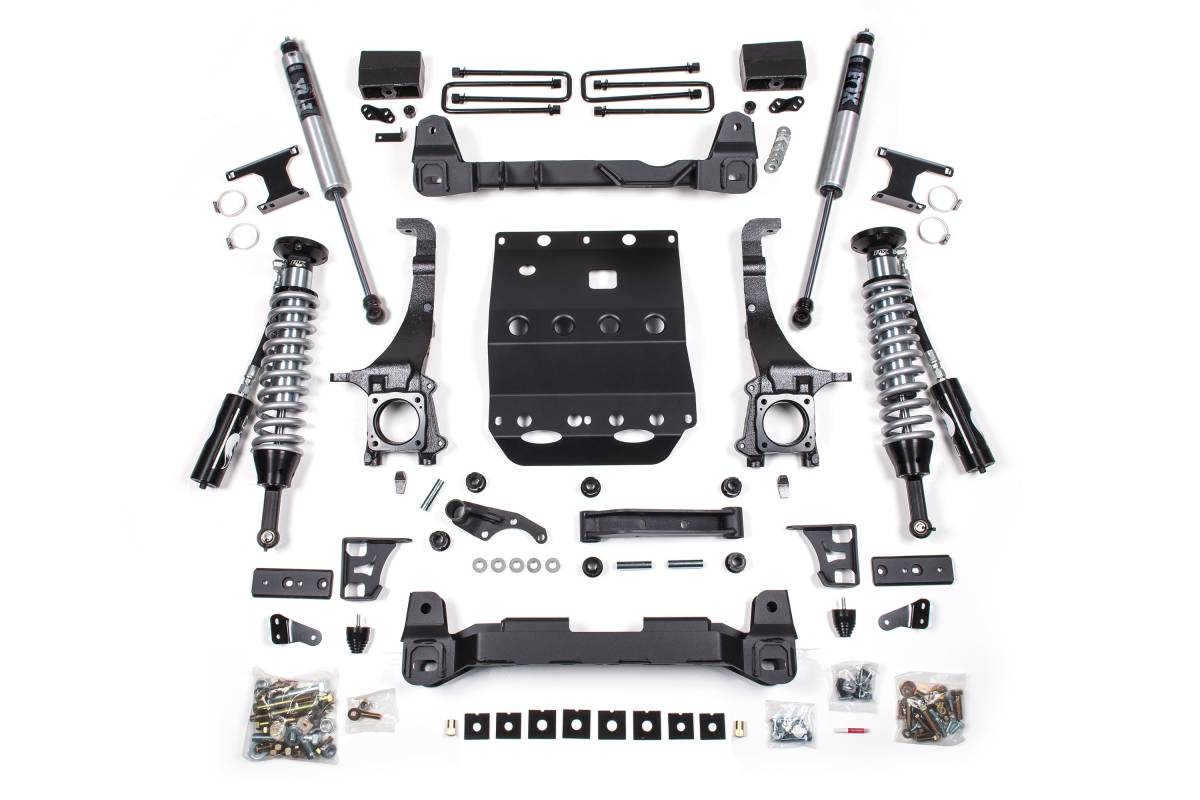

This 6-inch suspension lift kit for 2005–2015 Toyota Tacoma 4WD trucks is built around FOX 2.5 coil-over shocks designed to bolt on directly for increased suspension travel, improved ride quality, and the ability to handle rough terrain while maintaining on-road comfort. The kit provides clearance for up to 35-inch tires and takes advantage of BDS's high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry at the new ride height.
Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates. Steering geometry is corrected with CNC-machined ductile iron steering knuckles that use factory tie rod ends for ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and all necessary hardware are included. In the rear, heavy-duty cast steel lift blocks, brake line brackets, longer U-bolts, and FOX 2.0 IFP performance series gas shocks round out the system.
Features
- FOX 2.5 Factory Race Series coil-overs for improved ride quality, performance, and capability
- High-clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
- Heavy-duty skid plate system for improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX 2.0 IFP performance series gas rear shocks for improved ride and off-road performance
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift height: 6 inches
- Tire clearance: Up to 35 inches
- Front crossmembers: 1/4-inch thick laser-cut steel, high-clearance design
- Steering knuckles: CNC-machined ductile iron
- Rear lift: Heavy-duty cast steel lift blocks with longer U-bolts
- FOX 2.5 coil-over body: 2.5-inch smooth bore, zinc-plated seamless steel
- Coil-over finish: Zinc-plated and double-clear coated
- Coil-over aluminum components: Black-anodized, CNC-machined 6061-T6 billet aluminum
- Springs: Application-specific, adjustable 3.0 Eibach® racing springs
- Shaft: 7/8-inch hard chrome-plated steel
- Remote reservoir included for additional fluid capacity
- Rear shocks: FOX 2.0 IFP performance series gas shocks
Installation
- Estimated Time: 6–8 hours
- Difficulty: Moderate
- Special Tools Required: Reciprocating Saw, Welding Equipment, Strut Compressor
Important Notes
- Minor welding required
- Requires frame bracket modification
- Strut compressor required for installation
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Cannot use 17-inch wheels
- Some 2014–2015 models may not achieve the net lift height stated, but will have the same lift stance and final height as an equivalently equipped 2005–2013 model
