BDS 5 Inch Lift Kit | FOX 2.5 Performance Elite Coilover & Rear Shock | Toyota Tundra (2007-2015) 2/4WD

Configured with FOX 2.5 Performance Elite rear shocks. Features a 2.5-inch impact extruded aluminum body, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design that separates shock oil from high-pressure nitrogen, and a DSC Dual Speed Compression Adjuster as standard. Fully serviceable for a lifetime of use. Includes 1-year Manufacturer's Warranty.

Overview

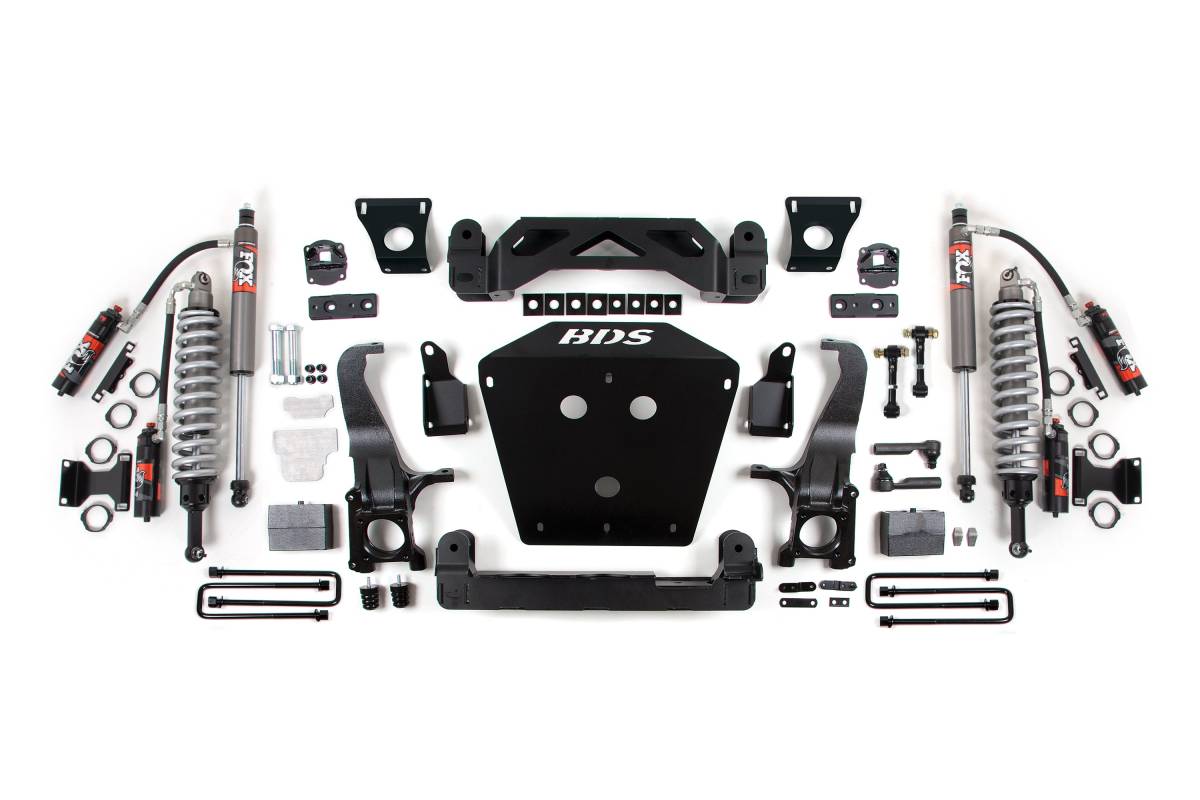

The BDS Suspension 5-inch Lift Kit for the 2007–2015 Toyota Tundra (2WD/4WD) is engineered to deliver enhanced off-road capability and ground clearance while maintaining on-road drivability. The kit combines BDS Upper Control Arms, Heavy Duty Steering Knuckles, High Clearance Crossmembers, a front skid plate system, and FOX 2.5 Performance Elite Coilovers to upgrade suspension geometry, wheel travel, and ride quality. BDS Upper Control Arms are constructed from 1.5-inch tubular steel with an indexed ball joint and factory-style rubber bushings to maximize wheel travel with maintenance-free operation. The CNC-machined ductile cast iron steering knuckles correct steering geometry at the new ride height, working with factory tie rod ends to maintain proper steering angles and ESC system compatibility. The high clearance crossmember design uses 1/4-inch thick laser-cut steel and bolts together with a front skid plate to form a rigid subframe with added underside protection. Multipoint differential relocation brackets secure the front axle and improve CV angles.

Features

• 1.5-inch tubular steel upper control arms with indexed ball joint for maximum wheel travel
• Factory-style rubber bushings for maintenance-free, long-lasting operation
• FOX 2.5 Performance Elite series adjustable coilovers for improved ride quality, performance, and capability
• High clearance crossmember design maximizes ground clearance
• Heavy duty 1/4-inch thick laser-cut crossmembers with front skid plate subframe system
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
• HD skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure front axle and improve CV angles
• FOX Performance Series IFP gas rear shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 5 inches
• Vehicle Fitment: 2007–2015 Toyota Tundra, 2WD and 4WD
• Upper Control Arm Construction: 1.5-inch tubular steel
• Crossmember Material: 1/4-inch thick laser-cut steel
• Steering Knuckle Material: CNC-machined ductile cast iron
• Front Coilovers: FOX 2.5 Performance Elite — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC Dual Speed Compression Adjuster, fully serviceable
• Rear Shock Options: FOX 2.5 Performance Elite or FOX 2.0 Performance Series IFP (see variant selection)
• FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, IFP monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish
• Shock Warranty: 1-year Manufacturer's Warranty

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Reciprocating Saw, Welding Equipment

Important Notes

• Requires frame bracket modification and welding.
• No strut disassembly required.
• Stock 18-inch wheels cannot be installed.
• Factory 20-inch wheels with more than 6.25-inch backspacing cannot be installed.
• Models with a two-piece rear driveline will require rear driveshaft modification.
• When installed on 2WD models, the differential brackets will not be used.
• ***Will work with Bilstein (yellow) factory front struts on 2014–2015 models.***
• Models equipped with 6-piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
