BDS 5.5 Inch Lift Kit | FOX 2.5 Coil-Overs w/ DSC Adjuster | Chevy Colorado & GMC Canyon (2015-2022) 4WD

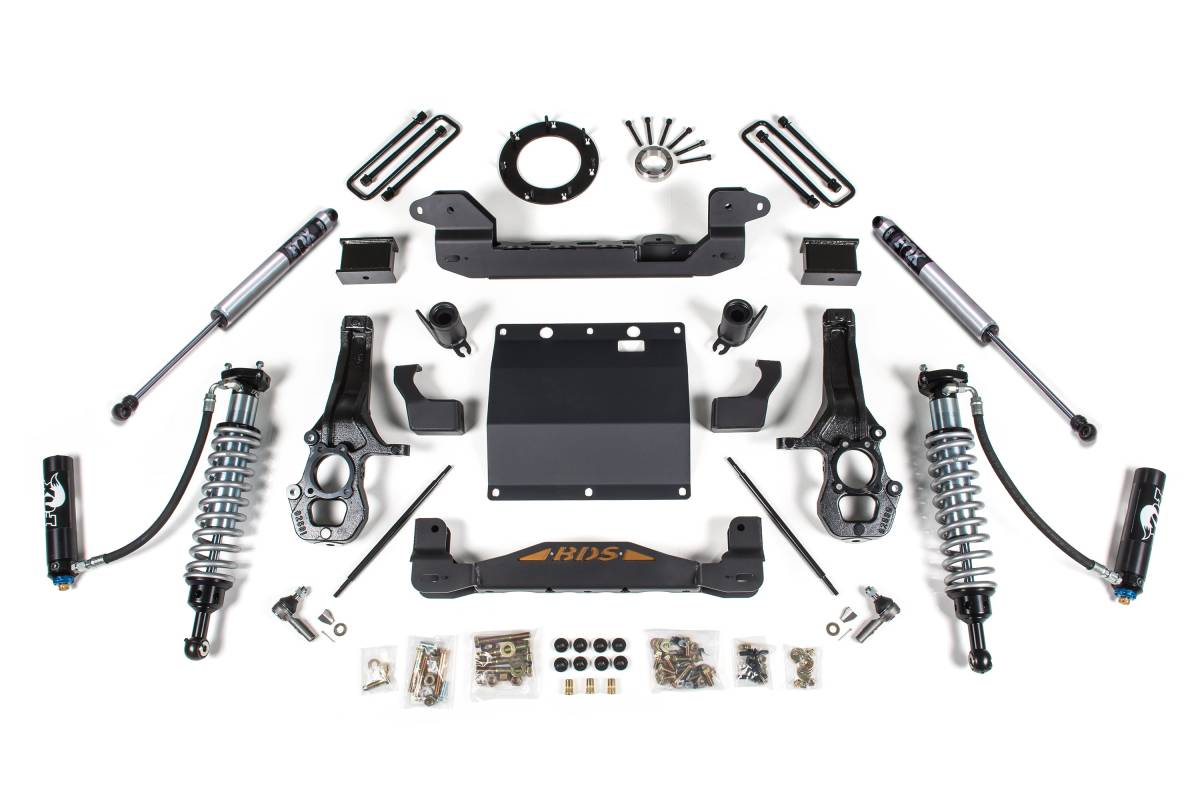

Configured with FOX 2.5 Coil-Overs with DSC (Dual Speed Compression) Adjuster — includes all features of the standard FOX 2.5 coilover plus easy twist knobs for independent Low-Speed and High-Speed Compression adjustment, increasing both compression levels up to 25% for added on-road comfort and more aggressive damping off-road.

Overview

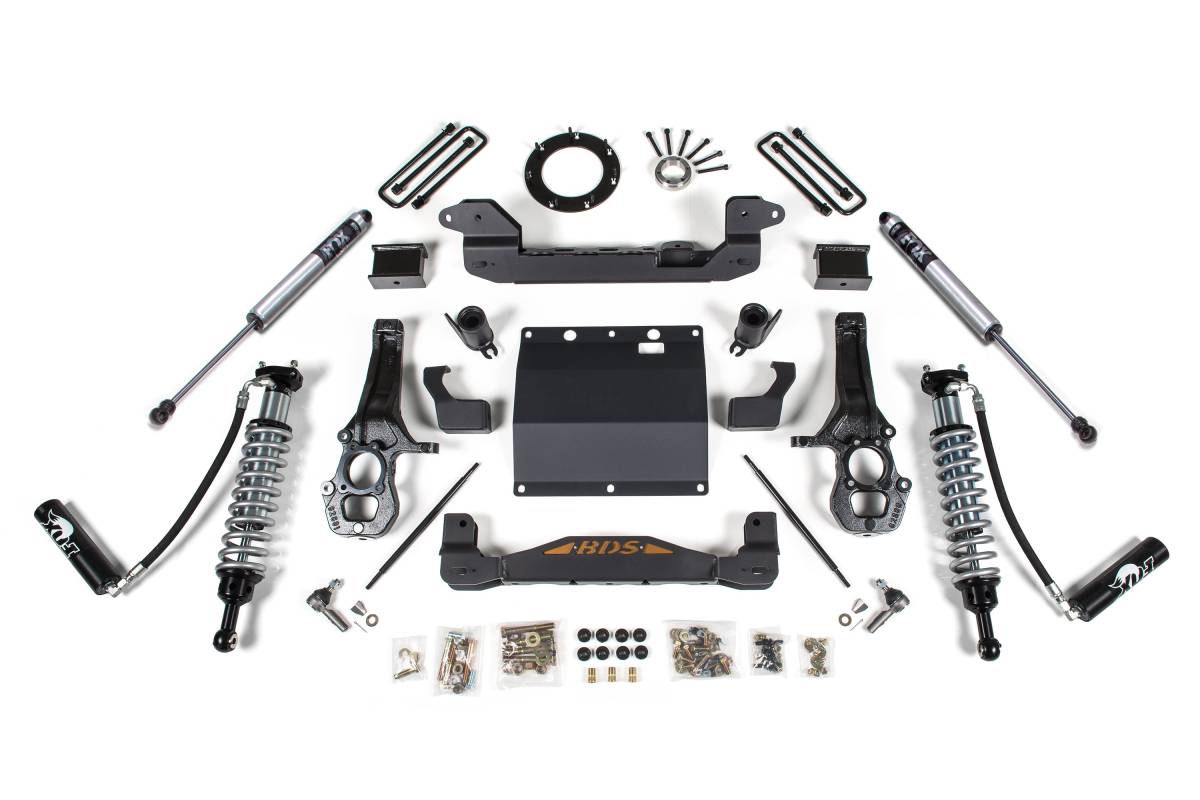

This 5.5-inch suspension lift kit for the Chevy Colorado and GMC Canyon 4WD (2015–2022) is designed to improve stance, performance, and capability, with clearance for up to 33-inch tires. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch-thick steel crossmembers, a multipiece differential relocation bracket, and heavy-duty skid plates. Steering geometry is corrected at the new ride height with CNC-machined ductile-iron steering knuckles and replacement tie rod ends for ESC system compatibility. Sway bar links, bump stop extensions, CV spacers, and all required hardware are included for a comprehensive front suspension lift. In the rear, a heavy-duty fabricated lift block replaces the stock block to lift and level the stance while retaining ride quality and load capacity, paired with new u-bolts and FOX 2.0 Performance Series shocks.

Features

• FOX 2.5 Factory Race Series coilovers for improved ride quality, performance, and capability
• Remote reservoir on FOX 2.5 coilovers for additional fluid capacity and cooler running temperatures
• High-clearance crossmember design maximizes ground clearance using 1/4-inch-thick laser-cut steel
• Front skid plate system bolts together to create a rigid subframe with added off-road protection
• Robust CNC-machined ductile cast-iron steering knuckles maintain ESC system compliance
• Replacement tie rod ends correct steering angles at the new ride height
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Heavy-duty fabricated rear lift block retains ride quality and load capacity
• FOX 2.0 Performance Series rear shocks for on- and off-road ride quality
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 5.5 inches (actual ride height on coilover kits is closer to 6 inches of lift)
• Tire Clearance: Up to 33 inches
• Crossmember Material: 1/4-inch-thick laser-cut steel
• Steering Knuckle Material: CNC-machined ductile cast iron
• Rear Lift: Heavy-duty fabricated lift block with new u-bolts
• Compatible Vehicles: 2015–2022 Chevy Colorado and GMC Canyon 4WD (including diesel models)
• Not compatible with ZR2 models

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: Cut Off Wheel or equivalent, Reciprocating Saw, Welding Equipment

Important Notes

• Inner fender trimming is required.
• Minor welding is required.
• The electronically assisted power steering system is sensitive to out-of-round, unbalanced, and more aggressive tread pattern tires. High-speed steering wheel feedback can occur.
• The actual ride height on coilover kits is closer to 6 inches of lift.
• Stock 17-inch and 18-inch wheels cannot be reinstalled with the lift kit. Aftermarket 20-inch wheels with a maximum of 5.25-inch backspacing are recommended.
• Certain wheel and tire combinations will require weld-on steering stops — these are included in the kit. See the end of the instruction sheet for details.
• Will not fit ZR2 models.
• Will fit diesel models.
