BDS 7 Inch Lift Kit | 2007-2015 Toyota Tundra 2/4WD | w/ NX2 Nitro Series Rear Shocks

This kit is configured with NX2 Nitro Series Gas Shocks for the rear. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

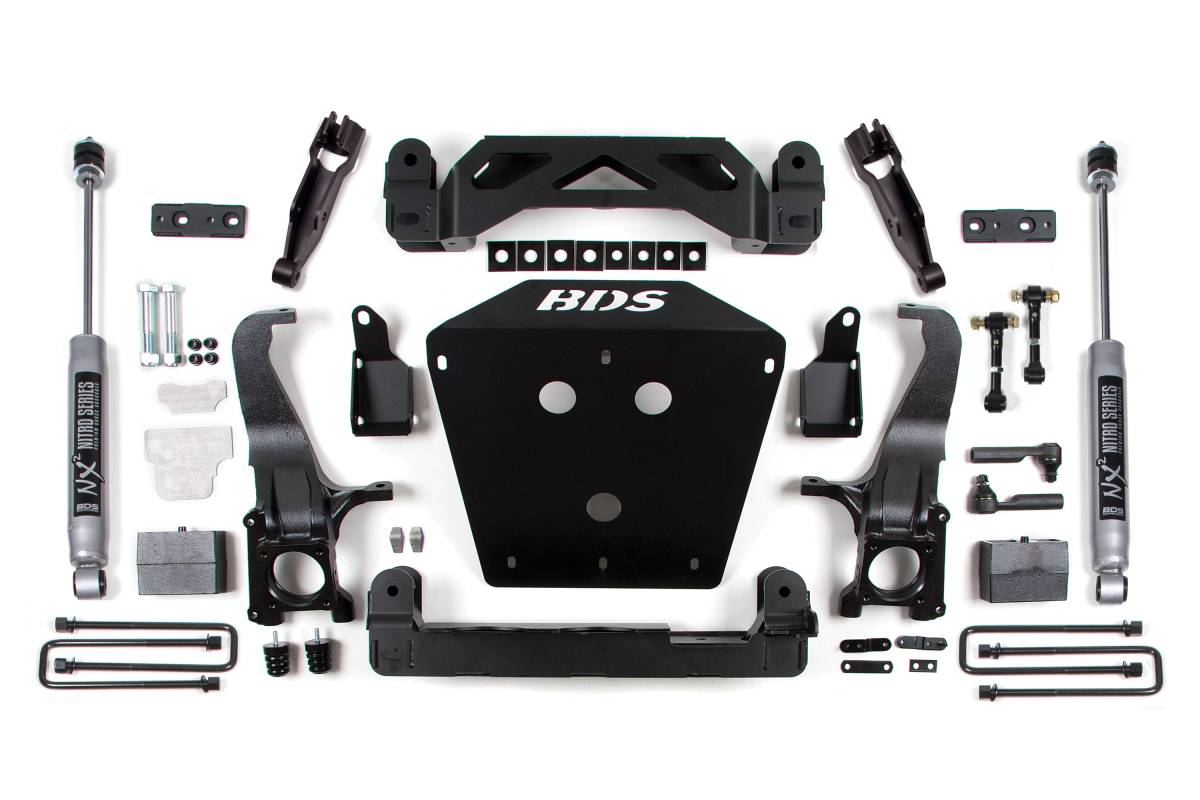

BDS Suspension's 7-inch suspension lift kit is engineered for the 2007–2015 Toyota Tundra 2WD and 4WD, improving stance, ground clearance, and off-road capability while accommodating up to 37-inch tires. Up front, the kit employs a lower strut extension, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates for off-road protection. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles with replacement tie rod ends, maintaining ESC system compatibility. The front suspension package is completed with sway bar drops, bump stop extensions, brake line brackets, and all required hardware. In the rear, the kit uses heavy duty cast steel lift blocks, a brake line bracket, and longer U-bolts, paired with your choice of NX2 Nitro Series or FOX 2.0 Performance Series rear shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
• Heavy duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Choice of BDS NX2 Nitro Series gas shocks or FOX 2.0 Performance Series IFP gas shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 7 inches
• Compatible Vehicles: 2007–2015 Toyota Tundra 2WD & 4WD
• Maximum Tire Size: Up to 37 inches
• Front crossmembers: 1/4-inch thick laser-cut high-arched steel
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift: Heavy duty cast steel lift blocks with longer U-bolts
• Includes: Strut extension, differential relocation brackets, skid plates, sway bar drops, bump stop extensions, brake line brackets, and all required hardware

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Reciprocating Saw, Strut Compressor, Welding Equipment

Important Notes

• Requires frame bracket modification and welding on 4WD models.
• Stock 18-inch wheels cannot be installed.
• Factory 20-inch wheels with more than 6.25 inches of backspacing cannot be installed.
• Models with a two-piece rear driveline will require rear driveshaft modification.
• When the kit is installed on 2WD models, the differential brackets will not be used.
• Models equipped with 6-piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
