BDS 6 Inch Lift Kit | Chevy Silverado & GMC Sierra 1500 2WD (2007-2013) | Leaf Springs | NX2 Nitro Series

Rear lift is provided by replacement Leaf Springs that mount between the factory leaf springs and axle. Cast iron construction delivers high strength, correct pinion angles, and eliminates the need for a lift block. The multi-leaf progressive design reduces axle wrap for a more controlled feel while maintaining factory payload weight ratings. Paired with NX2 Nitro Series rear shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, 2-inch impact extruded aluminum body, and a silver powder coat finish.

Overview

This BDS 6-inch lift kit is designed for 2007–2013 Chevy Silverado and GMC Sierra 1500 2WD trucks, providing increased stance, performance, and capability with clearance for up to 35-inch tires. The kit utilizes BDS's high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for on-road handling characteristics.

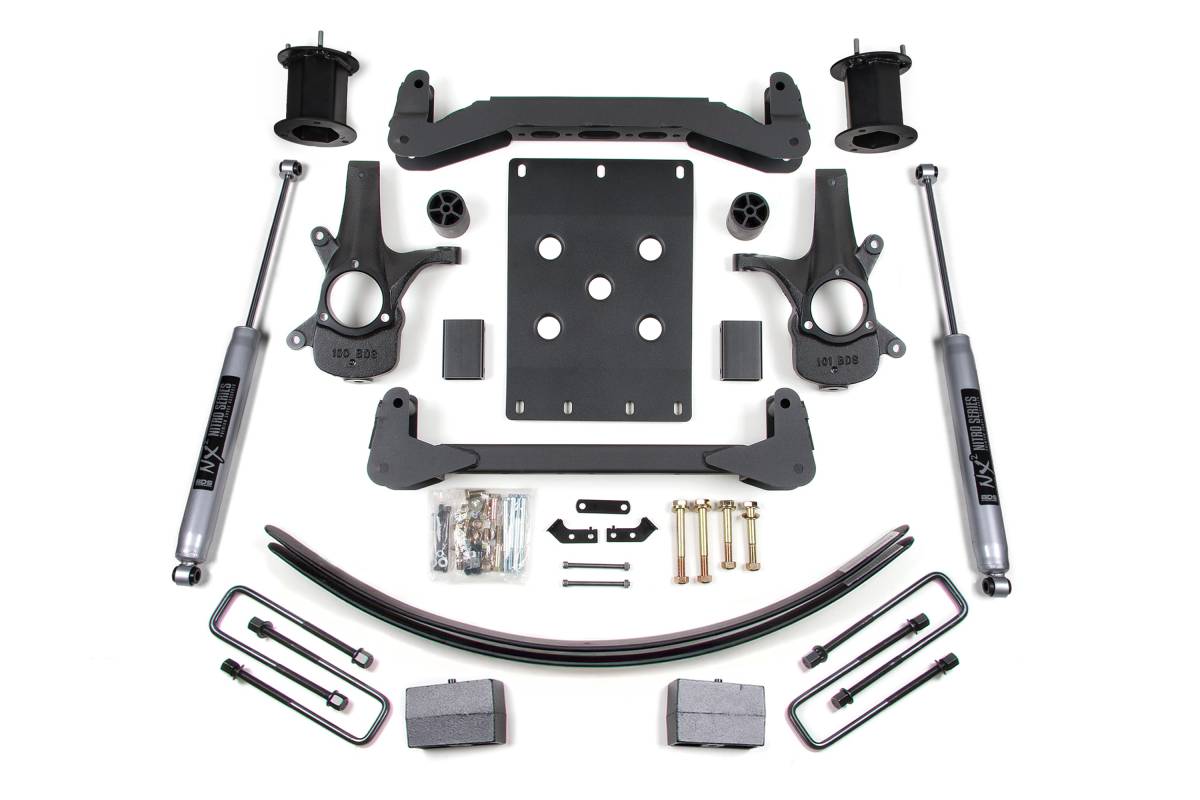

Up front, the kit includes strut spacers, high-arched 1/4-inch thick steel crossmembers, heavy duty skid plates, and CNC-machined ductile iron steering knuckles that correct steering geometry at the new ride height. Also included are sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware. In the rear, customers can select between a lift block and Add-A-Leaf package or full replacement leaf springs, along with new u-bolts, brake line brackets, and a choice of rear shocks.

Features

• High-clearance crossmember design maximizes ground clearance
• Heavy duty 1/4-inch thick laser cut steel crossmembers for precision fit
• CNC-machined ductile cast iron steering knuckles correct geometry at new ride height and maintain ESC system compliance
• Heavy duty skid plate system for improved off-road protection
• Strut spacers, sway bar drops, bump stop extensions, brake line brackets, and CV spacers included
• Choice of rear lift option: Block Kit and Add-A-Leaf or full replacement Leaf Springs
• Choice of precision-tuned NX2 Nitro Series or FOX 2.0 Performance Series rear shocks
• Factory Protection Plus drivetrain warranty included

Installation

• Estimated Installation Time: 8 hours
• Difficulty: Difficult

Important Notes

• This system will not fit 2007 Classic models
• Installation of rear leaf springs requires removal of the fuel tank
• Requires frame bracket modification
• 20-inch wheels with 5-inch to 5-3/4-inch backspacing recommended to reduce trimming
• Traction bars will not fit regular cab short box models
• Will not fit two-mode hybrid models with electronic power steering
• Stock 20-inch wheels can be re-installed only with factory tire size
• Factory 17-inch and 18-inch wheels cannot be re-installed
