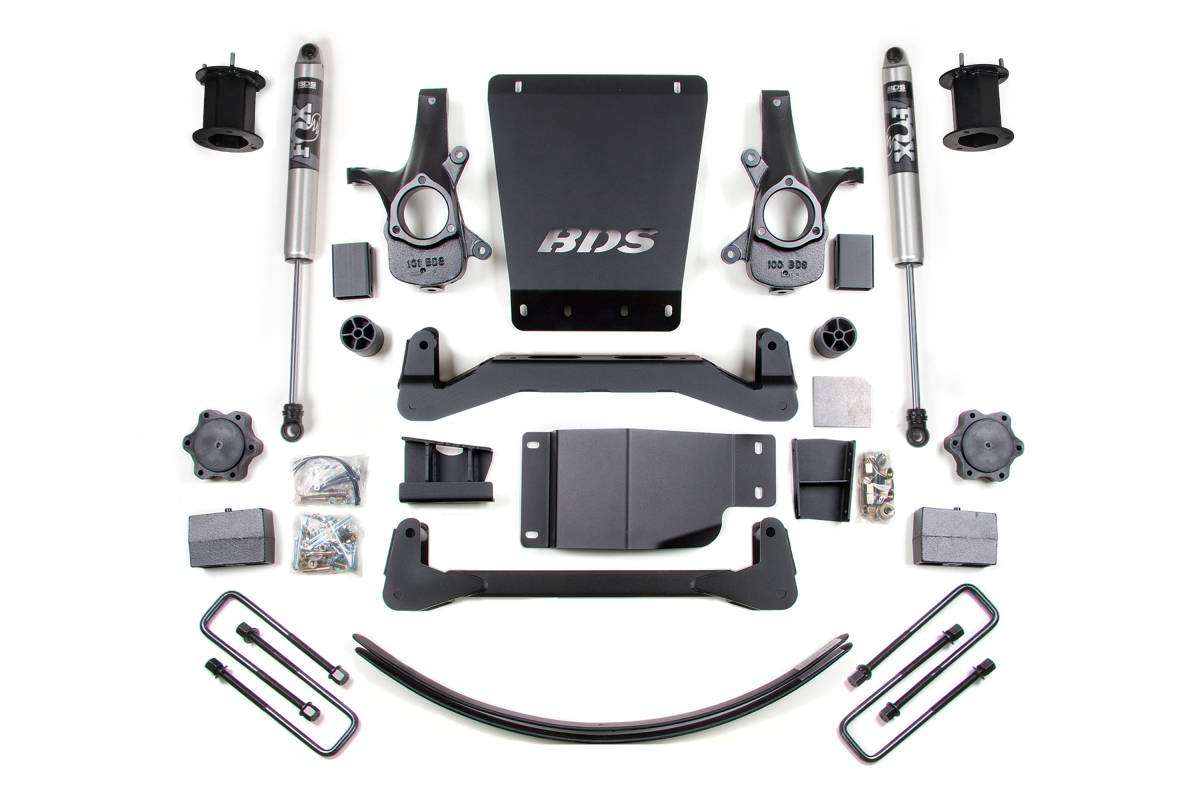

Rear lift provided by a Block Kit and Add-A-Leaf package, which installs in place of the stock block to retain ride quality and load capacity. Paired with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.
Overview
This BDS 6-inch lift kit is designed for 2007–2013 Chevy Silverado and GMC Sierra 1500 4WD trucks and provides clearance for up to 35-inch tires. The kit uses a high-clearance design to improve ground clearance, strength, and off-road protection while correcting suspension and steering geometry for capable on-road handling.

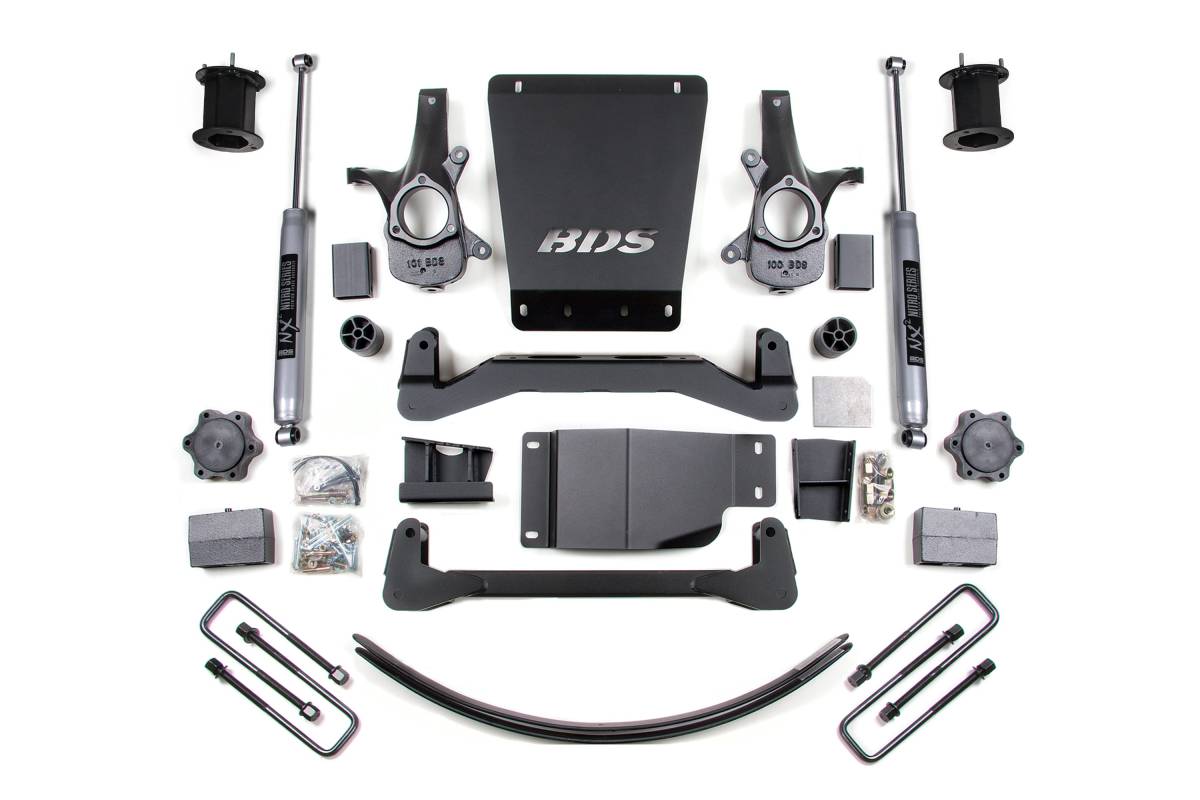

Up front, the kit includes high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket, heavy duty skid plates, and CNC-machined ductile iron steering knuckles to correct steering geometry at the new ride height. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware are also included. In the rear, buyers can choose between a block kit with add-a-leaf or full replacement leaf springs, along with new U-bolts, brake line brackets, and a choice of NX2 Nitro or FOX 2.0 Performance Series rear shocks.
Features
- High clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance and work with factory tie rod ends
- Heavy duty skid plate system for improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- Choice of FOX 2.0 Performance Series IFP gas or NX2 Nitro Series rear shocks
- Factory Protection Plus drivetrain warranty included
- Clearance for up to 35-inch tires
Specifications
- Lift Height: 6 inches
- Application: 2007–2013 Chevy Silverado 1500 / GMC Sierra 1500 4WD
- Front crossmembers: 1/4-inch thick laser cut steel, high-arched design
- Steering knuckles: CNC-machined ductile cast iron
- Rear lift options: Block Kit with Add-A-Leaf, or full Glide-Ride replacement leaf springs
- Rear shock options: FOX 2.0 Performance Series or NX2 Nitro Series
- Includes: crossmembers, skid plates, differential relocation brackets, steering knuckles, sway bar drops, bump stop extensions, brake line brackets, CV spacers, U-bolts, and hardware
Installation
- Estimated Time: 8 hours
- Difficulty: Difficult
Important Notes
- This system will not fit 2007 classic models.
- Installation of rear leaf springs requires removal of the fuel tank.
- Requires frame bracket modification.
- 20-inch wheels with 5-inch to 5-3/4-inch backspacing recommended to reduce trimming.
- Traction bars will not fit regular cab short box models.
- Add part #121651 Auxiliary Differential Support Bracket for AWD models. May also require front driveline modification.
- Will not fit two-mode hybrid models with electronic power steering.
- Stock 20-inch wheels can be re-installed only with factory tire size.
- Factory 17-inch and 18-inch wheels cannot be re-installed.
