Overview

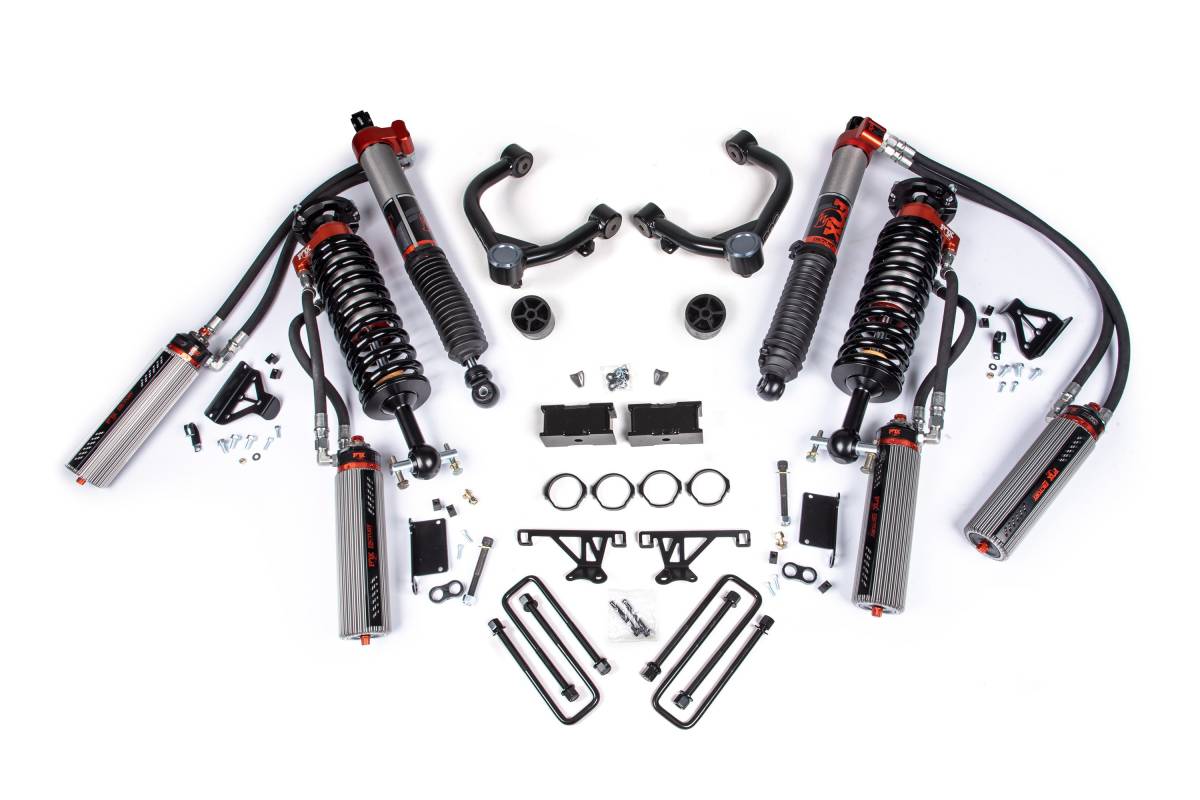

This lift kit for the 2019–2024 Chevrolet Silverado Trail Boss and GMC Sierra AT4 1500 (4WD) builds off the factory suspension geometry to improve stance, performance, and capability. Up front, the kit includes FOX Factory Race Series 3.0 Internal Bypass (IBP) remote reservoir coil-over shocks paired with BDS heavy-duty tubular upper control arms for increased strength and suspension travel. Out back, fabricated steel lift blocks, longer U-bolts, and a complementary set of FOX Factory Race Series 3.0 IBP shocks round out the setup. On Trail Boss and AT4 models, this kit yields approximately 1.5 inches of lift over factory ride height, with clearance for up to 35-inch tires (Chevy) or 33-inch tires (GMC).
FOX Factory Race Series 3.0 Internal Bypass shocks deliver position-sensitive damping technology and Dual Speed Compression (DSC) adjustment. Patented Internal Bypass technology provides multiple zones of damping control, producing more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landings. Finned external reservoirs and aluminum shock bodies manage fluid temperatures, while Type III anodization resists corrosion on the 3-inch diameter bodies.
Features
- Builds off factory suspension geometry for improved performance with straightforward installation
- Front FOX Factory Race Series 3.0 IBP coil-overs with DSC adjustment for unmatched performance and capability
- Rear FOX Factory Race Series 3.0 IBP shocks for improved ride quality, performance, and capability
- BDS HD upper control arms constructed from 1.5" OD x .120-wall tubular steel with indexed ball joint cup for corrected ball joint positioning, additional down travel, and camber adjustment
- High misalignment angle, greaseable heavy-duty ball joints for smooth, quiet operation and superior durability
- Durometer-specific rubber control arm bushings for maintenance-free operation and long service life
- Anodized billet aluminum ball joint cap to seal the top of the control arm ball joint cup from dirt and debris
- Rear lift block kit to produce a level to slightly tail-high stance
- 1/4" wheel spacer included for use with spare tire if needed
- Optional weld-on steering stops available to aid tire clearance (dependent on wheel offset selected)
- Factory Protection Plus included
Specifications
- Lift Height: 0–1.5" (on Trail Boss / AT4 over factory ride height)
- Front Lift Method: Coil-Over
- Front Lift Height: 3.5"
- Rear Lift Method: Block
- Rear Lift Height: 2.5"
- Shocks Included: Yes — FOX Factory Race Series 3.0 IBP
Installation
- Estimated Installation Time: 3–4 hours
- Installation Difficulty: Moderate
- Note: Lifting of the bed is required for rear shock installation
Important Notes
- Maximum wheel backspacing: 5.5"
- Will not fit models equipped with Adaptive Ride Control (ARC)
- Compatible with Trail Boss and AT4 models; nets approximately 1.5" of lift over factory ride height on these trims
- This kit has not been test fit on Silverado ZR2 or Sierra AT4X models
- Lifting of the bed is required for shock installation
