BDS 3.5 Inch Lift Kit | FOX 3.0 Factory Race Series IBP Coil-Over | 2019-2024 Chevy Silverado & GMC Sierra 1500

Overview

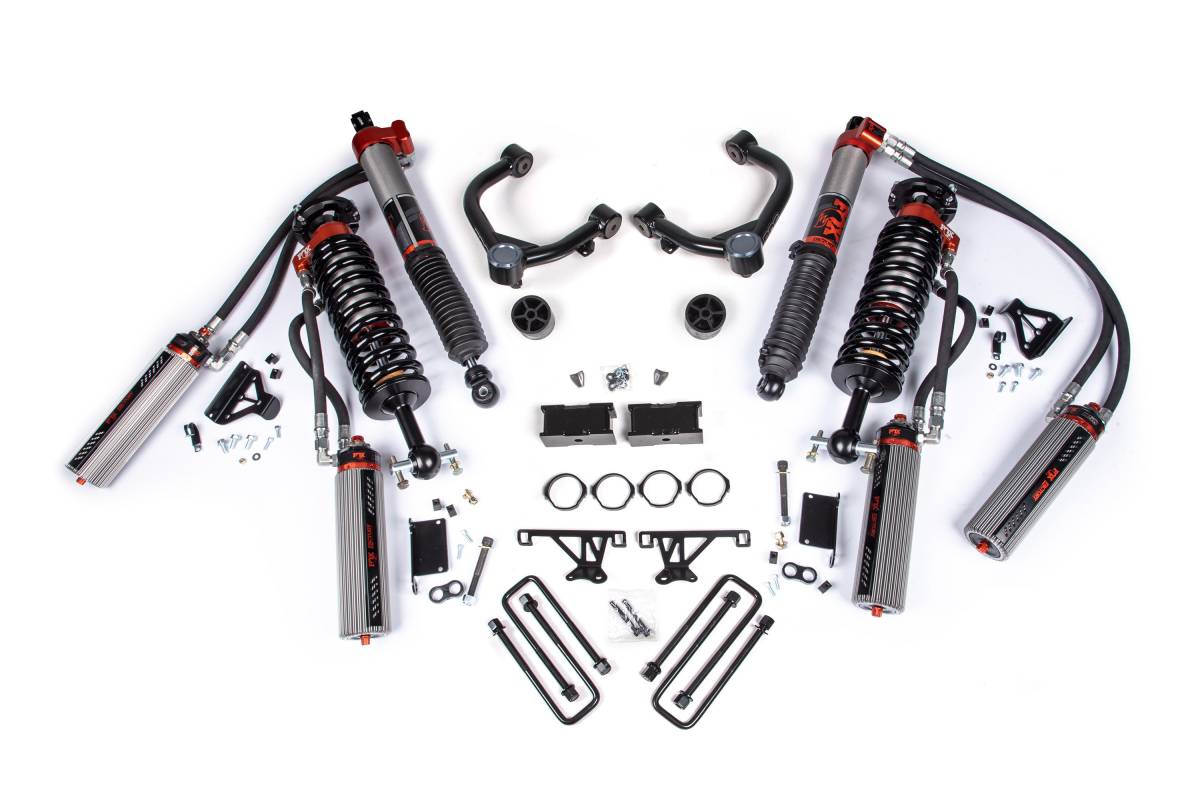

This 3.5-inch lift kit for the 2019–2024 Chevrolet Silverado and GMC Sierra 1500 pairs BDS Suspension engineering with FOX Factory Race Series 3.0 Internal Bypass (IBP) coil-over shocks up front and FOX Factory Race Series 3.0 IBP shocks in the rear. The kit builds off factory suspension geometry and includes everything required to lift the truck and provide clearance for up to 35-inch tires (Silverado) or 33-inch tires (Sierra). Up front, FOX 3.0 remote reservoir coil-over shocks are paired with BDS heavy-duty tubular upper control arms. The rear lift is achieved with fabricated steel lift blocks, longer U-bolts, and matched FOX 3.0 rear shocks.

FOX Factory Race Series 3.0 IBP shocks feature patented Internal Bypass technology that delivers position-sensitive damping across multiple zones of control. Dual Speed Compression (DSC) adjustment allows tuning for load, environment, and driving style. Finned external reservoirs and aluminum shock bodies manage fluid temperatures, while Type III anodization protects the 3-inch diameter bodies against corrosion and wear. BDS HD Upper Control Arms use 1.5-inch OD x .120-wall tubular construction with an indexed ball joint cup for corrected ball joint positioning, additional down travel, and camber adjustment. Frame-end durometer-specific rubber bushings provide maintenance-free operation, and greaseable ball joints at the wheel end ensure smooth, quiet performance. Arms are finished in durable black powder coat with a billet aluminum dust cap.

Features

• Builds off factory suspension geometry for improved performance with straightforward installation
• Front FOX 3.0 Factory Race Series IBP coil-overs with simple DSC adjustment of compression settings
• Rear FOX 3.0 Factory Race Series IBP shocks for improved ride quality, performance, and capability
• BDS HD upper control arms for increased strength and suspension travel
• High misalignment angle, greaseable heavy-duty ball joints
• Durometer-specific rubber control arm bushings for long life and maintenance-free operation
• Anodized ball joint cap seals the top of the control arm ball joint cup from dirt and debris
• Rear lift block kit produces a level to slightly tail-high stance
• 1/4-inch wheel spacer included for use with the spare tire if needed
• Optional weld-on steering stops to improve tire clearance to fenders and control arms (dependent on wheel offset)
• Factory Protection Plus included

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 3.5 inches
• Rear Lift Method: Block
• Rear Lift Height: 1.5 inches
• Overall Lift Height: 2–3.5 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 3–4 hours
• Installation Difficulty: Moderate

Important Notes

• 5.5-inch maximum wheel backspacing can be used.
• Will NOT fit models equipped with Adaptive Ride Control (ARC).
• Will fit Trail Boss and AT4 models; however, will net approximately 1.5 inches of lift over factory ride height on those trims.
• This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
• Lifting of the bed is required for rear shock installation.
• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
