BDS 8 Inch Lift Kit | FOX 2.5 Coilover DSC | Chevy Silverado & GMC Sierra 1500 (2014-2018) 4WD | Aluminum / Stamped Steel Control Arms

This variant is designed for 2014–2018 Chevy Silverado and GMC Sierra 1500 trucks equipped with Aluminum or Stamped Steel factory control arms. Verify your factory control arm type before ordering by referencing the help images provided.

Overview

The BDS 8-inch lift kit for the 2014–2018 Chevy Silverado and GMC Sierra 1500 (4WD) is engineered to improve stance, performance, and off-road capability while providing clearance for up to 35-inch tires. The kit includes proprietary FOX 2.5 coilover shocks designed specifically to bolt on for increased travel, improved rough-terrain performance, and smooth on-road comfort. BDS's high-clearance design improves ground clearance and off-road protection while correcting suspension and steering geometry for proper on-road handling.

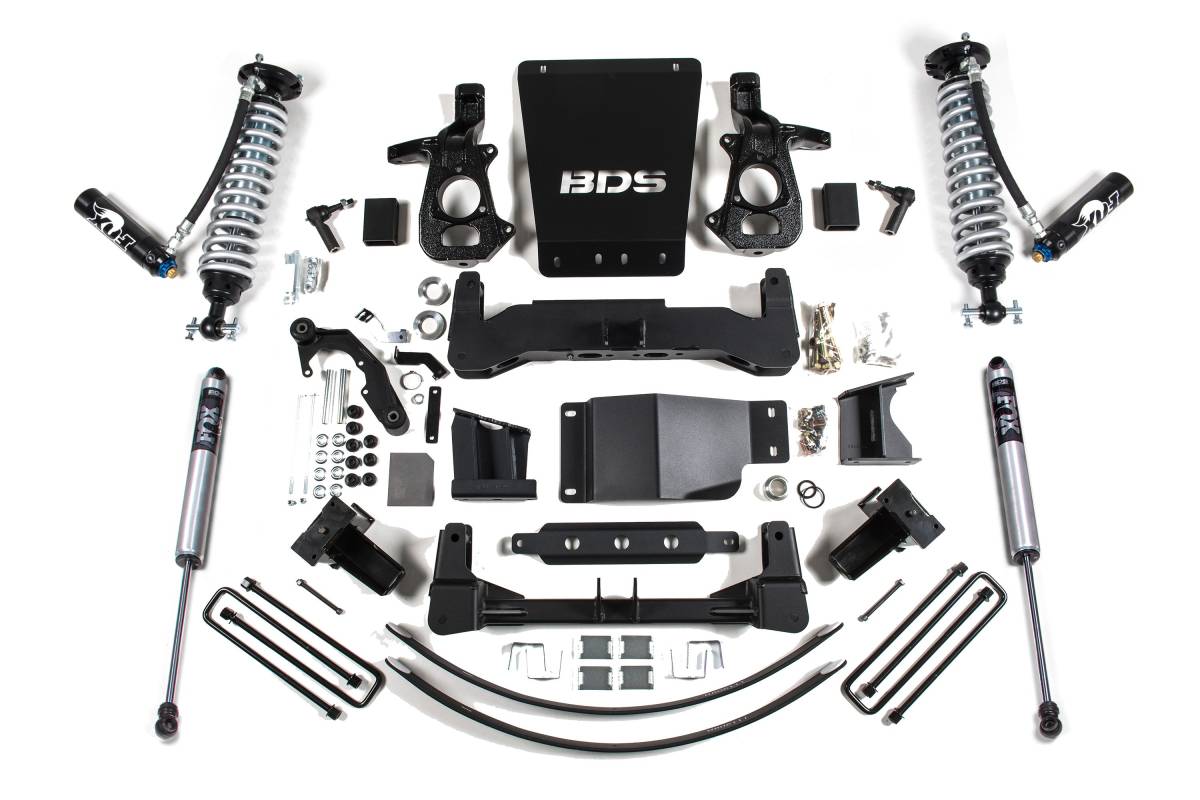

Up front, the kit features FOX 2.5 coilover shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, CNC-machined ductile iron steering knuckles, heavy-duty skid plates, sway bar drops, bump stop extensions, brake line brackets, and CV spacers. In the rear, the kit includes a replacement lift block and add-a-leaf combo or full Glide-Ride leaf spring options, new U-bolts, brake line brackets, and precision-tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

FOX 2.5 Coilovers with DSC

The included FOX 2.5 coilovers are tuned and ready to install out of the box. These 2.5-inch diameter coilovers feature a remote reservoir for additional fluid capacity to maintain consistent damping performance in demanding terrain. The DSC (Dual Speed Compression) adjustment allows independent tuning of high-speed and low-speed compression damping via two clearly labeled knobs, enabling on-road comfort and more aggressive off-road damping as needed.

Features

• FOX 2.5 Factory Race Series coilovers for improved ride quality, performance, and capability
• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
• Heavy-duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 8 inches
• Tire Clearance: Up to 35 inches
• Front Shocks: FOX 2.5 Coilover with DSC (Dual Speed Compression) and remote reservoir
• Rear Shocks: NX2 Nitro or FOX 2.0 Performance Series
• Crossmember Thickness: 1/4-inch thick laser-cut steel
• Steering Knuckles: CNC-machined ductile iron
• Rear Lift: Lift block / add-a-leaf combo or full Glide-Ride leaf spring options
• Compatible with 2014–2018 Chevy Silverado 1500 and GMC Sierra 1500 (4WD)

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult

Important Notes

• Requires frame bracket modification.
• Requires differential modification to clear electric power steering components.
• GM produced several knuckle/control arm configurations in 2014–2018 model trucks. Cast Steel control arm equipped models require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models require the "Aluminum Control Arm" kit. Verify factory control arm type before ordering by referencing the help images provided.
• Will not fit MagnaRide magnetic ride control equipped models.
• Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod end interference.
• All-wheel drive models require driveline modification.
