BDS 8 Inch Long Arm Lift Kit w/ FOX 2.5 Coil-Over Conversion | 2009-2013 Dodge RAM 2500 4WD Diesel | Leaf Spring Rear

This variant includes a Leaf Spring rear lift option for an alternative rear suspension configuration. Refer to the important notes below regarding rear axle tube measurement and dually/model-year fitment before ordering.

Overview

This 8-inch lift kit with long arm and FOX 2.5 coil-over conversion from BDS Suspension is designed for 2009–2013 Dodge RAM 2500 4WD diesel trucks. The kit improves stance, performance, and capability while providing clearance for up to 38-inch tires. BDS developed a mounting system that bolts directly to the factory coil mounts with only minor trimming and drilling required, along with weld-in reinforcements at the axle for superior strength.

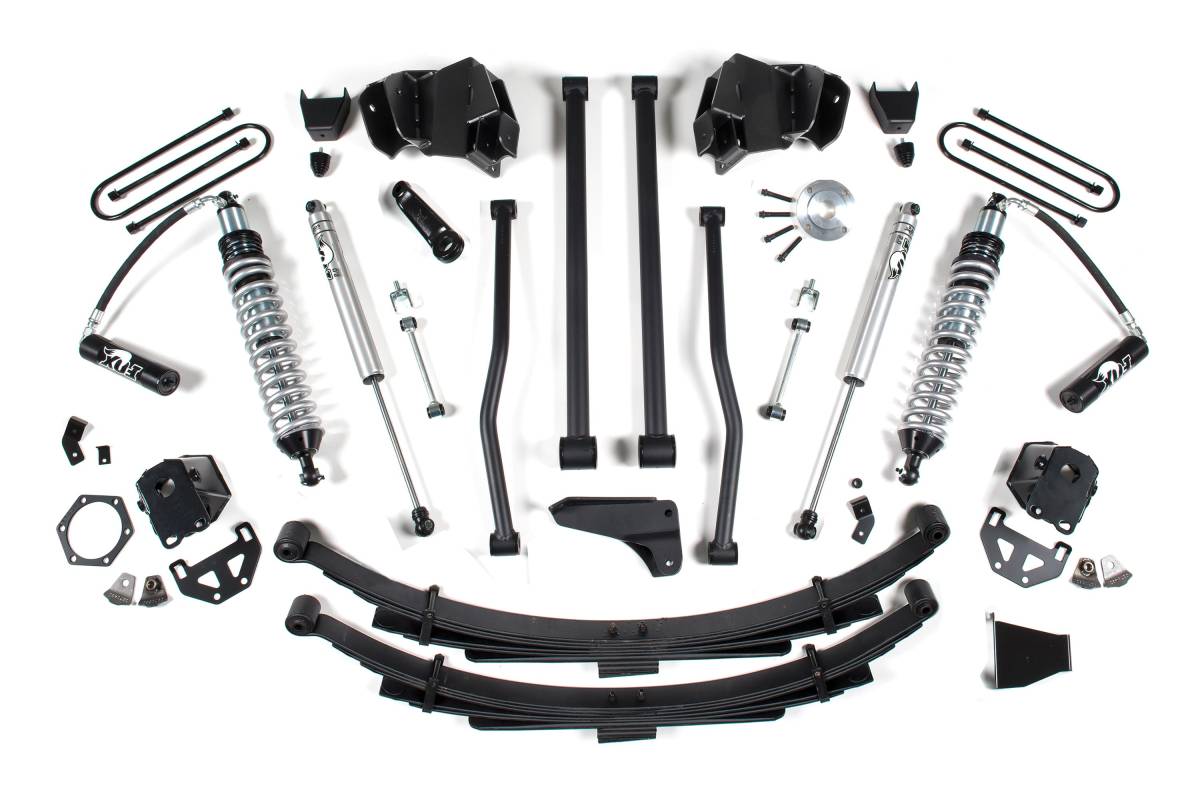

Up front, the kit includes FOX 2.5 coil-over shocks, all four control arms with mounting brackets, a forged drop pitman arm, track bar bracket for steering correction, bump stops, and sway bar links. The rear utilizes heavy-duty cast steel blocks, longer U-bolts, and a matching set of FOX 2.0 Performance shocks.

Features

• FOX 2.5 Factory Series coil-overs offer improved damper performance over stock
• Tubular long arms reduce caster change and create a more controlled feeling on and off road
• Heavy-duty control arm brackets maintain proper suspension geometry
• Front high-strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Rear FOX Performance Series IFP gas shocks for improved ride and off-road performance
• Long lower control arms built to reduce caster change through wheel travel
• Remote reservoir on FOX 2.5 coil-overs for additional fluid capacity to keep shocks running cool
• Oversized greaseable polyurethane bushings on heavy wall tubular lower arms for superior road vibration isolation
• Massive 1/4-inch steel frame-mounted brackets for long arm upper and lower formed arms
• Arms formed for maximum tire clearance; stock control arm tabs remain on the vehicle
• Retains factory triangulation of control arms for added suspension stability

Specifications

• Lift Height: 8 inches
• Fitment: 2009–2013 Dodge RAM 2500 4WD Diesel
• Front shocks: FOX 2.5 Factory Series Coil-Overs with remote reservoir (2.5-inch diameter)
• Rear shocks: FOX 2.0 Performance Series IFP gas shocks
• Long arm brackets: 1/4-inch steel, frame-mounted
• Maximum tire clearance: up to 38 inches
• Rear lift blocks (Block Kit variant): cast iron, tapered for correct pinion angle, offset steel pin

Installation

• Estimated Time: 8–10 hours
• Difficulty: Moderate
• Tools Required: Cut-Off Wheel or Equivalent, Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment

Important Notes

• Measure rear axle tube before ordering. Some 4-inch axle models with dual overloads will require UBT4068.
• Rear lift options will not fit dually applications.
• If driveline vibration occurs, order either transfer case drop. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA.
• 102009 Rear brake lines will not fit 2012–2013 models.
• Additional front driveline modification may be required.
• Exhaust modification will be required for dual rear shock kit 122009.
• 2500 Gas models will require modification to the front exhaust crossover pipe on the driver side for proper clearance when a transfer case indexing ring kit is installed.
