BDS 4 Inch Lift Kit | 2006-2008 Dodge Ram 1500 4WD | w/ NX2 Nitro Series Rear Shocks

Configured with NX2 Nitro Series rear shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

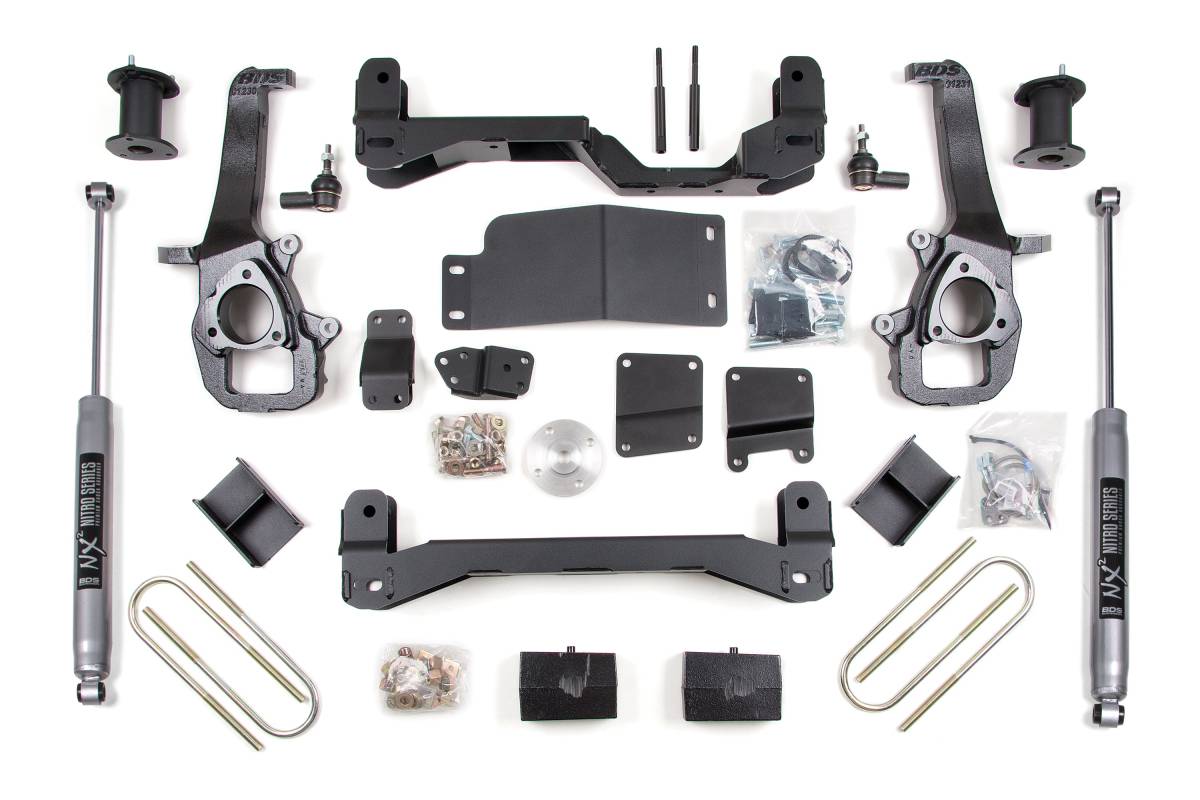

This BDS Suspension 4-inch suspension lift kit is designed for 2006-2008 Dodge Ram 1500 4WD trucks to improve stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates for off-road protection. Steering geometry is corrected at the new ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining ESC system compatibility. Additional front components include sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, and all required hardware. The rear of the kit uses heavy duty cast steel lift blocks, brake line brackets, and longer U-bolts, paired with a choice of specially tuned rear shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
• Heavy duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Choice of BDS NX2 Nitro gas shocks or FOX 2.0 Performance Series IFP gas shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Front: Top-mounted strut spacers, 1/4-inch thick laser-cut high-clearance steel crossmembers, multipiece differential relocation brackets, HD skid plates, CNC-machined ductile iron steering knuckles, replacement tie rod ends, sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers
• Rear: Heavy duty cast steel lift blocks, brake line bracket, longer U-bolts
• FMVSS No. 126 Compliant

Installation

• Estimated Time: 10 hours
• Difficulty: Moderate
• Special Tools Required: Reciprocating Saw, Strut Compressor

Important Notes

• Will not fit Mega-Cab models.
• The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• TRX models require the removal of OE lower skid plate.
• Stock 17-inch wheels cannot be re-installed.
• Stock 20-inch wheels can be reinstalled with stock tires.
• This kit is FMVSS No. 126 Compliant.
