BDS 4 Inch Lift Kit | 2007-2011 Jeep Wrangler JK 2-Door | FOX 2.0 Performance Series Shocks w/ Disconnects

Configured with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish. Includes sway bar quick disconnects.

Overview

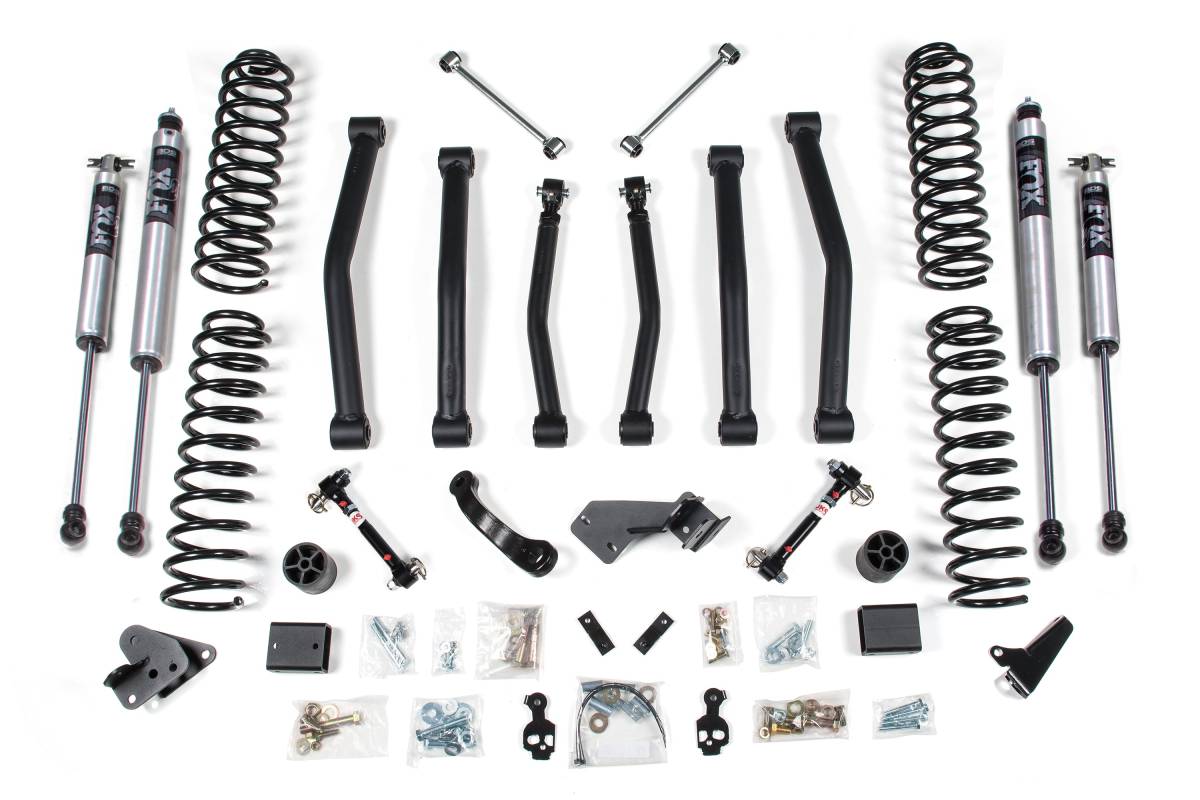

This 4-inch lift kit from BDS Suspension is designed for the 2007–2011 Jeep Wrangler JK 2-Door, improving stance and providing clearance for up to 37-inch tires. Up front, the kit includes 4-inch Pro-Ride coil springs capable of full coil bind and 3-inch bump stop extensions to control compression travel while increasing wheel travel. Also included are brake line brackets, sway bar links, a front track bar relocation bracket, and a forged drop pitman arm to improve steering and handling geometry. Fixed-length lower control arms with OE-grade rubber bushings re-position the front axle for proper alignment. In the rear, Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket correct axle shift. Fixed-length rear lower control arms and adjustable rear upper arms maintain proper rear axle position and pinion angle.

Features

• Pro-Ride coil springs offer improved ride quality and more articulation
• Sway bar quick disconnects and extended rear link for improved off-road flex
• New control arms to properly control front and rear axle positions
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 Nitro Series gas or FOX 2.0 IFP Performance Series gas shocks for improved damping
• Provides clearance for up to 37-inch tires
• Forged drop pitman arm minimizes steering angle after lift
• Heavy-duty track bar drop bracket keeps steering geometry in phase through suspension travel
• Pro-Ride coil springs manufactured from high tensile steel with properly sized wire diameter for maximum reliability

Specifications

• Lift Height: 4 inches
• Front springs: 4-inch Pro-Ride progressive rate coil springs, full-length, gas-specific
• Bump stop extensions: 3 inches
• Front lower control arms: Fixed length with OE-grade rubber bushings
• Rear upper control arms: Adjustable
• Rear lower control arms: Fixed length
• Tire clearance: Up to 37 inches
• Includes: Brake line brackets, sway bar links, front and rear track bar relocation brackets, pitman arm

Installation

• Estimated Time: 8 hours
• Difficulty: Moderately Easy
• Tools Required: Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• Will not fit 2WD models.
• The fixed front and rear lower control arms can be upgraded to flex or adjustable arms listed in the accessories.
• The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan. Replacement of the front driveshaft is recommended.
• Exhaust modification may be required.
• This kit is FMVSS No. 126 Compliant.
