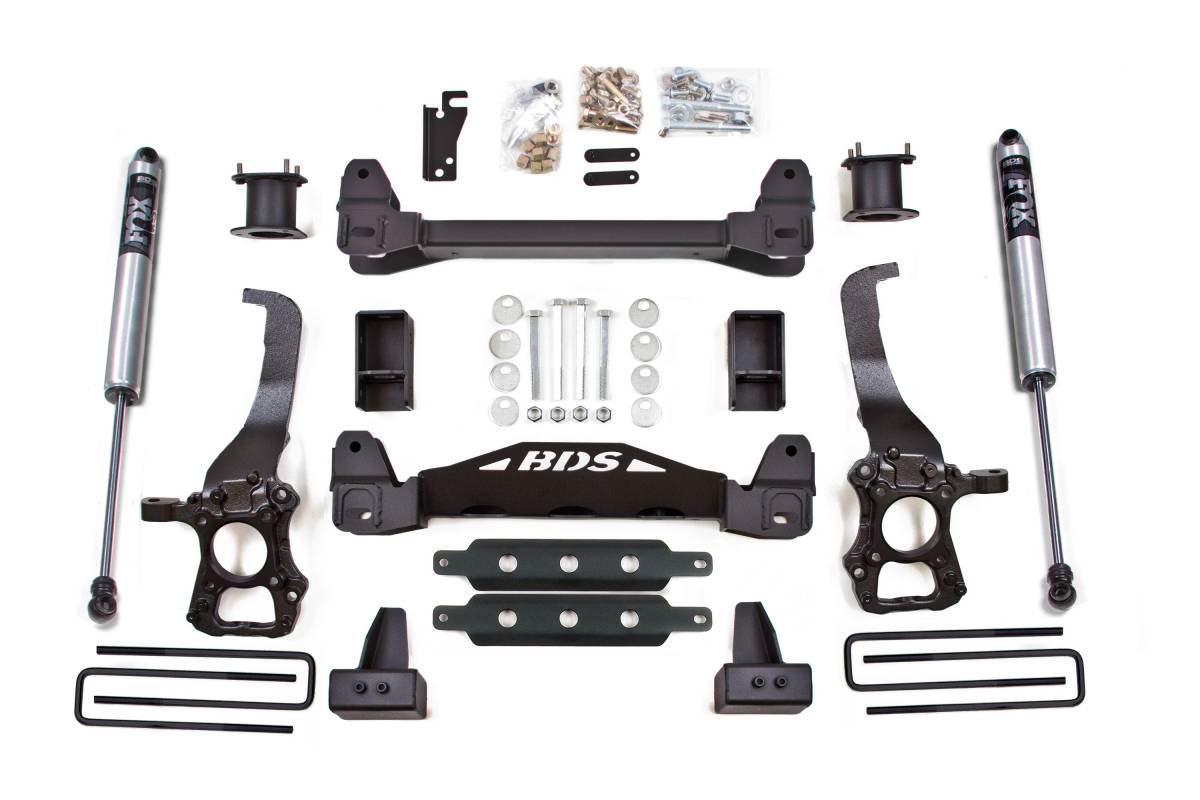

BDS 4 Inch Lift Kit | 2009-2013 Ford F150 2WD | w/ FOX 2.0 Performance Series Rear Shocks

Configured with FOX 2.0 Performance Series rear shocks. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body with an internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 4-inch suspension lift kit from BDS Suspension is designed for 2009–2013 Ford F150 2WD trucks, improving stance, performance, and off-road capability while providing clearance for up to 35-inch tires. The kit uses a high-clearance design to improve ground clearance and off-road protection while correcting suspension and steering geometry to maintain proper on-road handling.

Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers, a steel top mount strut spacer, and a skid plate for off-road protection. Steering geometry is corrected at the new ride height with a pair of CNC-machined ductile iron steering knuckles, sway bar relocation brackets, brake line brackets, and alignment cam bolts. In the rear, high-strength cast steel lift blocks and longer u-bolts lift and level the stance, paired with your choice of rear shocks.

Features

• High clearance crossmembers improve strength and off-road capability
• Heavy duty CNC-machined ductile iron steering knuckles correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better ride control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Specifications

• Lift Height: 4 inches
• Crossmember material: 1/4-inch thick laser cut steel
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift method: Cast steel lift blocks and longer u-bolts
• Tire clearance: Up to 35 inches

Installation

• Estimated Time: 10 hours
• Difficulty: Difficult

Important Notes

• 18-inch or larger diameter wheels required. Stock 17-inch & 18-inch wheels cannot be reinstalled. Stock 20-inch wheels can be used with up to 305/60-20 tires.
• E-brake bracket required for factory powersteps (part #123018).
• For a level to tail low appearance, use #023415 with Kit #599H.
• Block kits replace factory 1-1/4-inch block.
• Early 2009 models may require brake assembly modification.
• Will not fit HD models (7 lug).
• Vehicles equipped with a 2-piece rear driveshaft may require carrier bearing drop kit #122406.
• This kit is FMVSS No. 126 Compliant.
