Configured with NX2 Nitro Series rear shocks, featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish. Vehicle-specific valving provides better on- and off-road control.
Overview

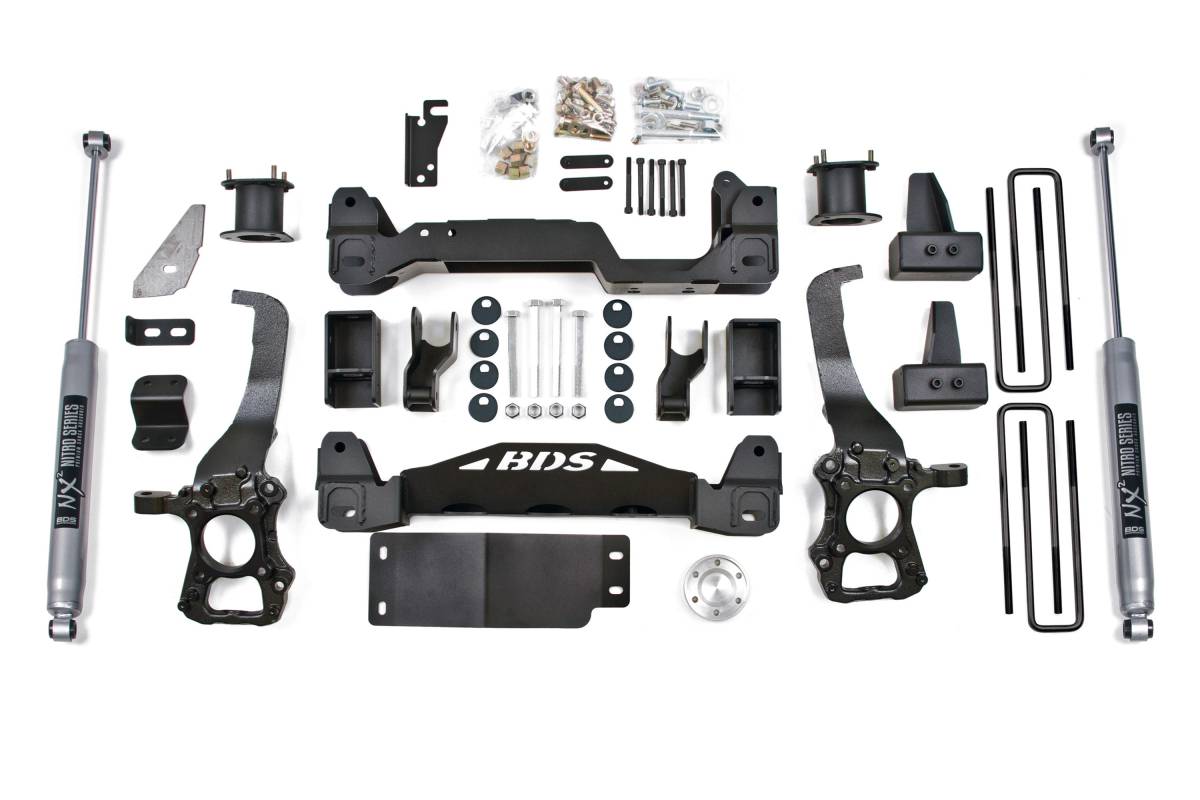

BDS raises the bar for performance and capability of 2009-2013 Ford F150 4WD trucks with this 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to install the lift correctly and provides clearance for up to 35-inch tires. The kit takes advantage of BDS's high-clearance design for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for proper on-road handling.
Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers, top-mounted strut spacers, multi-piece differential relocation brackets, and a skid plate for off-road protection. Steering geometry is corrected at the new ride height with a pair of CNC-machined ductile iron steering knuckles. Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware are included. In the rear, high-strength cast steel lift blocks and longer U-bolts lift and level the stance, paired with your choice of NX2 Nitro or FOX 2.0 Performance Series shocks.
Features
- High-clearance crossmembers improve strength and off-road capability
- Heavy-duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
- Top-mounted strut spacers provide lift and install easily
- Differential skid plate for improved off-road protection
- Rear lift blocks and U-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance
Specifications
- Lift Height: 4 inches
- Front: 1/4-inch thick laser-cut high-clearance steel crossmembers
- Front: Top-mounted strut spacers
- Front: Multi-piece differential relocation brackets and skid plate
- Front: CNC-machined ductile cast iron steering knuckles
- Rear: High-strength cast steel lift blocks and longer U-bolts
- Tire Clearance: Up to 35-inch tires
- Compatible with EcoBoost models
- FMVSS No. 126 Compliant
Installation
- Estimated Installation Time: 10 hours
- Difficulty: Difficult
Important Notes
- Requires frame bracket modification and welding.
- 18-inch or larger diameter wheels required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
- Stock 20-inch wheels can be used with up to 305/60-20 tires.
- E-brake bracket required for factory power steps (part #123018).
- For a level to tail-low appearance, use #023415 with Kit #598H.
- Block kits replace factory 1-1/4-inch block.
- Will fit EcoBoost models.
- Models equipped with AWD/Auto 4WD may require front driveshaft replacement.
- Will not fit HD models (7-lug).
- This kit is FMVSS No. 126 Compliant.
