BDS 6 Inch Lift Kit | 1983-1997 Ford Ranger 4WD | Pro-Ride Coil Springs & NX2 Nitro Shocks

Overview

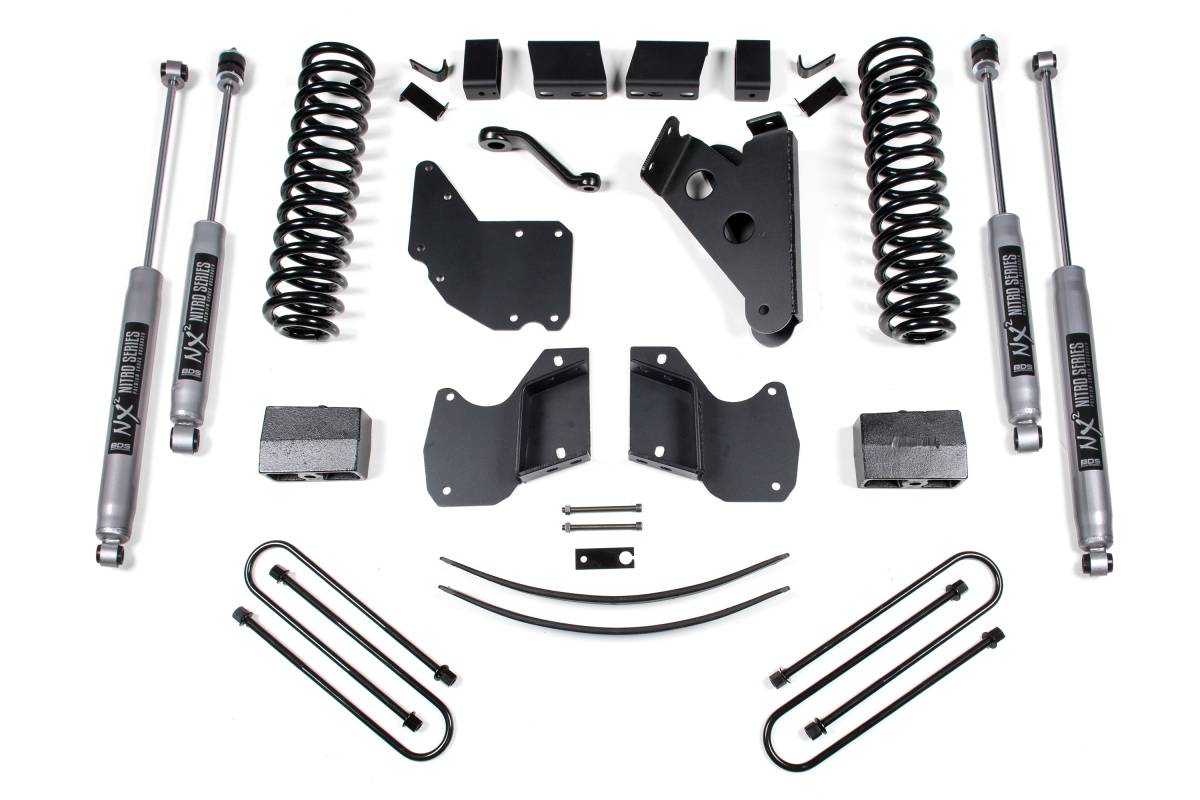

Improve the ride and stance of your 1983–1997 Ford Ranger 4WD with this 6-inch suspension lift kit from BDS Suspension. Designed to improve stance, performance, and off-road capability, this kit includes everything needed to properly lift your truck and provide clearance for up to 33-inch tires. Up front, the kit features Pro-Ride coil springs, heavy-duty axle pivot brackets, radius arm drop brackets, a forged pitman arm for steering correction, bump stop extensions, and precision-tuned NX2 nitrogen-charged shocks. The rear utilizes a high-strength lift block, longer U-bolts, and a matching set of NX2 Nitro shocks.

Features

• Easy, bolt-on installation
• Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
• Heavy-duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide a level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for improved control

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 6"
• Rear Lift Method: Block
• Rear Lift Height: 5.5"
• Overall Lift Height: 6"–7.5"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 6 hours
• Installation Difficulty: Moderate

Important Notes

• Ball joint alignment cam will be required for alignment; these are available in the options section or from your local alignment shop.
• Extra cab models may not achieve the stated lift height.
• Models equipped with a 2-piece driveshaft will require the carrier bearing crossmember to be lowered.
• Bronco II 1985–90 models with a CV joint-type driveshaft must be converted to an exposed joint shaft.
• Vehicles equipped with the factory STX package will not achieve the stated lift height.
• The dual steering stabilizer listed in the accessories will not fit applications with a factory front sway bar.
