BDS 4 Inch Lift Kit | 1982-1986 Jeep CJ5/CJ7 | w/ FOX 2.0 Performance Series Shocks

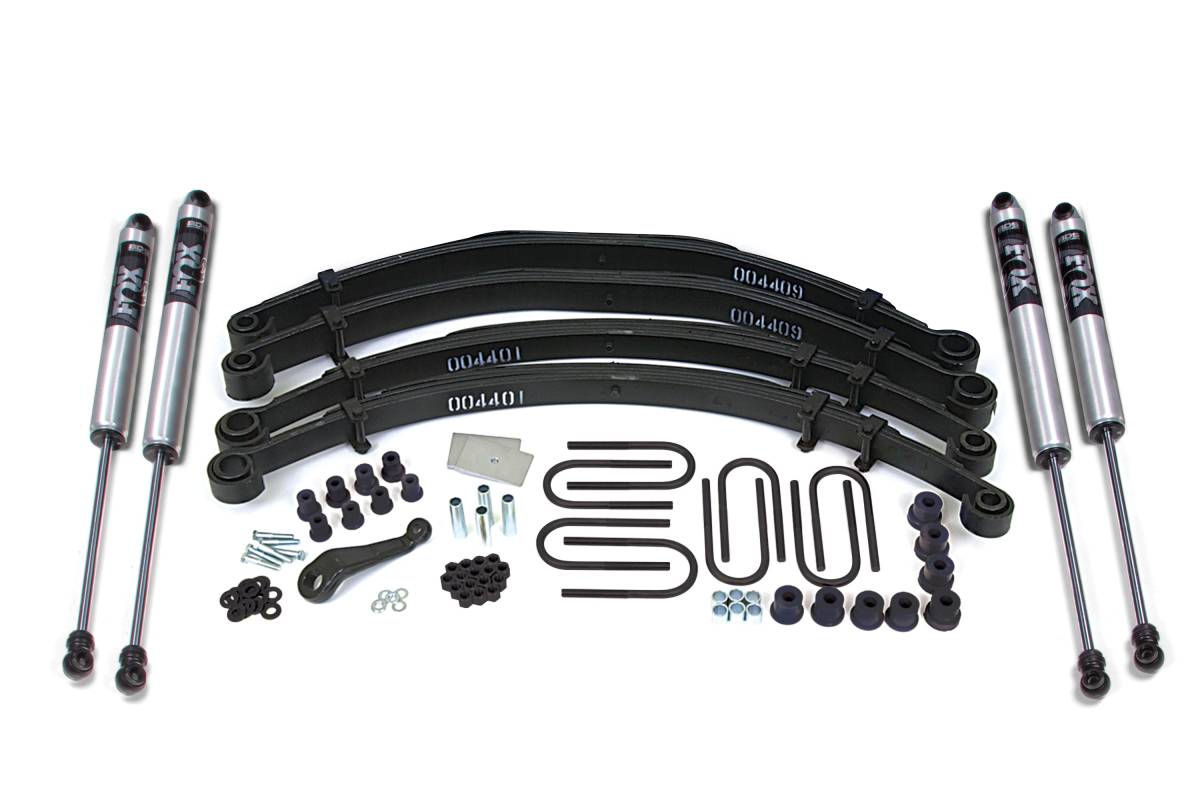

Configured with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

BDS Suspension engineered this 4-inch lift kit specifically for 1982–1986 Jeep CJ5 and CJ7 to improve stance, performance, and off-road capability. The kit includes everything needed to complete the installation and provides clearance for up to 33-inch tires. Included components consist of front and rear Glide-Ride leaf springs with new U-bolts, a steering pitman arm, and a transfer case drop. Your choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks rounds out the kit with specially tuned damper performance.

Glide-Ride Leaf Springs

BDS Glide-Ride leaf springs use a multi-leaf progressive spring rate design with an exclusive triple-stage construction. Features include tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, and a full military wrap to protect spring eyes. These springs provide a smooth ride under varying loads and deliver flexibility throughout the full suspension cycle.

Features

• 100% bolt-on installation
• Glide-Ride leaf springs for full lift height and increased load capacity
• Front and rear leaf springs with new U-bolts
• Steering pitman arm included
• Transfer case drop included
• Vehicle-specific shock valving for improved damper control
• Clearance for up to 33-inch tires

Specifications

• Lift Height: 4 inches
• Compatible Vehicles: 1982–1986 Jeep CJ5, CJ7
• Shock options: NX2 Nitro Series or FOX 2.0 Performance Series (selected at time of purchase)

Installation

• Estimated Installation Time: 6 hours
• Installation Difficulty: Moderate

Important Notes

• Vehicles equipped with the optional Dana 44 axle will require 040005 (Qty. 4) U-bolts listed in the accessories.
• If your vehicle is equipped with manual steering, you can buy the kit without the PS pitman arm, but BDS Suspension does not offer a manual steering pitman arm. You will need to acquire this from another source.
• If your vehicle is equipped with an anti-sway bar, a sway bar extension kit (available in the accessories section) will be necessary for your sway bar to function properly.
• If your CJ is heavy in the rear (i.e. hard top with full size spare), consider the 114208 add-a-leaf kit in the options to stiffen up the rear leaf springs and reduce the possibility of low rear ride height. This is recommended for all CJ8 Scramblers.
• Shackle bushing kit 074002 listed in the accessories is highly recommended.
• Extended brake lines recommended.
