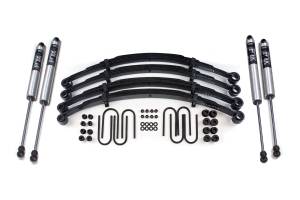

BDS 2.5 Inch Lift Kit | 1982-1986 Jeep CJ5/CJ7 | w/ FOX 2.0 Performance Series Shocks

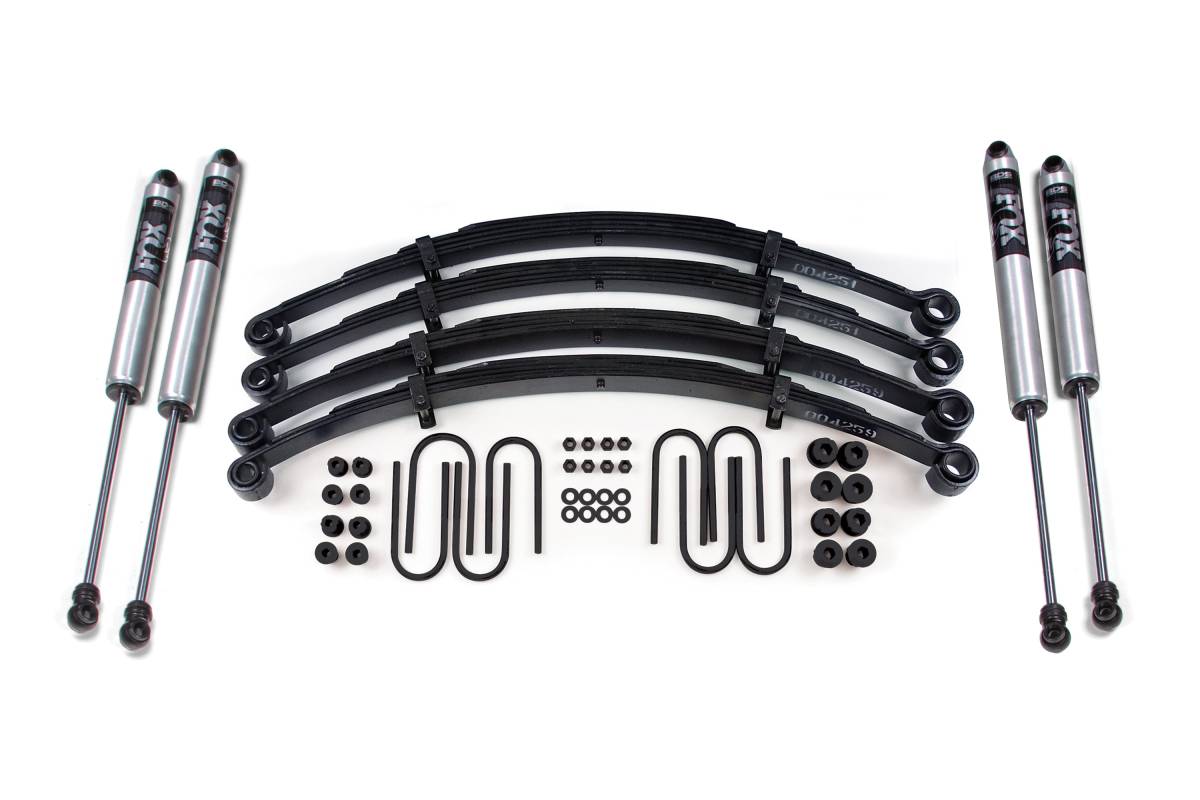

Configured with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving for maximum performance, and a long-lasting clear anodized finish.

Overview

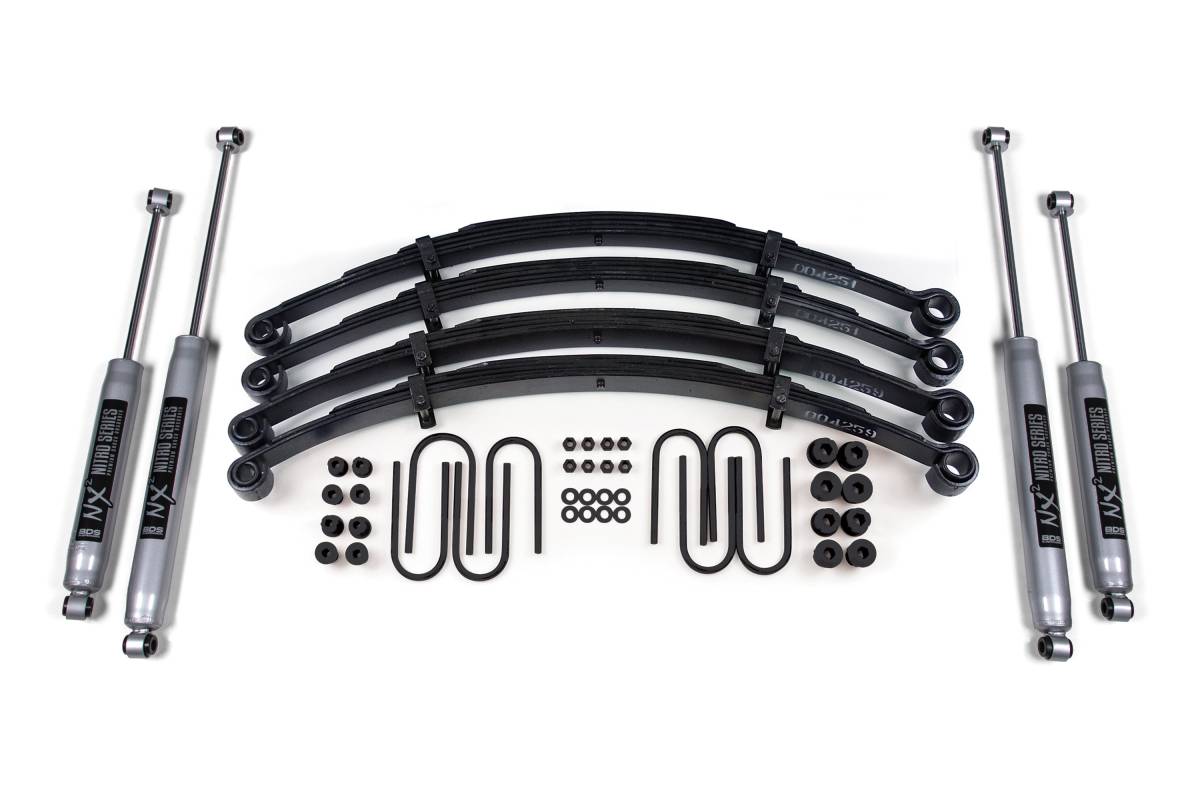

BDS Suspension has designed this 2.5-inch lift kit for the 1982–1986 Jeep CJ5 and CJ7. This kit includes everything necessary to set your Jeep up with clearance for up to 31-inch tires. It features front and rear Glide-Ride leaf springs with new U-bolts, and your choice of specially tuned NX2 Nitro Series gas shocks or FOX 2.0 IFP Performance Series gas shocks for improved damper performance.

BDS engineered the Glide-Ride leaf springs with a multi-leaf progressive spring rate design using an exclusive triple-stage construction. These springs feature tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, and a full military wrap to protect spring eyes. The result is a smooth ride under any load with flexibility throughout the suspension cycle.

Features

• 100% bolt-on installation
• Glide-Ride leaf springs provide full lift height and increased load capacity
• Multi-leaf progressive spring rate design with triple-stage construction
• Tapered leafs with anti-friction pads
• Bolt-style leaf alignment clamps
• Full military wrap to protect spring eyes
• New U-bolts included
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks with vehicle-specific valving

Specifications

• Lift Height: 2.5 inches
• Tire Clearance: Up to 31 inches
• Includes: Front and rear Glide-Ride leaf springs, U-bolts, and shocks
• Compatible Vehicles: 1982–1986 Jeep CJ5 and CJ7

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: Torque Wrench, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• Vehicles equipped with the optional Dana 44 axle will require U-bolt UBT4005 (Qty. 4) listed in the accessories.
• Shackle bushing kit 074002 listed in the accessories is highly recommended.
