BDS 4 Inch Lift Kit w/ Radius Arms | 1980-1996 Ford Bronco 4WD | Block Kit

This configuration includes a cast iron lift block kit for the rear. Blocks are tapered for correct pinion angle, with an offset steel pin and hole to restore axle position. Includes new center pins for a secure, level stance.

Overview

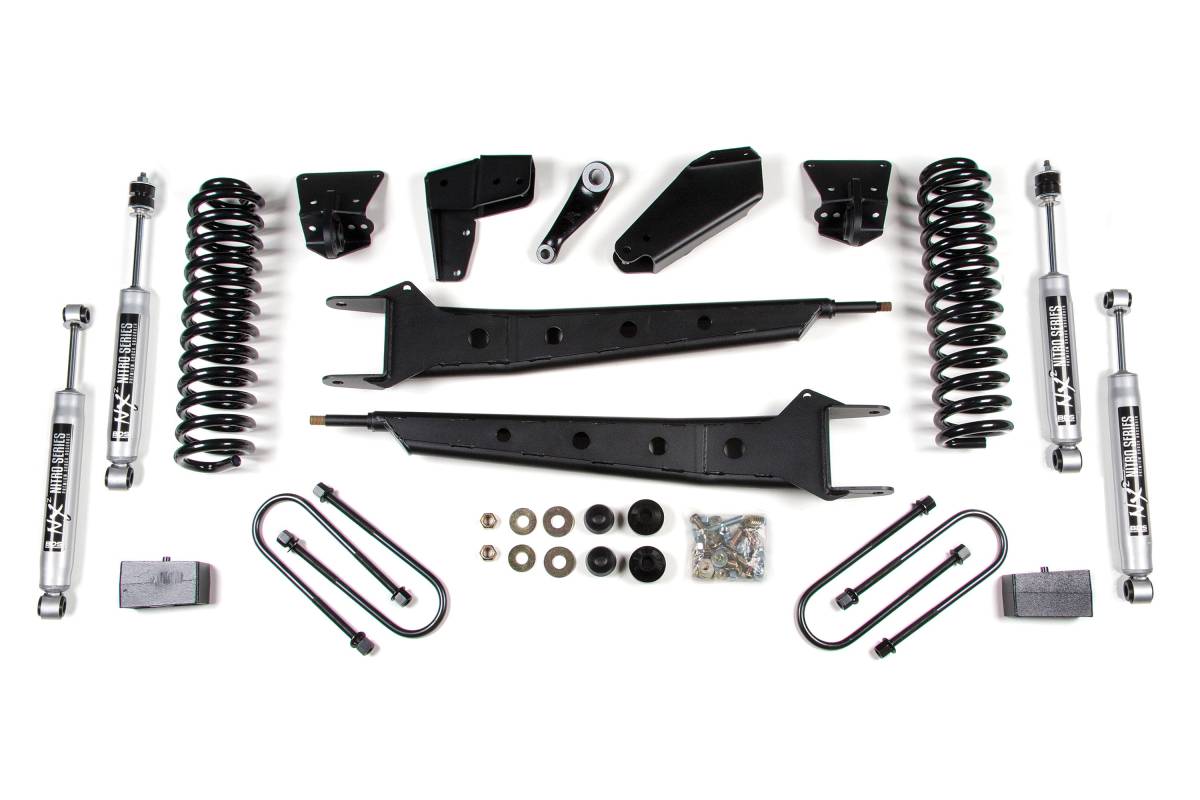

This 4-inch suspension lift kit with extended radius arms is designed for 1980–1996 Ford Bronco full-size 4WD trucks. The kit improves stance, performance, and off-road capability, providing clearance for up to 33-inch tires. Up front, the kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended tubular radius arms, radius arm drop mounts, a forged pitman arm for steering correction, and precision-tuned NX2 nitrogen charged shocks. In the rear, the kit utilizes a high-strength lift block, longer U-bolts, and a matching set of NX2 Nitro shocks. The rear configuration varies by selected option.

Features

• Bolt-on installation
• Pro-Ride dual-rate coil springs for smooth performance across various terrains
• Extended high-strength tubular radius arms reduce caster change through wheel travel for improved steering control on and off road
• Heavy-duty steel drop brackets for proper suspension geometry
• Forged pitman arm for steering correction
• NX2 Nitro shocks with vehicle-specific valving for improved control
• Cast steel rear blocks provide a level stance from front to rear

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 33 inches
• Front: Pro-Ride coil springs, extended tubular radius arms, radius arm drop mounts, axle pivot relocation brackets, forged pitman arm, NX2 Nitro shocks
• Rear: High-strength lift block, longer U-bolts, NX2 Nitro shocks (rear lift configuration varies by selected option)
• Compatible with: 1980–1996 Ford Bronco Full Size 4WD

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: Air Hammer (Recommended), Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• If your vehicle is equipped with a front anti-sway bar, you will need part #123401, available in the options.
• Does not fit Broncos without power steering.
• Front alignment cams (available in accessories) may be required for alignment.
• Extended brake lines are required for all 4–6 inch lift systems.
