BDS 4 Inch Lift Kit w/ Radius Arms | 1980-1996 Ford Bronco 4WD | Block Kit & Add-A-Leaf

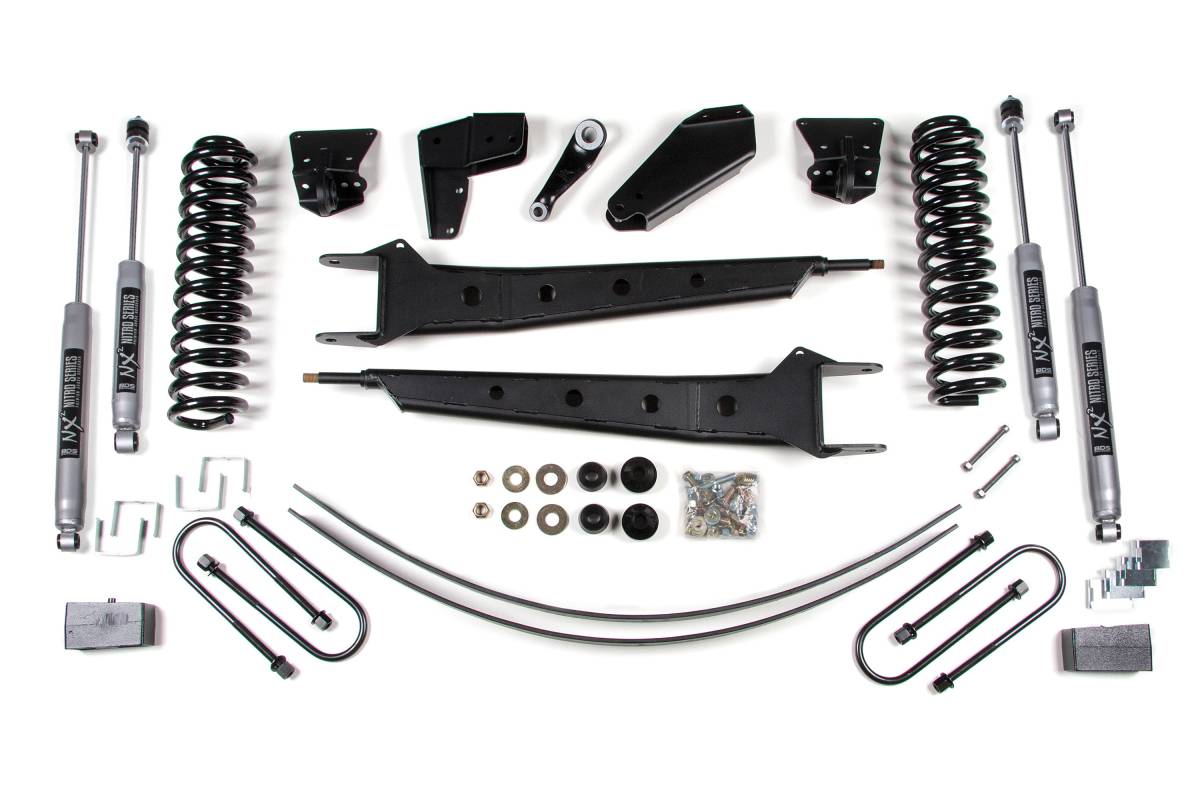

This configuration includes a cast iron lift block kit plus an Add-A-Leaf for the rear. The add-a-leaf helps freshen up old, worn-out factory leaf springs while the cast iron block provides maximum strength with correct pinion angle. Includes new center pins.

Overview

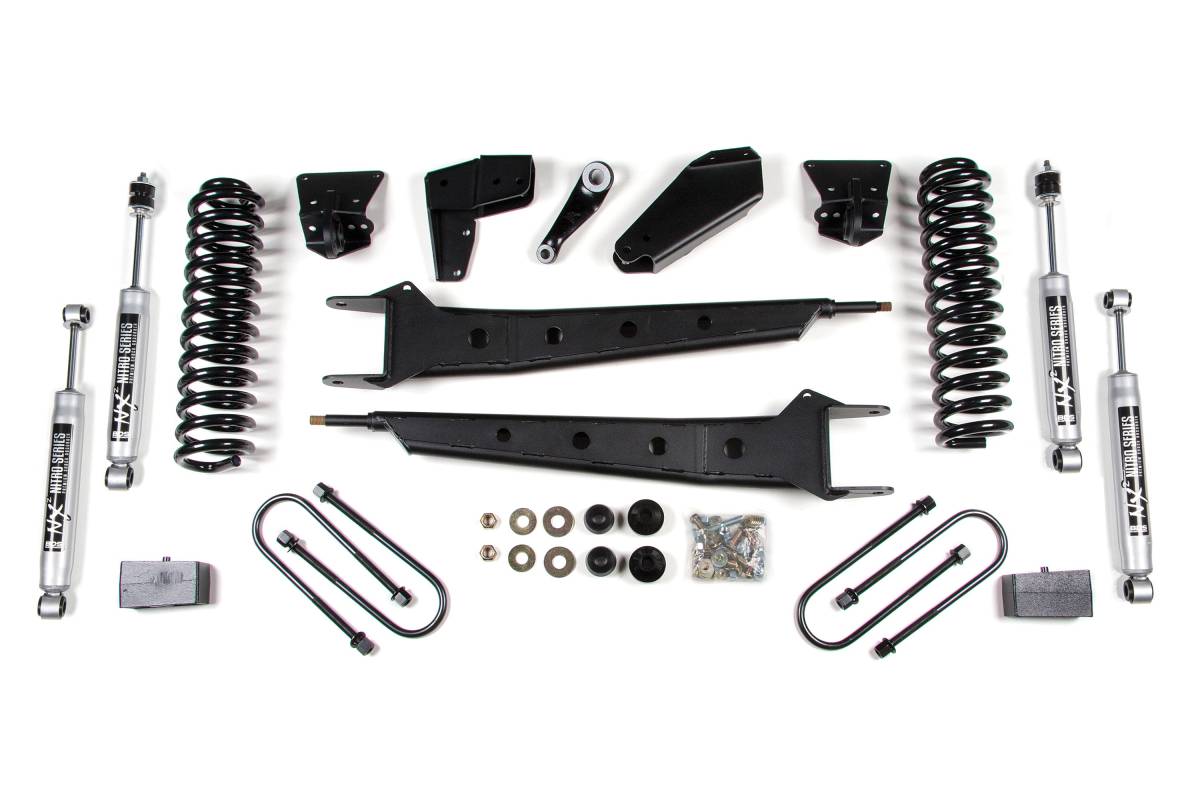

This 4-inch suspension lift kit with extended radius arms is designed for 1980–1996 Ford Bronco full-size 4WD trucks. The kit improves stance, performance, and off-road capability, providing clearance for up to 33-inch tires. Up front, the kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended tubular radius arms, radius arm drop mounts, a forged pitman arm for steering correction, and precision-tuned NX2 nitrogen charged shocks. In the rear, the kit utilizes a high-strength lift block, longer U-bolts, and a matching set of NX2 Nitro shocks. The rear configuration varies by selected option.

Features

• Bolt-on installation
• Pro-Ride dual-rate coil springs for smooth performance across various terrains
• Extended high-strength tubular radius arms reduce caster change through wheel travel for improved steering control on and off road
• Heavy-duty steel drop brackets for proper suspension geometry
• Forged pitman arm for steering correction
• NX2 Nitro shocks with vehicle-specific valving for improved control
• Cast steel rear blocks provide a level stance from front to rear

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 33 inches
• Front: Pro-Ride coil springs, extended tubular radius arms, radius arm drop mounts, axle pivot relocation brackets, forged pitman arm, NX2 Nitro shocks
• Rear: High-strength lift block, longer U-bolts, NX2 Nitro shocks (rear lift configuration varies by selected option)
• Compatible with: 1980–1996 Ford Bronco Full Size 4WD

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: Air Hammer (Recommended), Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• If your vehicle is equipped with a front anti-sway bar, you will need part #123401, available in the options.
• Does not fit Broncos without power steering.
• Front alignment cams (available in accessories) may be required for alignment.
• Extended brake lines are required for all 4–6 inch lift systems.
