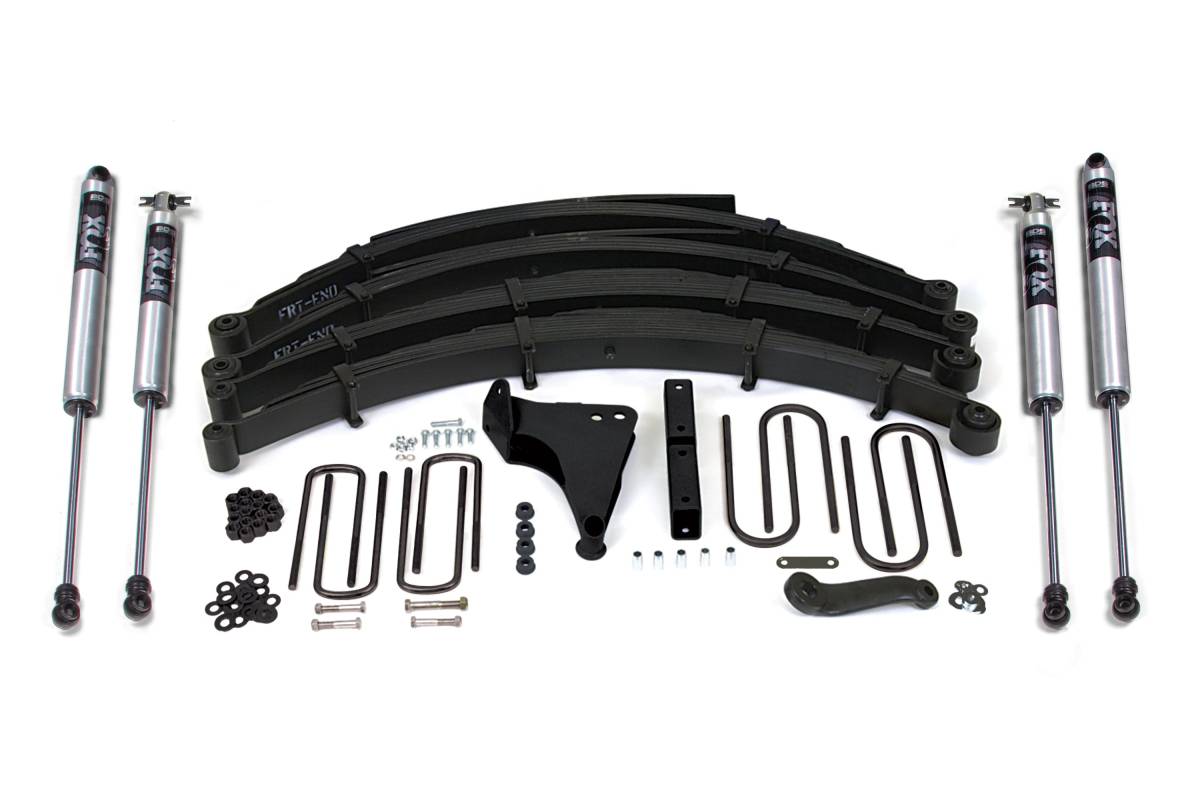

BDS 8 Inch Lift Kit | 1999-2004 Ford F250/F350 Super Duty 4WD | Square U-Bolt | FOX 2.0 Performance Series

Configured for vehicles with Square front U-bolts (typically 1999–2000 model year production). Verify your specific vehicle's production date and U-bolt style before ordering. Equipped with FOX 2.0 Performance Series shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 8-inch lift kit from BDS Suspension is designed for 1999–2004 Ford F250 and F350 Super Duty 4WD trucks, providing improved stance, performance, and capability with clearance for up to 38-inch tires. Up front, the kit includes Glide-Ride leaf springs, a forged drop pitman arm, a track bar bracket for steering correction, sway bar links, bump stop brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes replacement Glide-Ride full leaf spring packs, U-bolts, and a matching set of shocks.

BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design using an exclusive triple-stage configuration, providing a smooth ride under any load, reducing axle wrap, and improving flexibility throughout the suspension cycle. A forged drop pitman arm and heavy-duty track bar drop bracket optimize steering geometry once lifted, keeping components in phase through suspension travel and recentering the front axle.

Features

• 100% bolt-on installation
• Glide-Ride leaf springs provide full lift height and increased load capacity with a progressive multi-leaf triple-stage design
• Reduces axle wrap and improves suspension flexibility throughout travel
• Track bar relocation bracket and drop pitman arm maintain proper steering angles for improved handling
• Cast steel blocks provide a level stance from front to rear

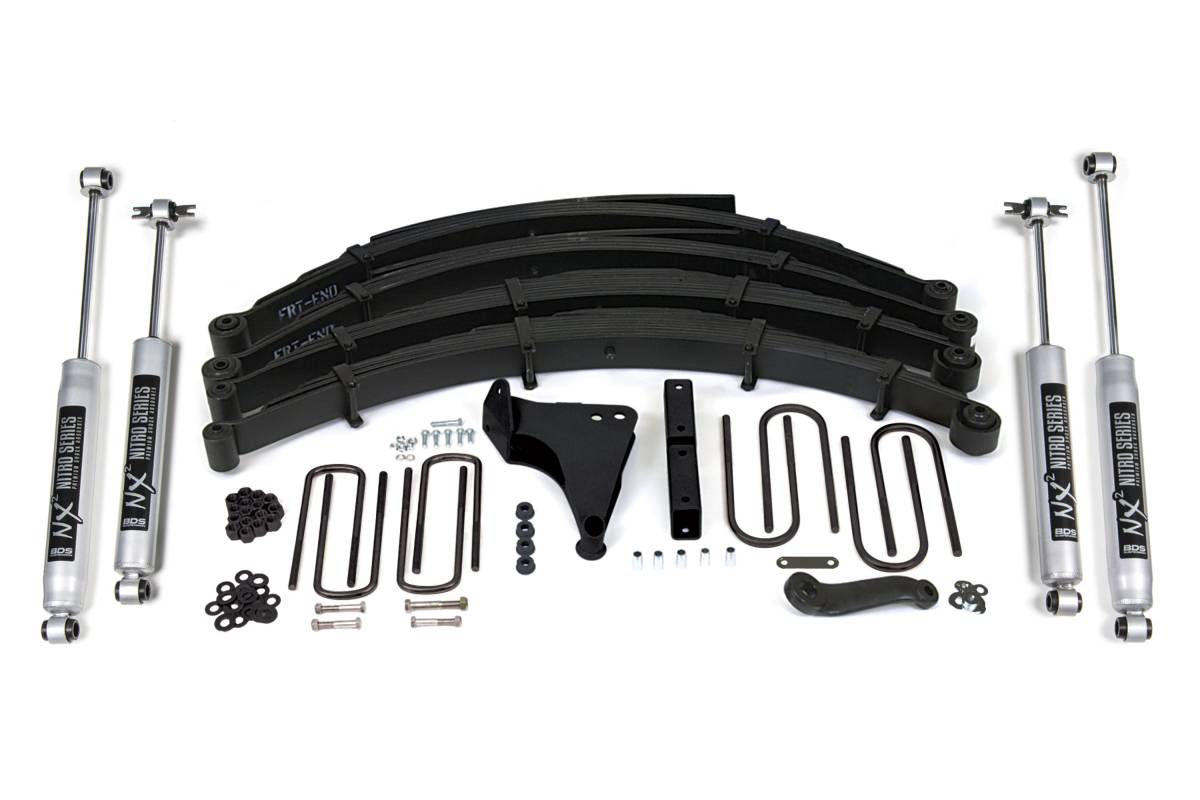

• Standard NX2 Nitro shocks with vehicle-specific valving
• Optional upgrade to FOX 2.0 Performance Series shocks for enhanced on- and off-road performance

Specifications

• Lift Height: 8 inches
• Tire Clearance: Up to 38 inches
• Front: Glide-Ride leaf springs, forged drop pitman arm, track bar bracket, sway bar links, bump stop brackets
• Rear: Glide-Ride full replacement leaf spring packs, U-bolts
• Shock options: NX2 Nitro Series or FOX 2.0 Performance Series
• Compatible with square or radius front U-bolt configurations (verify before ordering)

Installation

• Estimated Time: 10 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller

Important Notes

• These trucks were manufactured with two different style front U-bolts. You will need to know if your front leaf spring U-bolts are square or are halfway between round and square with a gentle radius around the OE cast U-bolt plate before ordering.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Super Duty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle, it may be necessary to change the rear OE block.
• Will not fit dually applications.
• If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit available in the options section.
• The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.
