BDS 4 Inch Lift Kit | 1980-1996 Ford F350 Monobeam 4WD | w/ NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks front and rear, featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish — tuned specifically for this vehicle application.

Overview

This 4-inch lift kit from BDS Suspension is designed for 1980–1996 Ford F350 Monobeam 4WD trucks with a front solid axle suspension. The kit includes everything necessary to improve stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit features Glide-Ride leaf springs, a forged drop pitman arm, and a track bar bracket for steering correction, paired with precision-tuned nitrogen-charged shocks. In the rear, a high-strength lift block, longer U-bolts, and a matching set of shocks complete the system.

Glide-Ride Leaf Springs

BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design using an exclusive triple-stage construction. This provides a smooth ride under any load while delivering flexibility throughout the full suspension cycle.

Features

• 100% bolt-on installation
• Glide-Ride leaf springs provide full lift height and increased load capacity
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Cast steel blocks provide a level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 4 inches
• Compatible with up to 35-inch tires

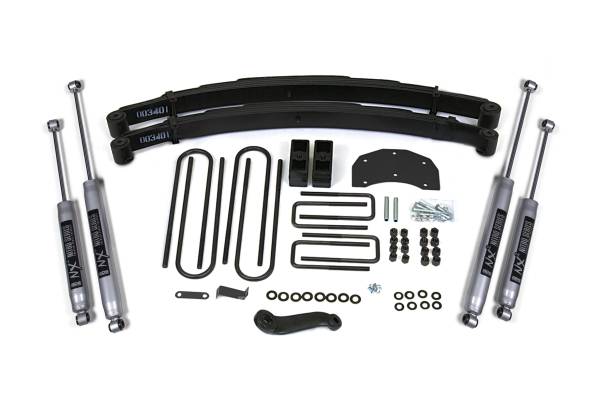

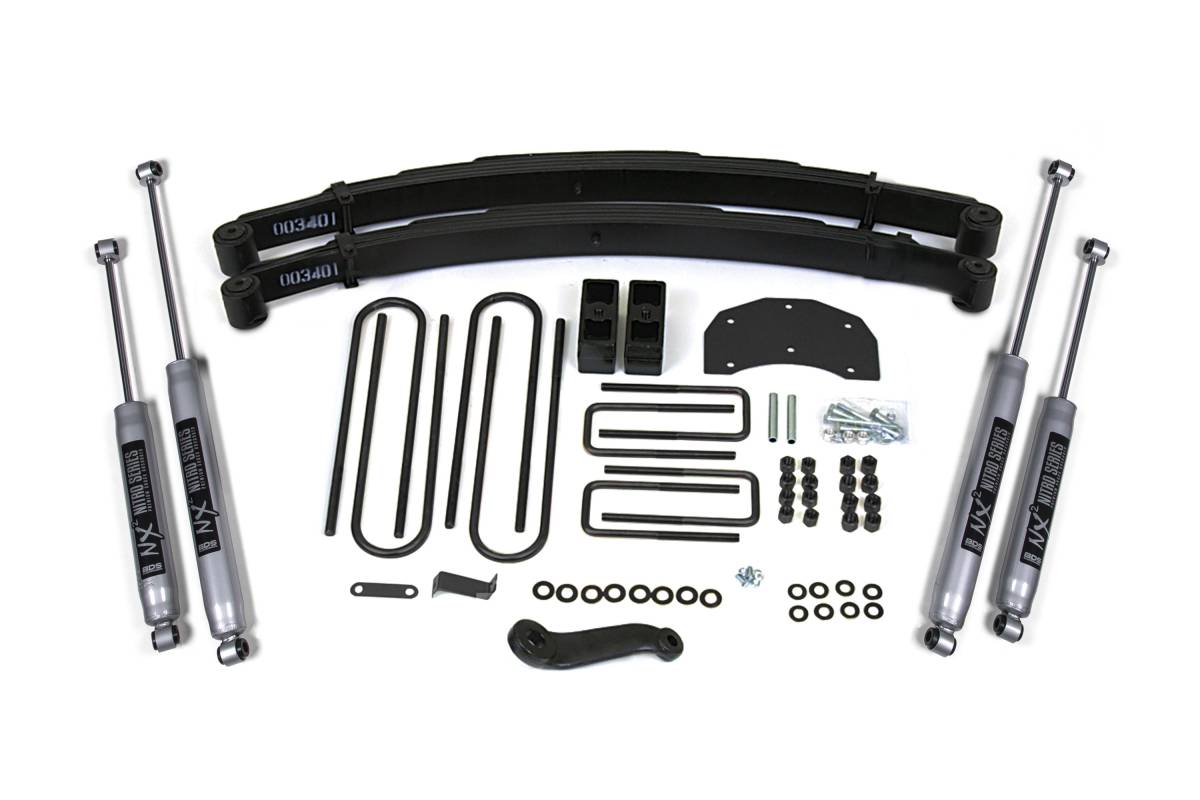

• Includes: Glide-Ride leaf springs, forged drop pitman arm, track bar bracket, lift block, extended U-bolts, and shocks
• Shock options: NX2 Nitro Series or FOX 2.0 Performance Series

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

This system is designed for a front solid axle style suspension only. The kit will not work on Twin-Traction Beam applications.
