BDS 6 Inch Lift Kit | 2006-2007 Dodge Ram 1500 Mega Cab 4WD | Rear Leaf Springs | 4" Axle | FOX 2.0 Performance Series

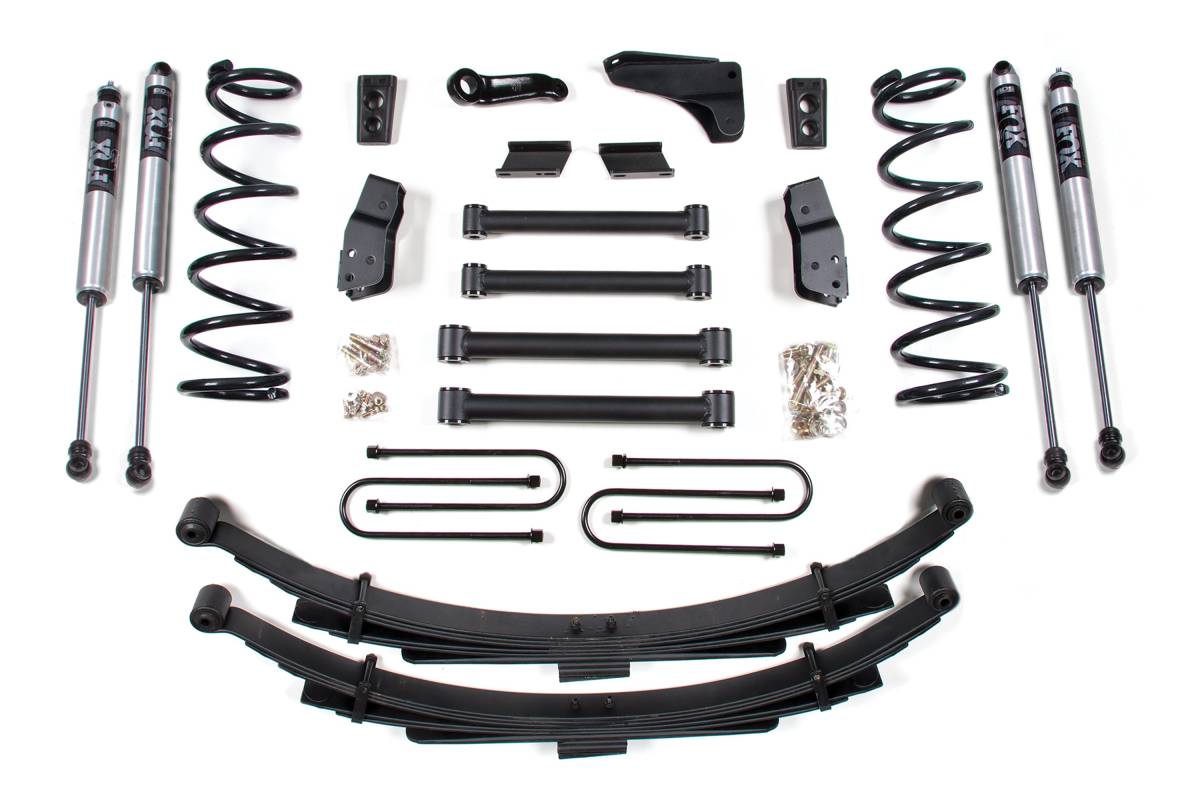

Rear lift is achieved via BDS Leaf Springs designed for the 4 Inch rear axle. These multi-leaf progressive springs provide a 5-inch rear lift with u-bolts included, eliminating any need for a lift block. They reduce axle wrap, maintain factory payload weight ratings, and deliver a controlled, stable feel. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum IFP monotube body, CNC machined 6061-T6 aluminum mounting ends, and a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft.

Overview

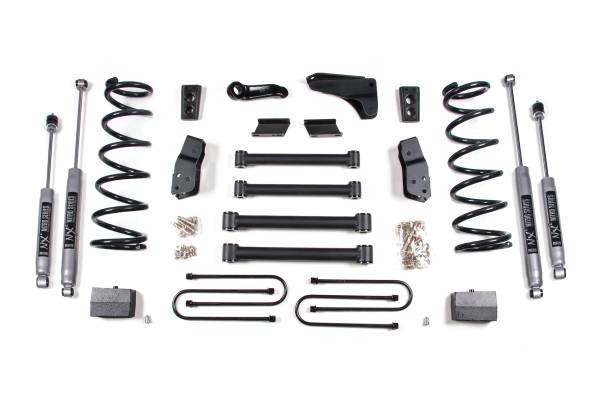

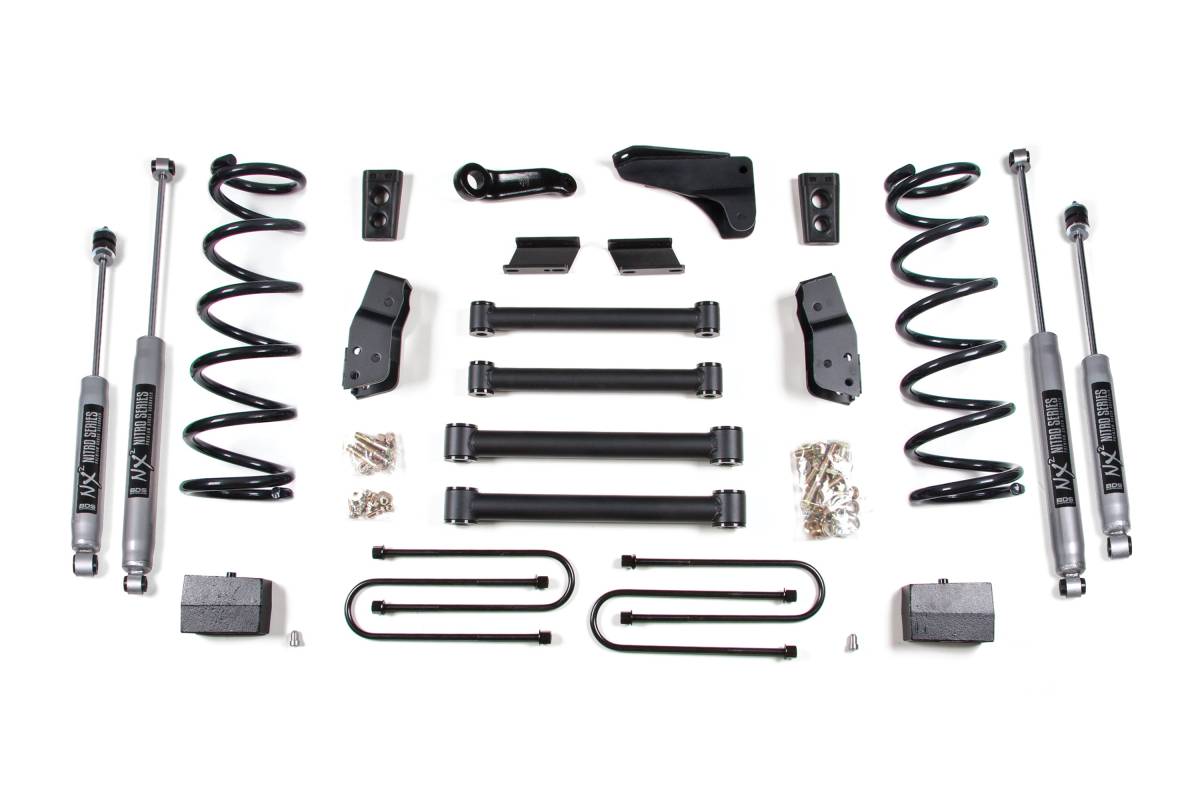

This 6-inch lift kit from BDS Suspension is designed for the 2006–2007 Dodge RAM 1500 Mega Cab 4WD and provides clearance for up to 36-inch tires. BDS engineered new lower control arms that are longer than stock to rotate the axle for proper alignment, along with a relocation mounting bracket to flatten the angle of the upper control arm and maintain factory handling characteristics. Up front, the kit includes gas-specific Pro-Ride coil springs, all four control arms plus a relocation bracket, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, sway bar links, and precision-tuned shocks. The rear kit includes heavy duty cast steel blocks or BDS leaf springs, longer u-bolts, and a matching set of shocks.

Features

• Tubular short arms improve strength, handling, and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high-strength progressive rate Pro-Ride coil springs — manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind
• Front track bar relocation bracket to re-center the front axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction links to maintain handling performance
• Available with BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks for improved ride and off-road performance
• Rear options include cast iron 4-inch block kit (tapered for correct pinion angle, offset pin to restore axle position) or BDS multi-leaf progressive leaf springs (5-inch rear lift, reduces axle wrap, maintains factory payload ratings)

Specifications

• Front lift: 6 inches via Pro-Ride progressive rate coil springs
• Rear lift: 4 inches (block kit) or 5 inches (leaf spring option)
• Tire clearance: up to 36 inches
• Pro-Ride coil springs: full-length, gas-specific, high tensile steel construction
• Rear block material: cast iron
• Compatible rear axle sizes: 3-1/2 inch or 4 inch — measure before ordering

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

This truck is available with two different axle sizes, 3.5" or 4". Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require u-bolt 4066. Rear lift options will not fit dually applications. Although unusual, if driveline vibration occurs, order transfer case drop kit available in options or t-case index kit. Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2" taller ride height, so net lift gain will be 4".
