BDS Recoil Traction Bar Kit | 2007-2021 Toyota Tundra

Overview

The BDS Recoil Traction Bar Kit for the 2007–2021 Toyota Tundra improves traction without limiting wheel travel. Built with heavy wall construction and internal compression springs, the kit controls axle wrap while maintaining a full float design for bind-free performance across a range of lift heights. The bar is fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded toward the axle end and a CNC-machined end at the frame. The axle mount uses a large-forged flex end and jam nut with a forged housing featuring a 1-1/4-inch x 12 threaded shank, a single-sided snap ring, and a 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. At the frame end, a durometer-specific polyurethane bushing free-floats within the bar via dual-stage internal compression springs and UHMW polyurethane bearings.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Specifications

• Tubing: 2-inch OD x 3/16-inch wall steel
• Axle end: Large-forged flex end with jam nut; forged housing, 1-1/4-inch x 12 threaded shank, single-sided snap ring, 1-piece flex ball
• Flex end misalignment capability: Up to 15 degrees in either direction
• Frame end: Durometer-specific polyurethane bushing with dual-stage internal compression springs and UHMW polyurethane bearings
• CNC-machined frame end

Installation

• Difficulty: Moderately Easy
• Mounting brackets are bolt-on; minor drilling required for frame mount installation

Important Notes

• Fits DoubleCab Short Box & CrewMax Short Box models
• Fits 0–6" of rear lift

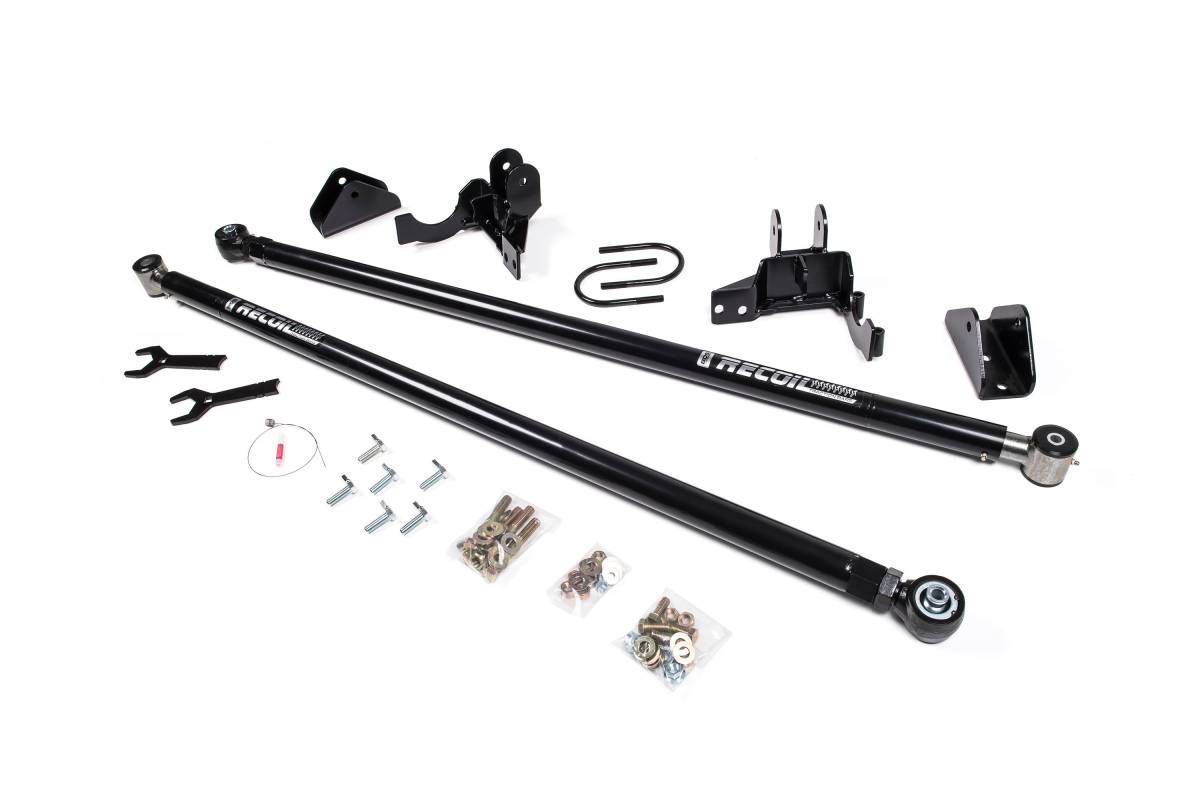

• Includes (1) 123409 Traction Bar Box Kit & (1) 128408 Mounting Kit
