BDS Recoil Traction Bar Kit | 2011-2016 Ford F250/F350 Super Duty 4WD Long Bed

Overview

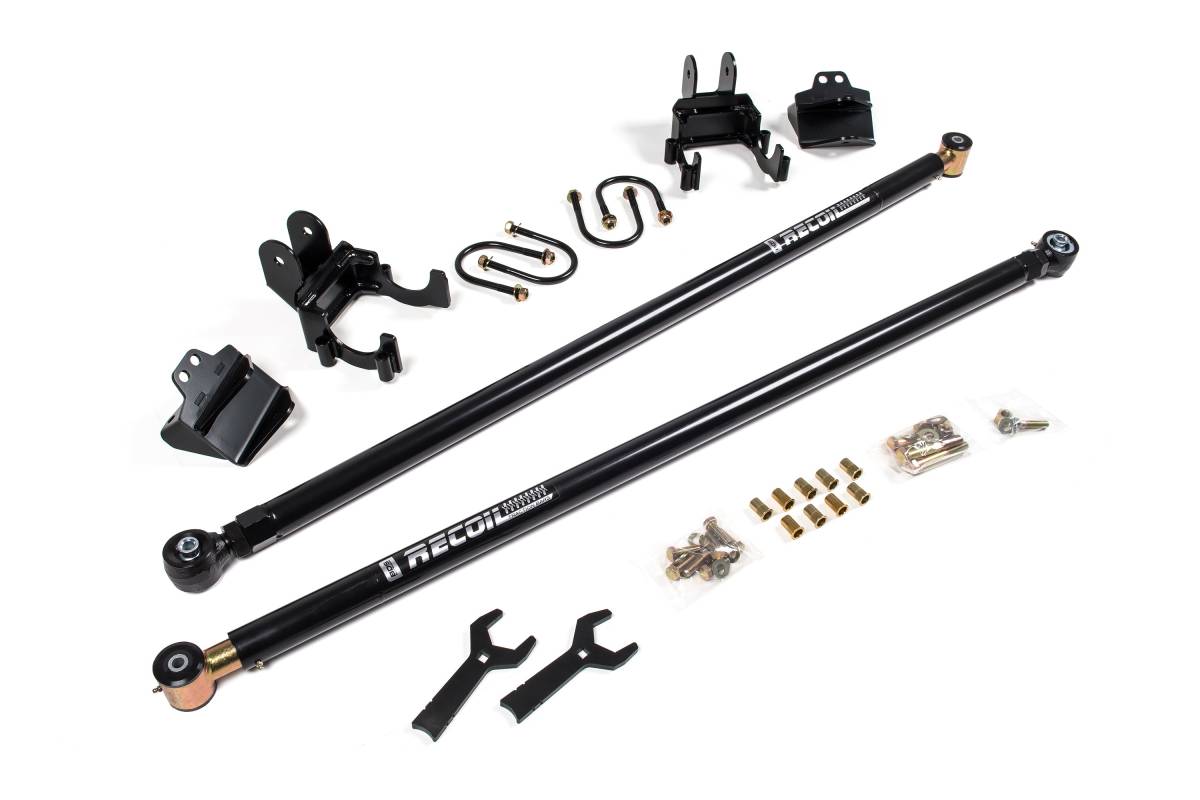

The BDS Recoil Traction Bar Kit is designed for 2011–2016 Ford F250/F350 Super Duty 4WD Long Bed trucks. It improves traction without limiting wheel travel by using heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. The full float design delivers bind-free performance across a range of lift heights. The bar is fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle end and a CNC-machined end at the frame. The axle mount uses a large-forged flex end and jam nut with a forged housing featuring a 1-1/4-inch x 12 threaded shank, a single-sided snap ring, and a 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. The frame end utilizes a durometer-specific polyurethane bushing that free-floats within the traction bar via dual-stage internal compression springs and UHMW polyurethane bearings.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Specifications

• Tubing: 2-inch OD x 3/16-inch wall steel
• Axle mount: Large-forged flex end with jam nut
• Flex end shank: 1-1/4-inch x 12 threaded, forged housing
• Flex ball: 1-piece with single-sided snap ring; up to 15 degrees misalignment in either direction
• Frame end bushing: Durometer-specific polyurethane
• Internal bearings: UHMW polyurethane
• Compatible lift range: 0–6 inches of rear lift

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderately Easy
• Mounting brackets are bolt-on; minor drilling required for frame mount installation

Important Notes

• Fits long box models only
• Does NOT fit Dual Rear Wheel (DRW) models
• Fits 0–6" of rear lift
• Will work with vehicles with factory rear sway bar
• Includes (1) 123409 Traction Bar Box Kit & (1) 123418 Mounting Kit
• Will NOT work with AMP Research PowerSteps
• Will NOT work with Standard Cab / Short Box
