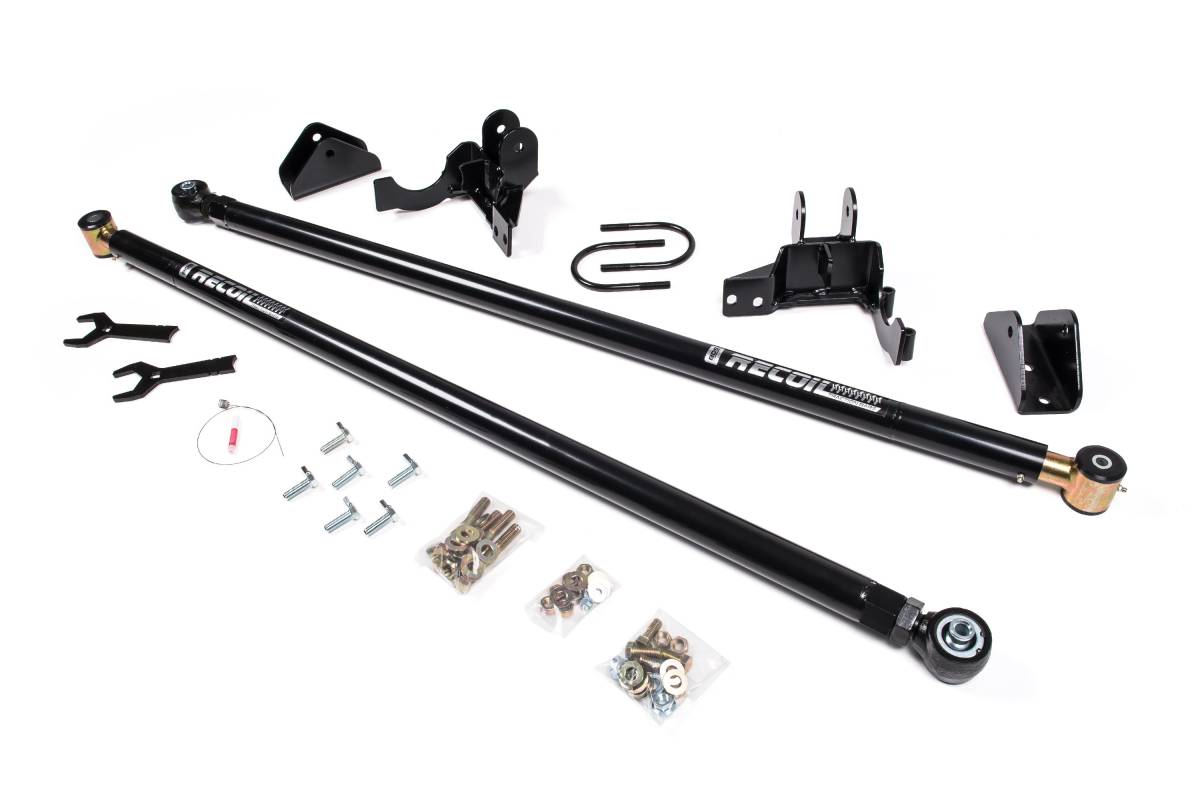

BDS Recoil Traction Bar Kit | 2011-2019 Chevy Silverado & GMC Sierra 2500HD/3500HD SRW/DRW | 0-6 Inch Lift

Overview

The BDS Recoil Traction Bar Kit improves traction on 2011-2019 Chevy Silverado and GMC Sierra 2500HD/3500HD SRW/DRW models without limiting wheel travel. Built with heavy wall steel construction and internal compression springs, the kit controls axle wrap while maintaining a full float design for bind-free performance across a range of lift heights. The bar is fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded toward the axle end and a CNC-machined frame end. The axle mount uses a large forged flex end and jam nut featuring a forged housing with a 1-1/4-inch x 12 threaded shank, a single-sided snap ring, and a 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. At the frame end, a durometer-specific polyurethane bushing free-floats within the traction bar via dual-stage internal compression springs and UHMW polyurethane bearings.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Specifications

• Tubing: 2-inch OD x 3/16-inch wall steel
• Frame end: CNC-machined with durometer-specific polyurethane bushing and UHMW polyurethane bearings
• Axle end: Large forged flex end with 1-1/4-inch x 12 threaded shank, single-sided snap ring, and 1-piece flex ball
• Flex end misalignment capability: Up to 15 degrees in either direction
• Compatible lift range: 0–6 inches of rear lift
• Fits 4-inch rear axle models only
• Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) models

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderately Easy
• Mounting brackets are bolt-on; minor drilling required for frame mount installation

Important Notes

• Fits 0–6 inches of rear lift
• Will NOT work on standard cab models
• Will fit Single and Dually rear wheel models
• Fits 4-inch rear axle models only
