BDS Recoil Traction Bar Kit | 2004-2020 Ford F150 4WD | 0-6 Inch Lift

Overview

The BDS Recoil Traction Bar Kit improves traction on 2004–2020 Ford F150 4WD trucks without limiting wheel travel. Built with heavy wall steel construction and internal compression springs, the kit controls axle wrap and can be loaded or unloaded while installed on the vehicle. The full float design delivers bind-free performance across a range of lift heights. Bars are fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded toward the axle end and a CNC-machined frame end. The axle mount uses BDS's large-forged flex end and jam nut, featuring a forged housing with a large 1-1/4-inch x 12 threaded shank, a single-sided snap ring, and a 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. At the frame end, a durometer-specific polyurethane bushing free-floats within the traction bar via dual-stage internal compression springs and UHMW polyurethane bearings.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Specifications

• Tube construction: 2-inch OD x 3/16-inch wall steel tubing
• Frame end: CNC-machined with durometer-specific polyurethane bushing and UHMW polyurethane bearings
• Axle end: Large-forged flex end with 1-1/4-inch x 12 threaded shank, single-sided snap ring, and 1-piece flex ball
• Flex end misalignment capability: Up to 15 degrees in either direction
• Compatible lift range: 0–6 inches of rear lift

Important Notes

• Fits 0–6" of rear lift.

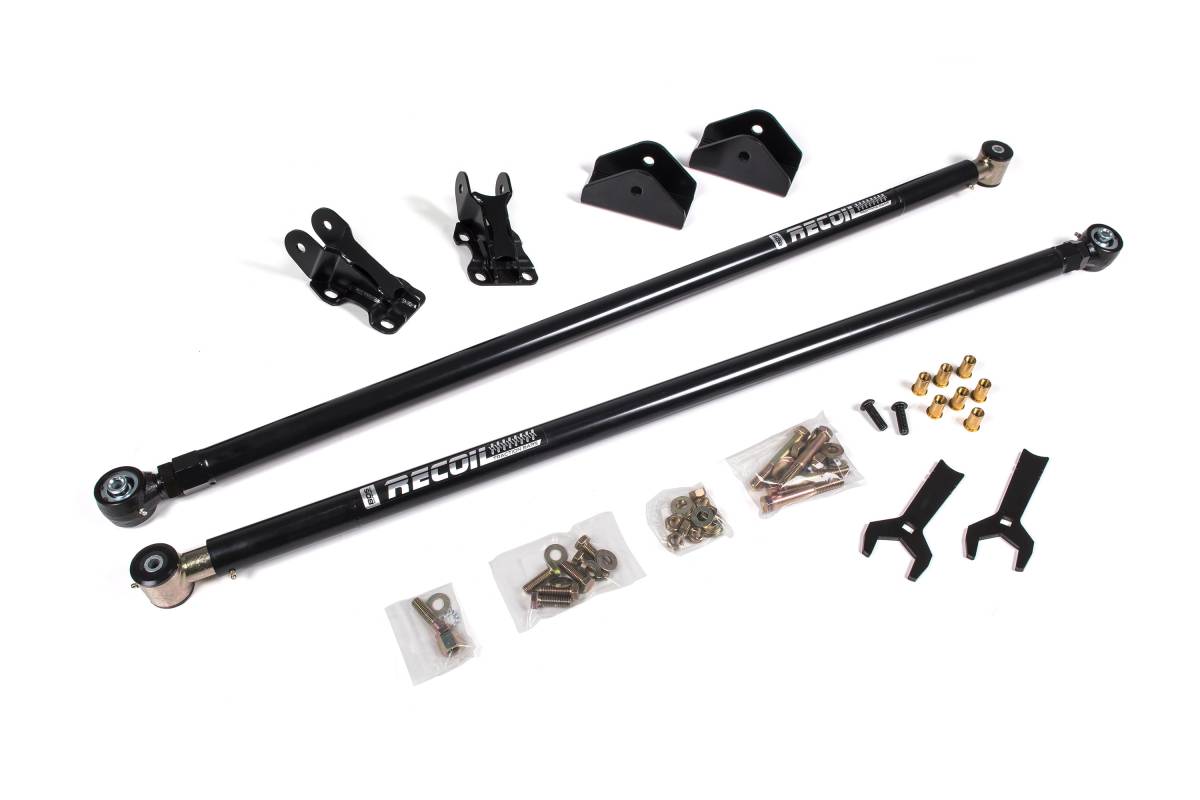

• Includes (1) 123409 Traction Bar Box Kit & (1) 123419 Mounting Kit.
• Will NOT work with Standard Cab / Short Box.
• Will work with Ford Raptor.
• Will not work with AMP Research PowerSteps.
