BDS 7 Inch Radius Arm Lift Kit | Leaf Springs | FOX 2.5 Performance Series HTO | Ford F250/F350 Super Duty (2023-2026) 4WD Diesel

This configuration uses rear leaf springs with a multi-leaf progressive design that provides a smooth ride, correct pinion angles, reduced axle wrap, and maintained factory payload weight ratings — eliminating the need for a lift block. Paired with FOX 2.5 Performance Series HTO coilover shocks featuring a 2.5-inch impact-extruded aluminum body, a 5/8-inch hard chrome plated heat-treated alloy steel shaft, and Hydraulic Top Out (HTO) technology for position-sensitive rebound damping control on and off the pavement. Fully serviceable with a 1-year manufacturer's warranty.

Note: Vehicles with leaf spring ride height sensors must select this rear leaf spring option.

Overview

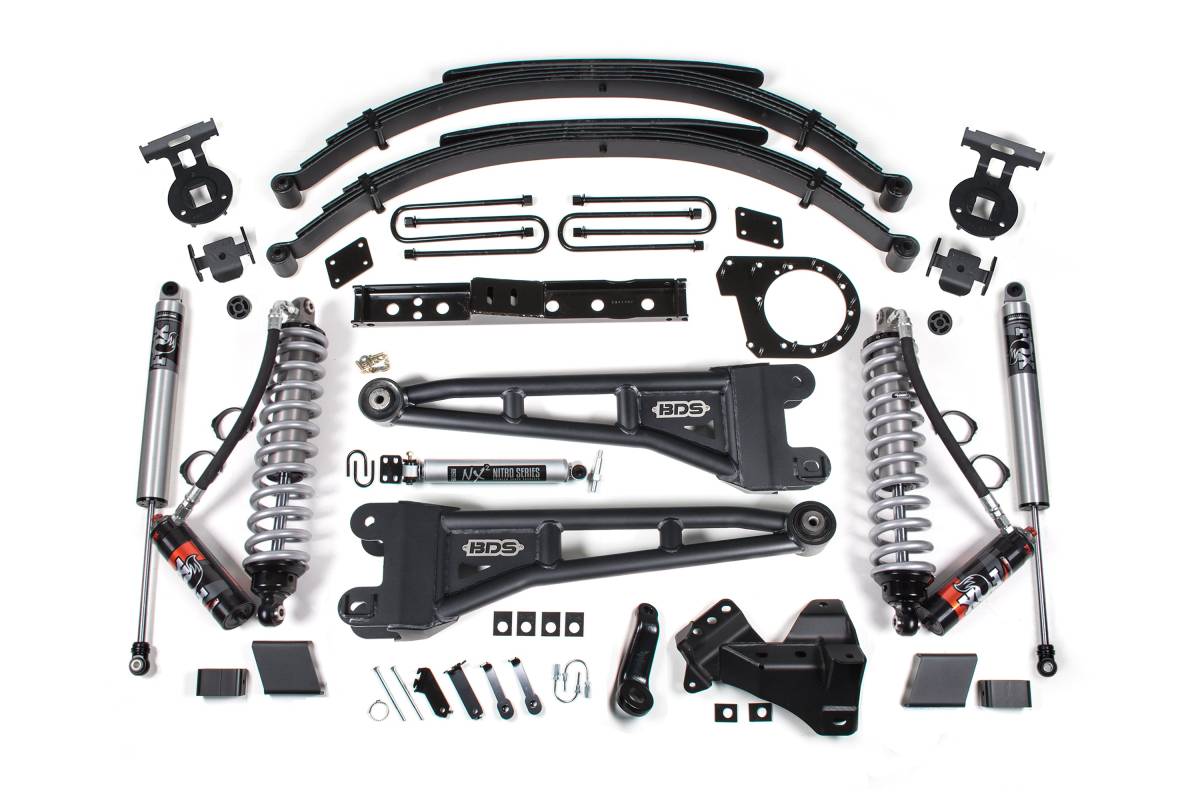

This 7-inch radius arm lift kit from BDS Suspension is designed for Ford F-250 and F-350 Super Duty diesel trucks (2023–2026), improving stance, performance, and capability with clearance for tires up to 38 inches. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes either a high-strength fabricated lift block or progressive leaf springs, longer U-bolts, and brake line brackets, along with a matched set of FOX Performance shocks.

Features

• FOX 2.5 Performance Elite coilover shock mounts in the OE spring location
• Optional secondary shock in the OE shock location
• Heavy-duty tubular steel radius arms correct castering while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks (block kit option) provide a level stance front to rear
• Shock options available from FOX 2.5 Performance Series HTO to FOX 2.5 Performance Elite with DSC

Specifications

• Lift Height: 7 inches
• Tire Clearance: Up to 38 inches
• Compatible Vehicles: 2023–2026 Ford F-250 / F-350 Super Duty 4WD Diesel, SRW models only
• Radius Arms: Heavy-duty tubular steel construction
• Rear Lift Options: Fabricated steel block kit or multi-leaf progressive rear leaf springs
• Transfer case indexing ring compatible with 10-speed transmission trucks only

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Tools Required: 30mm Socket, 40mm Socket, Basic Hand Tools, Cut-off Tool, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller, Torque Wrench capable of 405 ft-lbs

Important Notes

• Ford recommends replacement of the pitman arm nut each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a factory rear sway bar, add: BDS123808.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on stock wheels are not recommended due to brake line clearance requirements. Use recommended specs listed in the wheel and tire fitment section.
• The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing.
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). BDS recommends having this performed prior to installing the lift.
• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Vehicles with leaf spring ride height sensors must select the rear block option.
• Fits SRW models only.
• Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control, and other functions as they operated prior to installation. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
