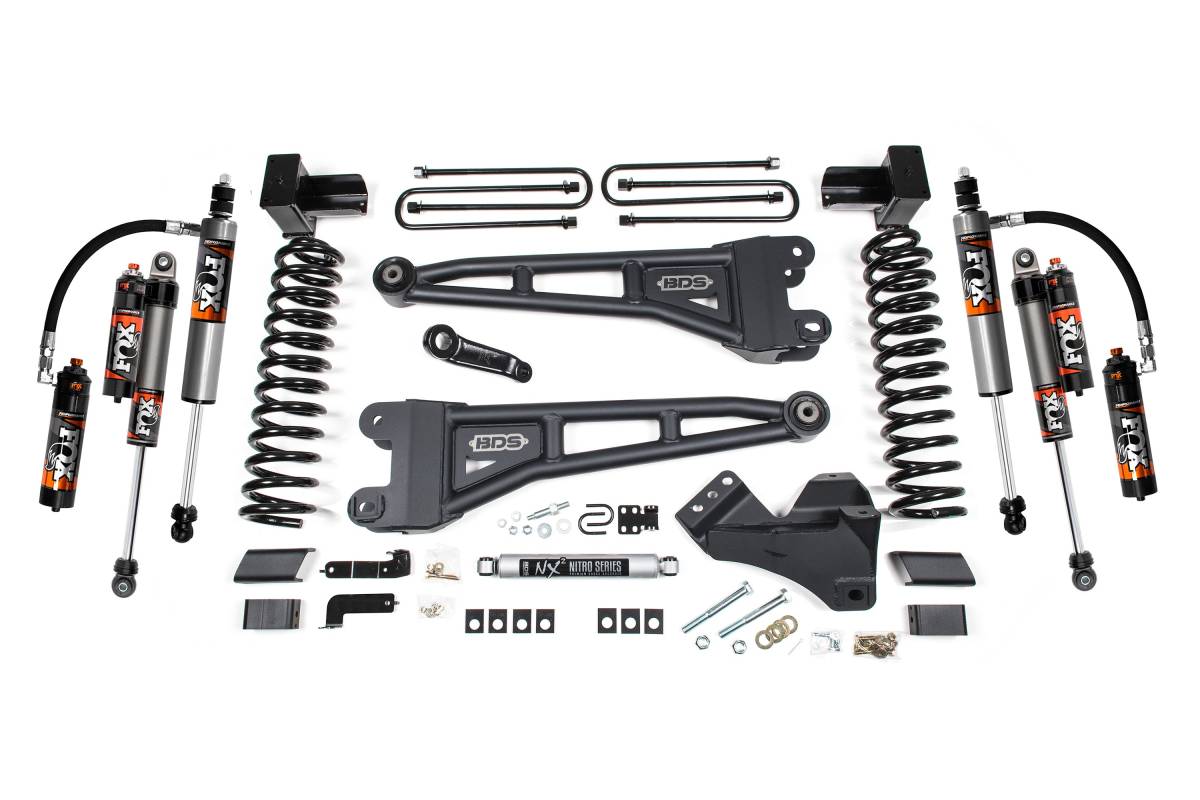

Configured with FOX 2.5 Performance Elite shocks front and rear. FOX 2.5 Performance Elite shocks feature a 2.5-inch impact extruded aluminum body, an external reservoir design that separates shock oil from high-pressure nitrogen, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, a DSC Dual Speed Compression Adjuster, and are fully serviceable for a lifetime of use.
Overview

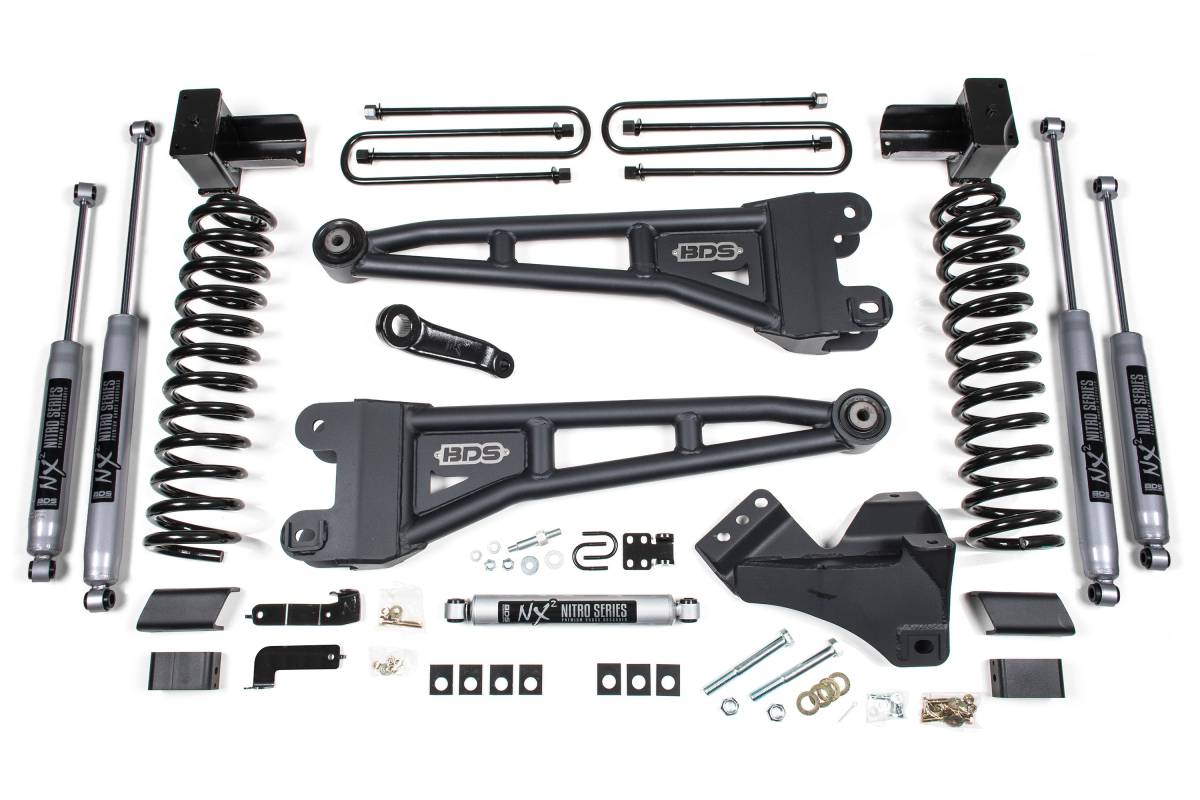

This 5-inch radius arm lift kit from BDS Suspension is designed to improve the stance, performance, and capability of the 2020–2022 Ford F-250/F-350 Super Duty 4WD gas-powered truck. The kit provides clearance for up to 37-inch tires and includes all components necessary for a complete installation. Up front, the kit utilizes gasoline-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar drop bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned nitrogen-charged shocks. The rear uses a high-strength fabricated lift block, longer U-bolts, brake line brackets, and a matched set of rear shocks.
Features
- Easy, 100% bolt-on installation
- Pro-Ride dual-rate coil springs — gasoline-specific — provide a smooth, predictable ride across various terrains
- Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance; mount in the factory location with OE-style rubber bushings for smooth, quiet, service-free operation
- Caster adjustment accommodates a wide range of lift heights
- Track bar relocation bracket and forged drop pitman arm maintain proper steering angles and minimize steering angle for improved handling
- Fabricated steel lift blocks provide a level stance from front to rear
- Includes brake line brackets front and rear
- Sway bar relocation hardware included
- Shock options available: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite
- Provides clearance for up to 37-inch tires
Specifications
- Lift Height: 5 inches
- Vehicle Fitment: 2020–2022 Ford F-250/F-350 Super Duty 4WD Gas, SRW models only
- Radius Arms: High-strength tubular steel, factory mounting location
- Coil Springs: Full-length, gasoline-specific Pro-Ride dual-rate
- Rear Lift Method: Fabricated steel lift block with longer U-bolts
- Steering Correction: Forged drop pitman arm and heavy-duty track bar drop bracket
- Maximum Tire Size: 37 inches
Installation
- Estimated Installation Time: 5 hours
- Difficulty: Moderate
- Special Tools Required: 30mm socket, Pitman Arm Puller; torque wrench capable of 405 ft-lbs
Important Notes
- Ford recommends replacement of the pitman arm nut each time it has been removed.
- If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8" — UBT4027 (Qty: 4) — is required.
- Front exhaust modification may be required to clear the front drive shaft (Gas Only).
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If the truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Due to the taller factory ride height, Tremor models will not achieve the full advertised lift height. The final ride height will be the same as standard models.
- Larger tires on stock wheels are not recommended due to brake line clearance requirements. Use the recommended specs listed in the wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
- Some trucks with rear driveline vibration may have a Ford recall regarding the rear axle (Safety Recall 21S31). BDS recommends having this recall procedure performed prior to installing the lift kit.
- Fits SRW (Single Rear Wheel) models only.
