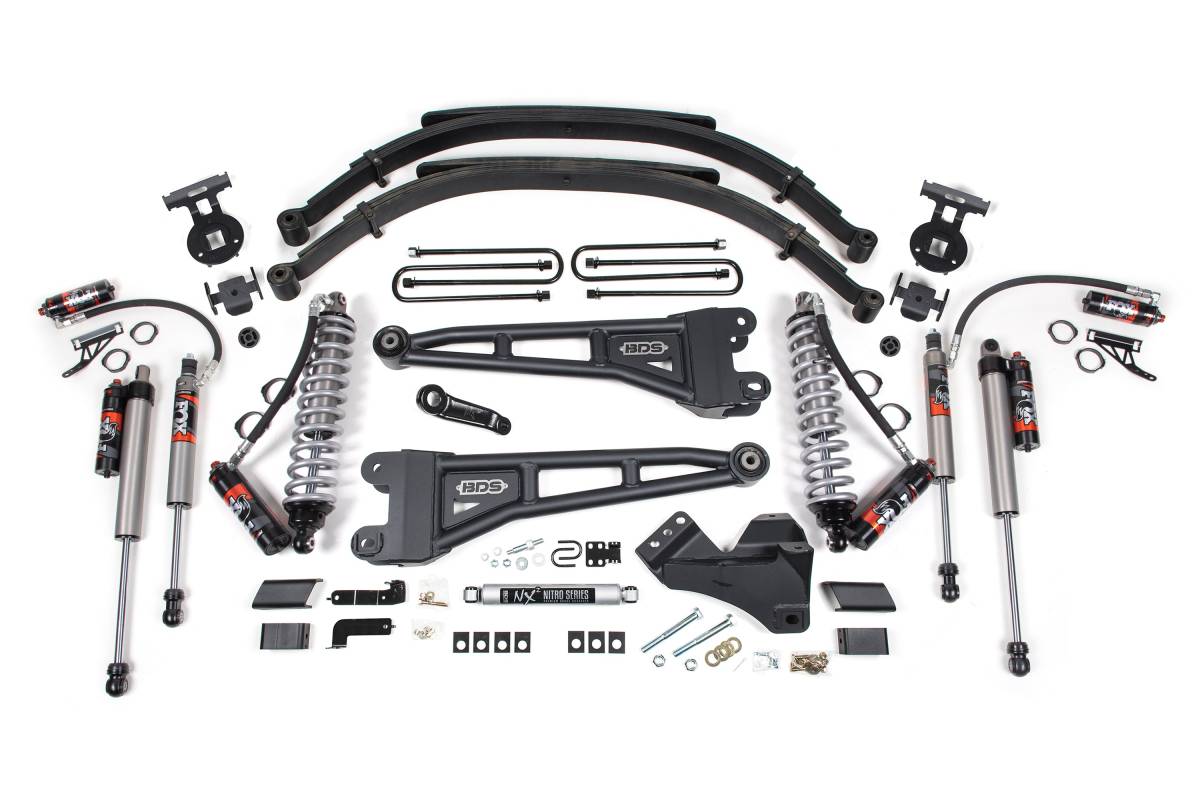

Rear lift configured with replacement Leaf Springs. The multi-leaf progressive design reduces axle wrap, maintains factory payload weight ratings, and delivers a smooth, controlled ride. Anti-friction pads provide a quiet ride experience. Rear shocks are FOX 2.5 Performance Elite, featuring a 2.5-inch impact extruded aluminum body, a 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design that separates shock oil from high-pressure nitrogen, and a standard DSC (Dual Speed Compression) adjuster offering 10 low-speed and 12 high-speed compression levels. Fully serviceable for a lifetime of use.
Overview

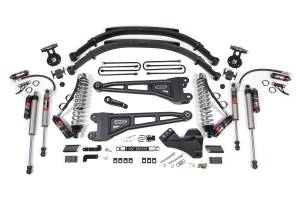

This 6-inch 4-Link lift kit with FOX 2.5 Performance Elite coil-over conversion from BDS Suspension is engineered for 2017–2019 Ford F250 and F350 Super Duty diesel trucks (4WD, SRW). The kit is designed to improve stance, performance, and off-road capability, with clearance for up to 38-inch tires.

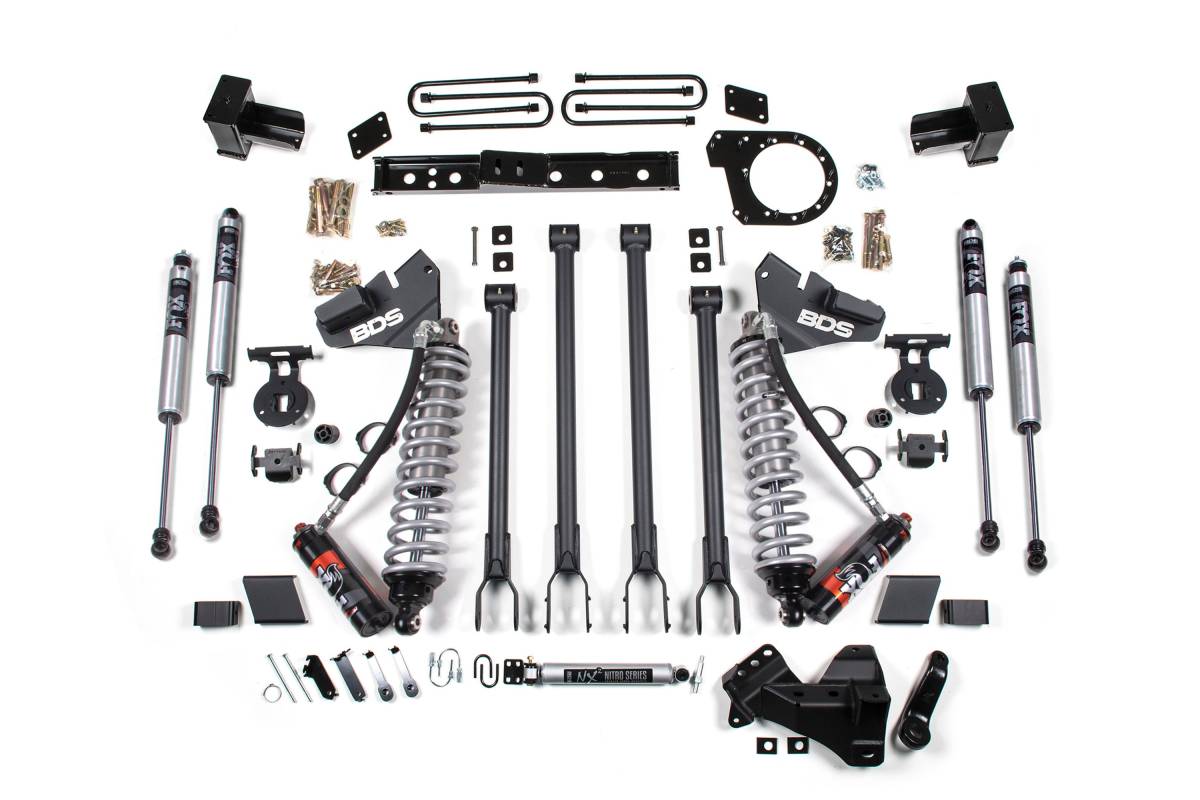

Up front, the kit includes FOX 2.5 coil-over shocks with mounting brackets, a 4-Link control arm conversion, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. A secondary FOX 2.0 shock is added for maximum front performance. At this lift height, the transfer case is indexed using a precision-built indexing ring with ARP studs to allow use of the factory front driveshaft, and a high-clearance transmission crossmember is supplied. In the rear, configurations are available with fabricated lift blocks, an add-a-leaf pack, or replacement leaf springs, paired with your choice of FOX rear shocks and matching brake line brackets.
Features
- FOX 2.5 coil-over shocks mount in the factory coil bucket location
- Secondary FOX 2.0 shock added for maximum front performance
- Eibach coil springs for smooth ride through rough terrain
- Heavy-duty 4-Link control arms provide improved handling, stability, strength, and caster control throughout wheel travel
- Track bar relocation bracket and forged drop pitman arm maintain proper steering angles
- Fabricated steel blocks provide a level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments
- Transfer case indexing ring with ARP studs clocks the transfer case to improve front driveline operating angle
- High-clearance transmission crossmember provides sufficient driveline clearance
- Compatible with up to 38-inch tires
Specifications
- Lift Height: 6 inches
- Vehicle Fitment: 2017–2019 Ford F250 / F350 Super Duty 4WD Diesel, SRW
- Front Shocks: FOX 2.5 Performance Elite Coil-Over with remote reservoir and DSC adjuster
- FOX 2.5 Performance Elite: 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC with 10 low-speed and 12 high-speed compression levels, black anodized aluminum reservoir
- FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, application-specific valving, clear anodized finish
- 4-Link brackets: high-strength 1/4-inch steel construction
- Rear lift options: Block Kit only, Block Kit with Add-A-Leaf, or Leaf Springs
- Tire Clearance: Up to 38 inches (38 x 13.50 may require minor trimming)
- FOX shocks: 1-year Manufacturer's Warranty, fully serviceable
Installation
- Estimated Installation Time: 8–10 hours
- Difficulty: Difficult
- Special Tools Required: Pitman Arm Puller
Important Notes
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
- 38 x 13.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
- If your truck is equipped with a factory rear sway bar, add: BDS123808.
- The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
- Fits SRW models only.
