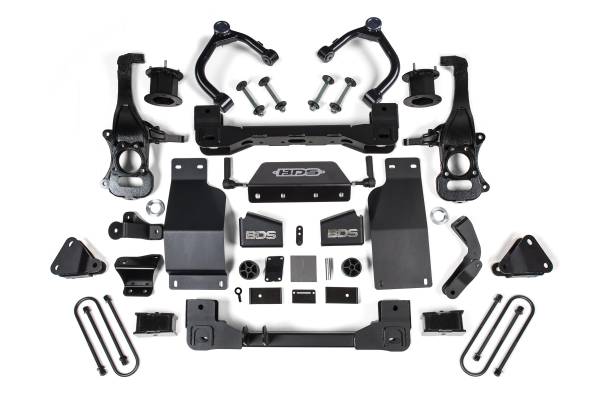

BDS 4 Inch Lift Kit | Chevy Silverado 1500 ZR2 & GMC Sierra 1500 AT4X (2022-2026) | 3.0 Duramax Diesel

Overview

This 4-inch suspension lift kit from BDS Suspension is designed for the Chevy Silverado 1500 ZR2 and GMC Sierra 1500 AT4X equipped with the 3.0L Duramax diesel engine. The kit improves stance, performance, and capability while providing clearance for up to 35–37-inch tires. It leverages BDS's high-clearance design for enhanced ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for superior on-road handling.

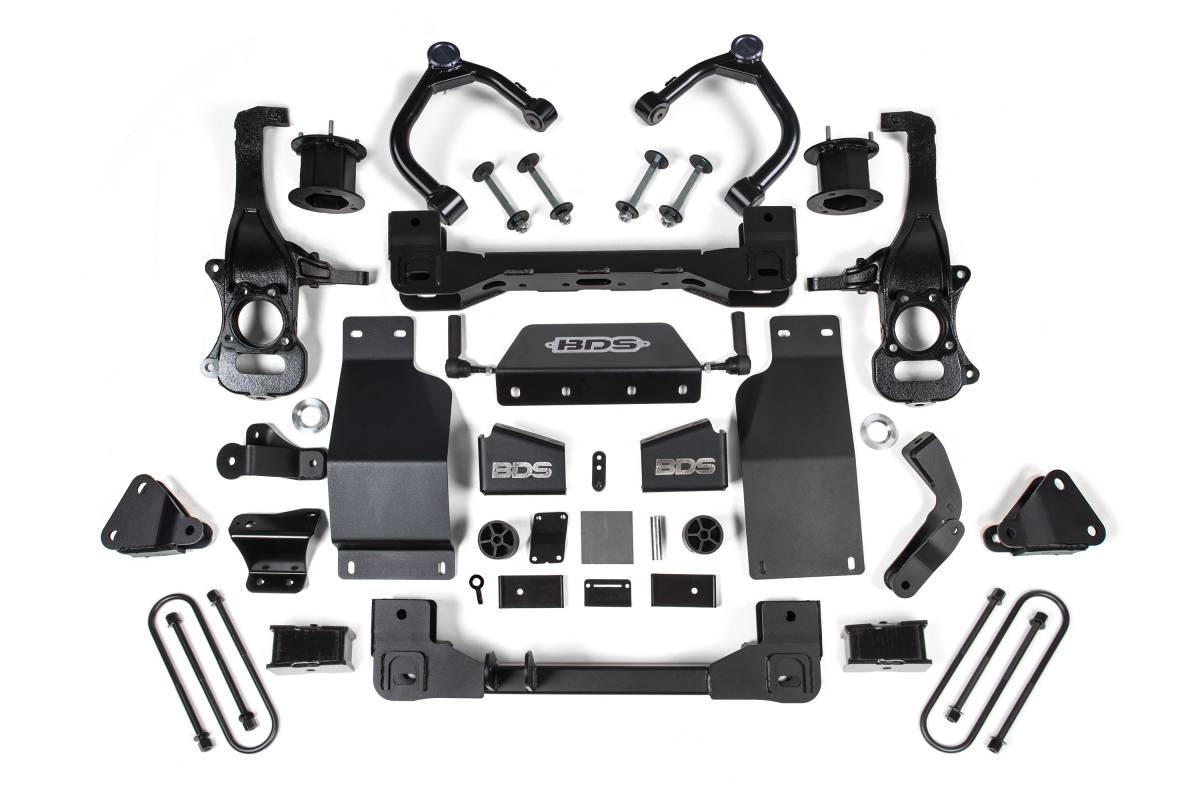

Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch-thick steel crossmembers, a multi-piece differential relocation bracket, and heavy-duty skid plates. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry while maintaining ESC system compatibility. Sway bar drops, bump stop extensions, and brake line brackets are also included. In the rear, a heavy-duty lift block installs in place of the stock block to lift and level the stance while retaining ride quality and load capacity. New U-bolts and shock relocation brackets ensure the factory Multimatic shock system operates without error.

Features

• Maintains factory Multimatic shock system
• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance and maximize turning radius
• High-strength replacement upper control arms provide durability and serviceability
• Significant upgrade to upper ball joint compared to OEM part
• HD skid plate system improves off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specifications

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 4"
• Rear Lift Method: Block
• Rear Lift Height: 3"
• Total Lift Height Range: 4–5.5"
• Shocks Included: No

Installation

• Estimated Installation Time: 7–9 hours
• Difficulty: Moderate
• Required Tools: Cut-Off Wheel or equivalent, Reciprocating Saw, Strut Compressor, Welding Equipment

Important Notes

• This kit works with trucks equipped with Multimatic shocks only. Will not work with auto-ride equipped vehicles.
• Requires frame bracket modification.
• Designed to fit ZR2 or AT4X trucks only equipped with MultiMatic shocks.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference; stock 20" wheels can be reinstalled.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure clearance to brake caliper.
• Some wheel profiles will not clear the brake caliper. This can be test fit before the vehicle is lifted while still in stock condition.
• If equipped with a mono-leaf rear spring, please use part #UBT4064.
