BDS 4 Inch Lift Kit | Adaptive Ride Control Only | 2025-2026 Chevy Silverado High Country & GMC Denali 1500 4WD Gas

Overview

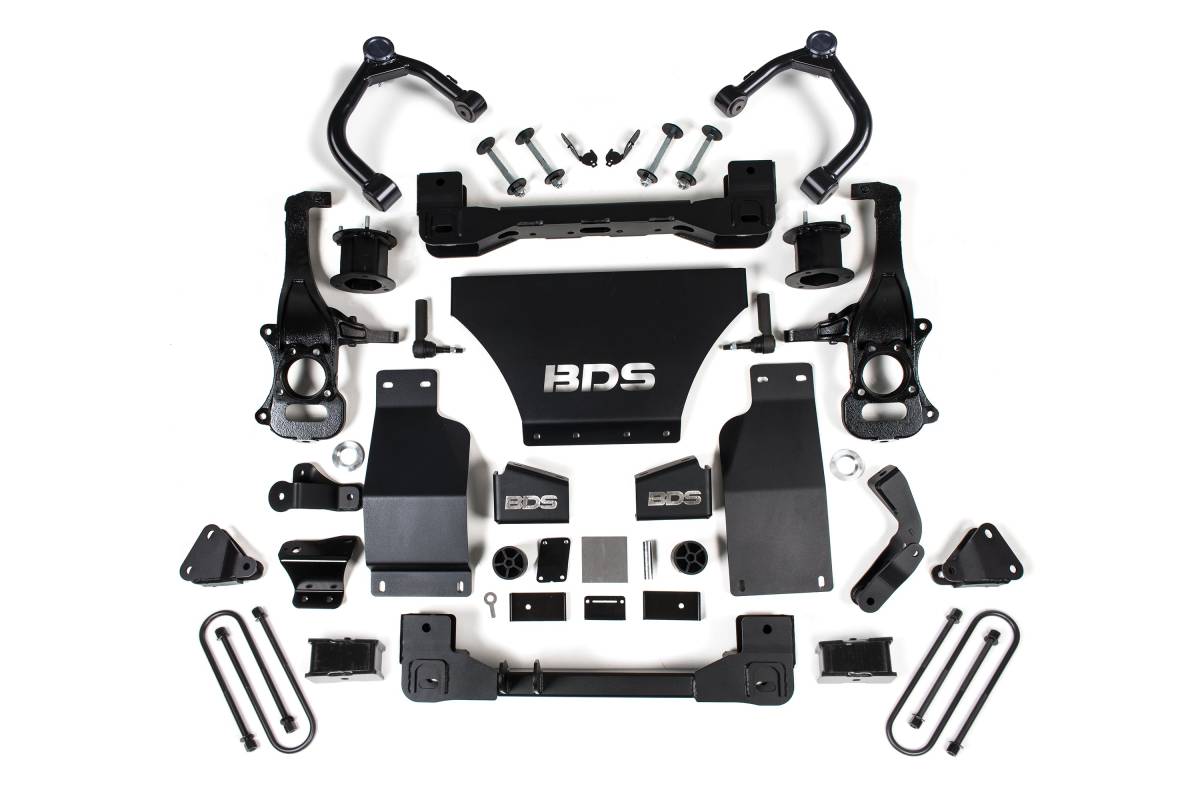

This 4-inch suspension lift kit from BDS Suspension is designed specifically for 2025–2026 Chevy Silverado High Country and GMC Denali 1500 4WD trucks equipped with Adaptive Ride Control (ARC) and gas engines. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires.

Up front, the kit uses top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for off-road protection. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry at the new ride height while maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware are included for a comprehensive front suspension lift.

In the rear, a heavy-duty lift block replaces the factory block to lift and level the stance while retaining ride quality and load capacity. New U-bolts and shock relocation brackets are included to retain the ARC system without errors.

Features

• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
• Heavy-duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Utilizes OE shocks and controls
• Rear shock relocation brackets retain ARC system functionality without error codes

Specifications

• Front Lift Method: Crossmember & Strut Spacer
• Front Lift Height: 4 inches
• Rear Lift Method: Block
• Rear Lift Height: 3 inches
• Total Lift Range: 4–5.5 inches
• Shocks Included: Yes (utilizes OE shocks)
• Crossmember Material: 1/4-inch thick laser-cut steel

Installation

• Estimated Installation Time: 8 hours
• Difficulty: Difficult
• Tools Required: 36mm Socket, Cut-Off Wheel or Equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

Important Notes

• Fits 4x4 models only.
• Works with High Country and Denali models with gas engines and Adaptive Ride Control only.
