BDS 4 Inch Lift Kit | Adaptive Ride Control Only | Chevy Silverado High Country & GMC Denali 1500 (2019-2024) 4WD Diesel

Overview

This 4-inch suspension lift kit from BDS Suspension is engineered specifically for Chevy Silverado High Country and GMC Denali 1500 trucks (2019–2024) equipped with Adaptive Ride Control (ARC). The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. BDS's high-clearance design improves ground clearance, strength, and off-road protection while correcting suspension and steering geometry for proper on-road handling.

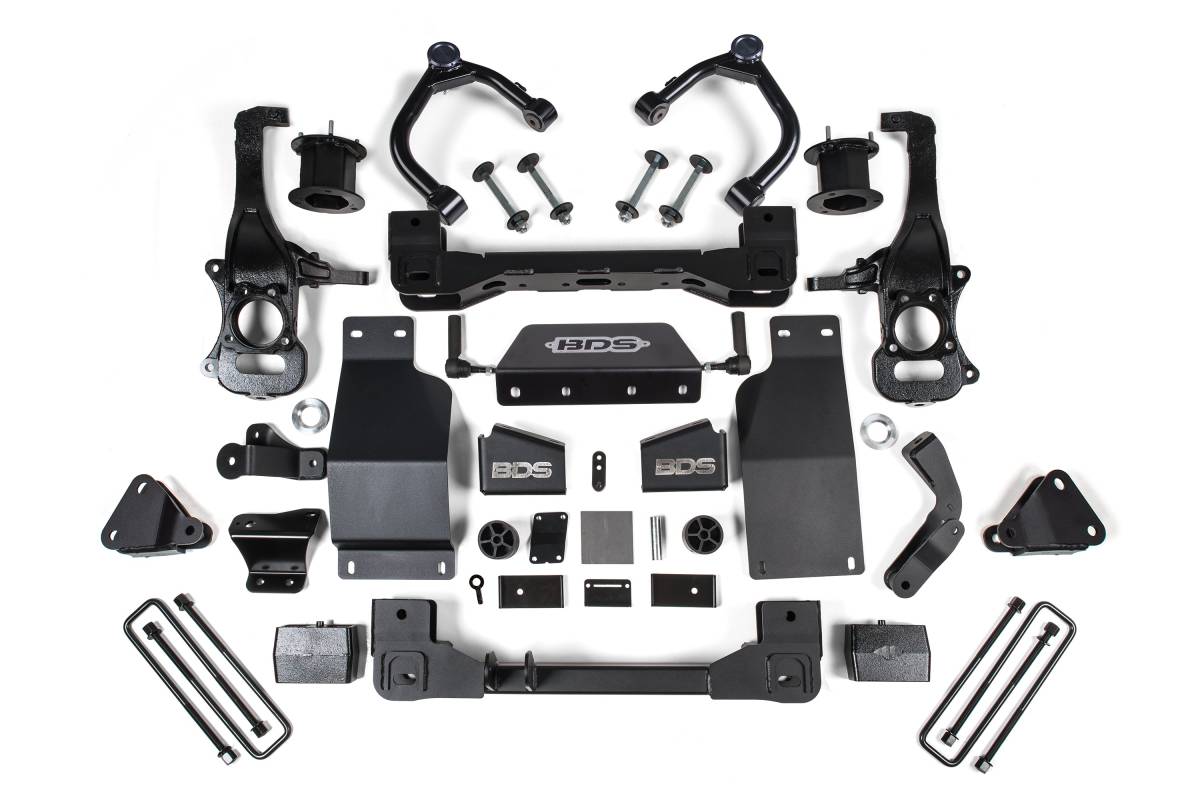

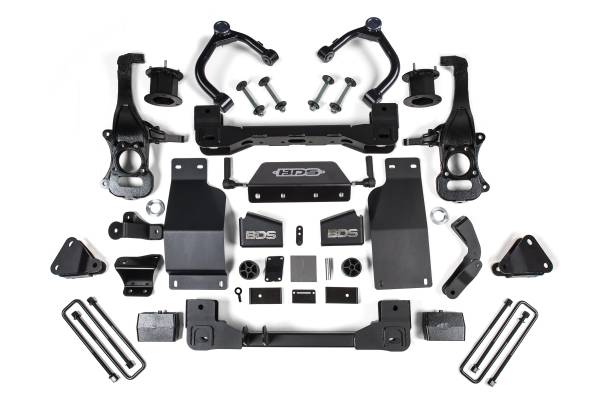

Up front, the kit utilizes top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multi-piece differential relocation brackets, and heavy-duty skid plates. Steering geometry is corrected at the new ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware are included for a comprehensive front suspension lift. In the rear, a heavy-duty lift block replaces the factory block, retaining ride quality and load capacity, while new U-bolts and shock relocation brackets preserve ARC system function.

Features

• Maintains factory Adaptive Ride Control (ARC) system
• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile iron steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved off-road protection
• Multi-point differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4–5.5"
• Front Lift Method: Cross-Member
• Front Lift Height: 4"
• Rear Lift Method: Block
• Rear Lift Height: 2"
• Shocks Included: No

Installation

• Estimated Installation Time: 8 hours
• Difficulty: Difficult
• Tools Required: 36mm Socket, Cut-Off Wheel or Equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

Important Notes

• Requires frame bracket modification
• Designed to fit Adaptive Ride Control (ARC) equipped trucks only
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference; stock 20" wheels can be reinstalled
• All aftermarket wheels should be test fit prior to mounting the tire to ensure clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. This can be test fit before the vehicle is lifted while still in stock condition
• Front skid plate will not work with 2.7L Turbo Engines
• Will NOT fit models with a single leaf spring (monoleaf) rear suspension
