BDS 4.5 Inch Lift Kit | Chevy Silverado/GMC Sierra 2500HD/3500HD (2011-2019) 4WD | 3 Inch Block Kit Without Overload | NX2 Nitro Series

Configured with a 3 Inch Rear Block Kit (Without Top-Mounted Overload Springs) and NX2 Nitro Series shocks. Select this option if your truck's rear leaf springs do not have top-mounted overload springs.

NX2 Nitro Series shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

This BDS 4.5-inch lift kit is designed for 2011–2019 Chevy Silverado and GMC Sierra 2500HD 4WD trucks, improving stance, performance, and capability. BDS engineered a No Torsion Bar Drop System where the torsion bars mount directly to the top of the lower a-arm, eliminating the need to drop the torsion bar cross-member for maximum ground clearance. The kit provides clearance for up to 35-inch tires and includes everything needed for a complete front and rear suspension lift.

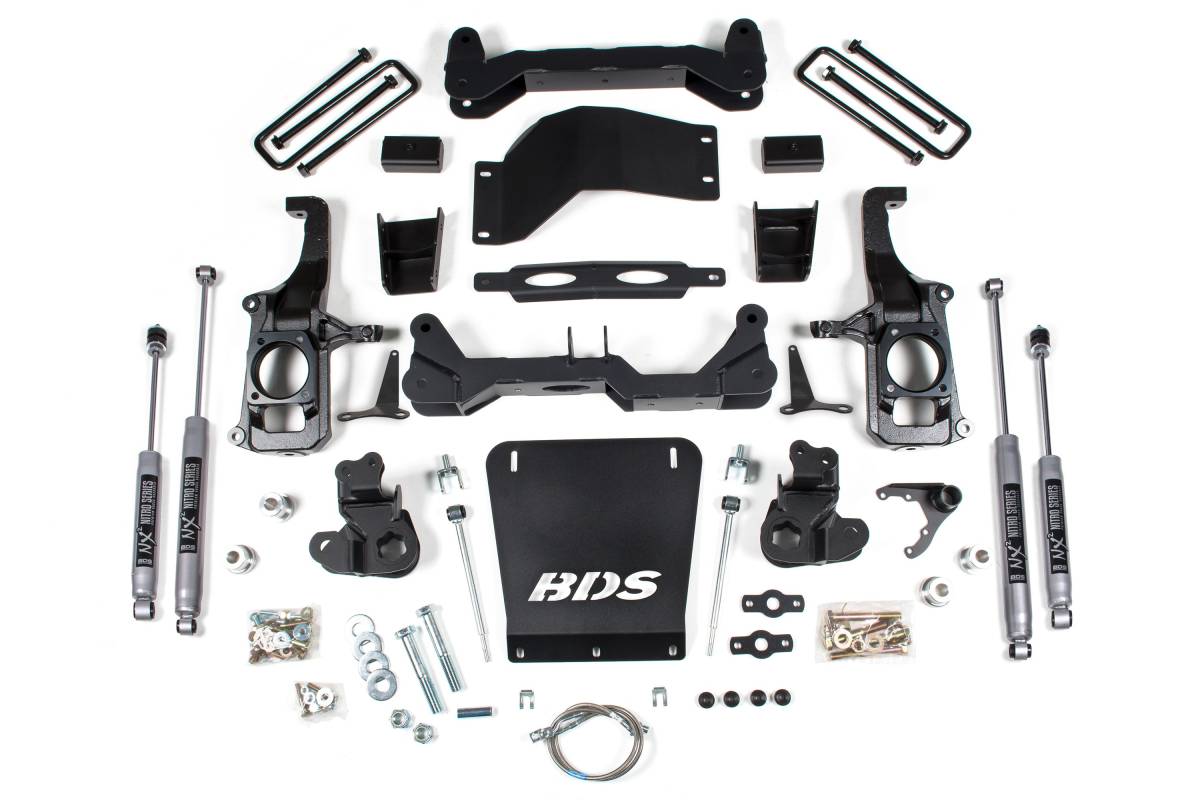

Up front, the kit uses torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates for off-road protection. CNC-machined ductile iron steering knuckles correct steering geometry at the new taller ride height. Sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, and all required hardware are included. In the rear, replacement lift blocks install in place of the stock block, retaining ride quality and load capacity. A u-bolt flip kit is also included for maximum clearance. Shocks are available in NX2 Nitro Series or FOX 2.0 Performance Series.

Features

• High Clearance design with No Torsion Bar Drop maximizes ground clearance
• Heavy duty 1/4-inch thick laser cut high-arched steel crossmembers
• Front skid plate system bolts together to create a rigid subframe with added off-road protection
• CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compliance
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Replacement rear lift blocks retain ride quality and load capacity
• U-bolt flip kit included for maximum rear clearance
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series gas shocks
• Factory Protection Plus drivetrain warranty included
• Includes sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, and all required hardware

Specifications

• Lift Height: 4.5 inches
• Tire Clearance: Up to 35 inches
• Front crossmember material: 1/4-inch thick laser cut steel
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift: Block kit (2-inch or 3-inch, depending on variant selected)
• Brake lines: Stainless steel

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Special Tools Required: Cut Off Wheel or equivalent, Reciprocating Saw, Torsion Bar Unloading Tool

Important Notes

• Torsion Bar Tool required to load/unload the torsion bars.
• Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels cannot be reinstalled on 2015–2019 models.
• Factory dually wheels cannot be reinstalled.
• Models with a two-piece rear driveshaft may require #121612.
• Top-mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
• Depending on the specific wheel and tire combination, trimming may be required for 35x12.50 tires.
