BDS 4 Inch Lift Kit | Chevy/GMC Avalanche, Suburban, Tahoe & Yukon 1500 (2000-2006) 4WD | Auto Ride Equipped

Configured for vehicles equipped with the factory Auto Ride system. Includes brackets that maintain the factory air shocks in place of front and rear shocks. Will not fit models equipped with Magnetic Ride Control.

Overview

The BDS 4-inch lift kit is designed to improve the stance, performance, and capability of the 2000–2006 Chevrolet Avalanche, Suburban, and Tahoe and GMC Yukon 1500 4WD. BDS engineered a No Torsion Bar Drop System where the torsion bars mount directly to the top of the lower a-arm, eliminating the need to drop the torsion bar cross-member and maximizing ground clearance. This kit provides clearance for up to 33-inch tires and corrects suspension and steering geometry for proper on-road handling at the new ride height.

Up front, the kit uses torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket, and heavy duty skid plates. Steering geometry is corrected with CNC-machined ductile iron steering knuckles. Additional front components include sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware. The rear lift is accomplished with new coil springs, a track bar relocation bracket, sway bar links, and extended bump stops, along with your choice of shock configuration.

Features

• High Clearance design with no torsion bar drop for maximum ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance and work with factory tie rod ends
• Heavy duty 1/4-inch thick laser cut steel crossmembers
• HD skid plate system bolts together to create a rigid subframe for improved off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series gas shocks, or Auto Ride bracket kit for factory air shock vehicles

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 33 inches
• Crossmember material: 1/4-inch thick laser cut steel, high-arched design
• Steering knuckles: CNC-machined ductile cast iron

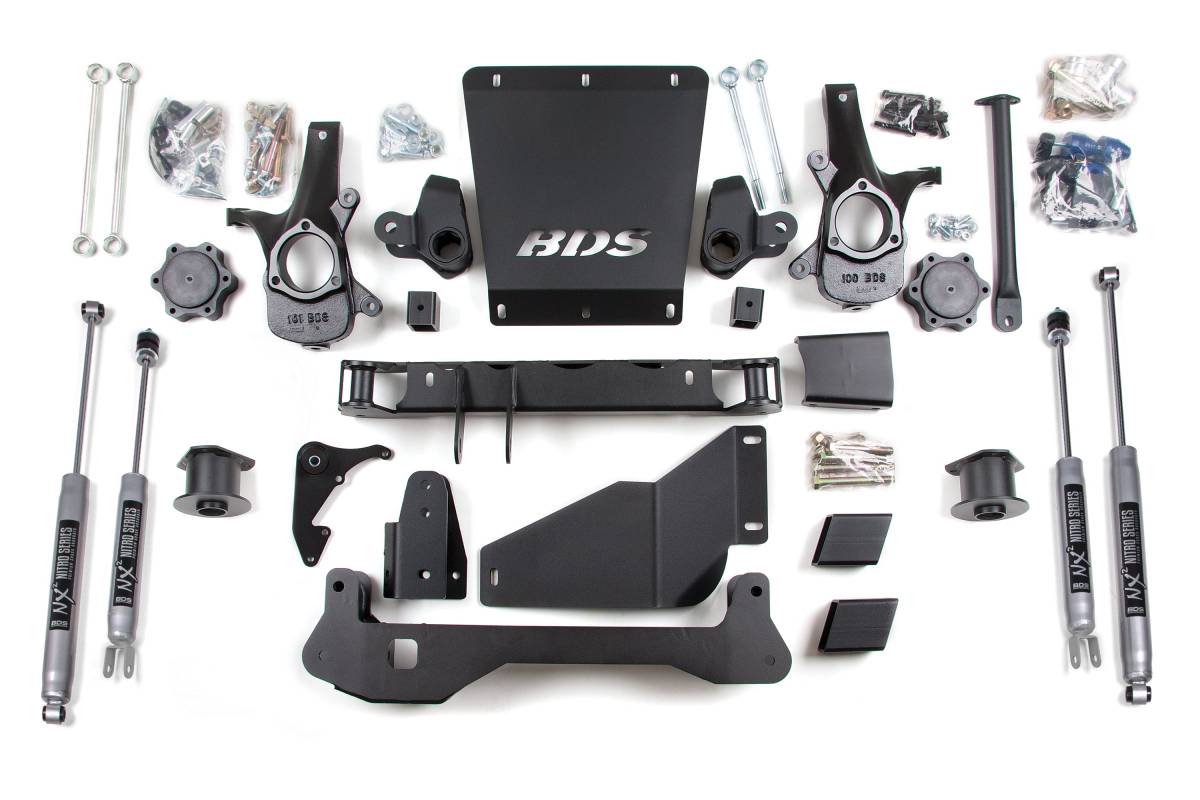

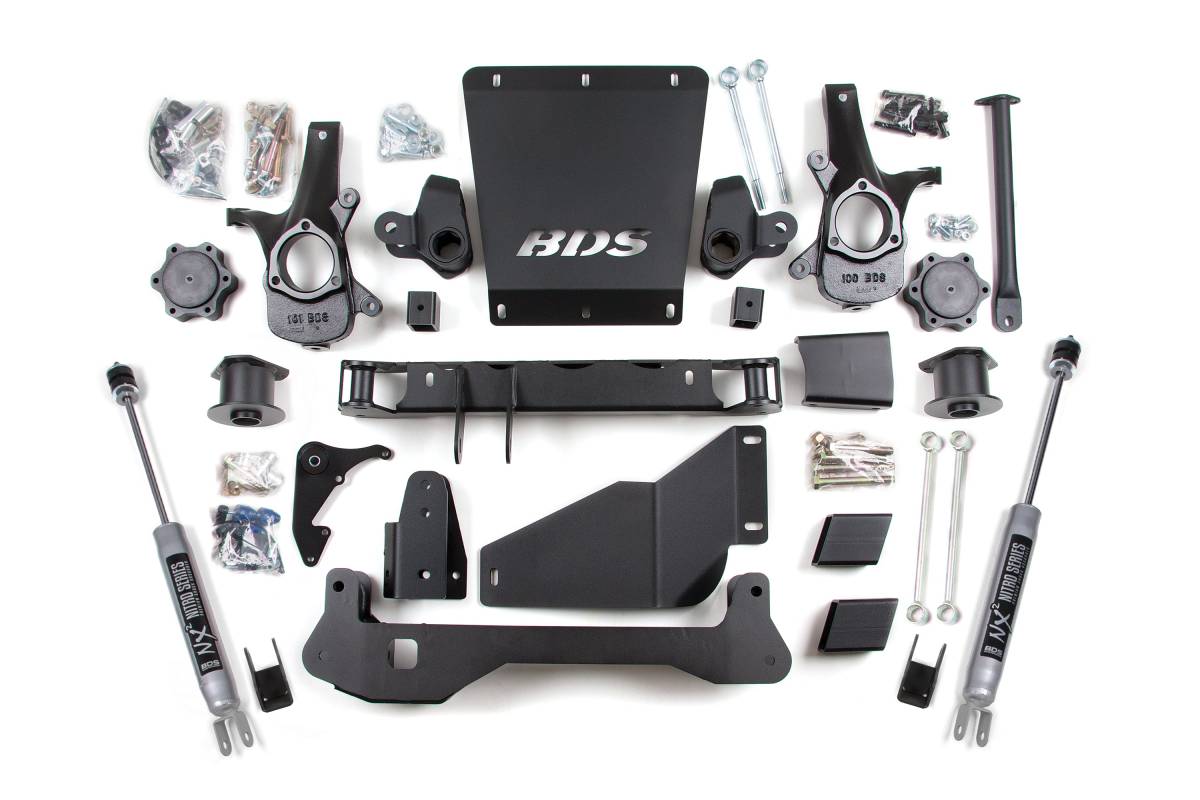

• Includes: Torsion bar relocation brackets, crossmembers, differential relocation brackets, skid plates, steering knuckles, sway bar drops, bump stop extensions, brake line brackets, CV spacers, rear coil springs, track bar relocation bracket, rear sway bar links, rear extended bump stops, and all required hardware

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Cut Off Wheel or equivalent, Reciprocating Saw, Torsion Bar Unloading Tool, Welding Equipment

Important Notes

• Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars. Not available through BDS.
• Requires frame bracket modification and differential mount modification.
• All-wheel drive models will require front drive line modification.
• If equipped with stock 17-inch wheels, must replace with 17-inch or larger aftermarket wheels. Larger tires cannot be installed on OEM wheels.
• Auto-Ride equipped vehicles require part #121400 in place of front and rear shocks.
• System will not fit 2000 model Escalades.
