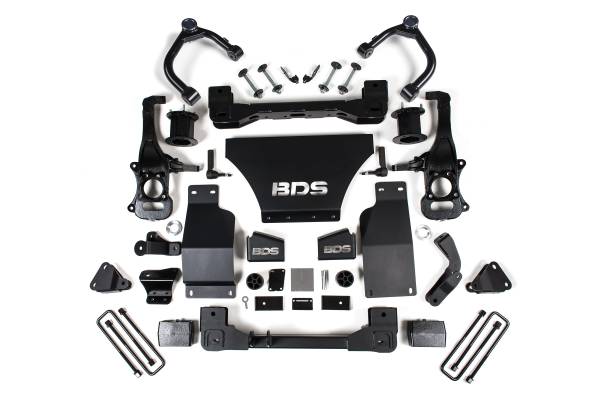

BDS 4 Inch Lift Kit | Adaptive Ride Control Only | Chevy Silverado High Country & GMC Denali 1500 (2019-2024) 4WD Gas

Overview

This 4-inch suspension lift kit from BDS Suspension is designed specifically for Chevy Silverado High Country and GMC Denali 1500 trucks (2019–2024, 4WD, Gas) equipped with Adaptive Ride Control (ARC). The kit improves stance, ground clearance, and off-road capability while correcting suspension and steering geometry to preserve on-road handling. Fitment accommodates up to 35-inch tires.

Up front, the kit uses top-mounted strut spacers, high-arched 1/4-inch thick steel crossmembers, multi-piece differential relocation brackets, and heavy-duty skid plates. CNC-machined ductile iron steering knuckles and replacement tie rod ends correct steering geometry at the new ride height while maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware are included. In the rear, a heavy-duty lift block replaces the stock block to lift and level the stance while retaining ride quality and load capacity. New U-bolts and shock relocation brackets retain full ARC system function.

Features

• Maintains factory Adaptive Ride Control (ARC) system
• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved off-road protection
• Multi-point differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4–5.5 inches
• Front Lift Method: Cross-Member
• Front Lift Height: 4 inches
• Rear Lift Method: Block
• Rear Lift Height: 2 inches
• Shocks Included: No

Installation

• Estimated Installation Time: 8 hours
• Difficulty: Difficult
• Tools Required: 36mm Socket, Cut-Off Wheel or Equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

Important Notes

• Requires frame bracket modification.
• Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod interference; stock 20-inch wheels can be reinstalled.
• All aftermarket wheels should be test-fit prior to mounting tires to ensure clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. This can be test-fit before the vehicle is lifted while still in stock condition.
• Front skid plate will not work with 2.7L Turbo Engines.
• If equipped with a mono-leaf rear spring, please use part #UBT4064 (Qty 4 required).
