BDS 4 Inch Lift Kit | 2009-2013 Dodge RAM 2500 Power Wagon 4WD | Leaf Springs | NX2 Nitro Series

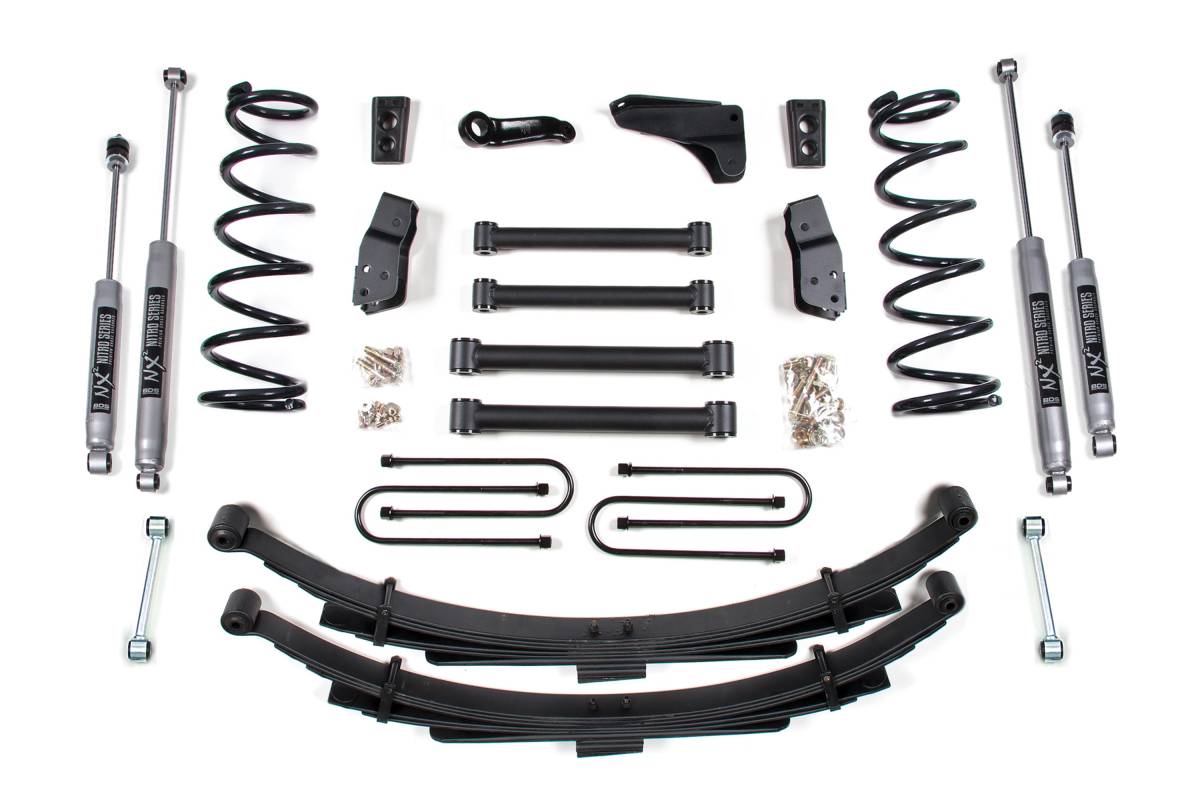

Rear lift achieved via Leaf Springs — multi-leaf progressive design for a smooth ride that maintains factory payload weight ratings. Paired with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

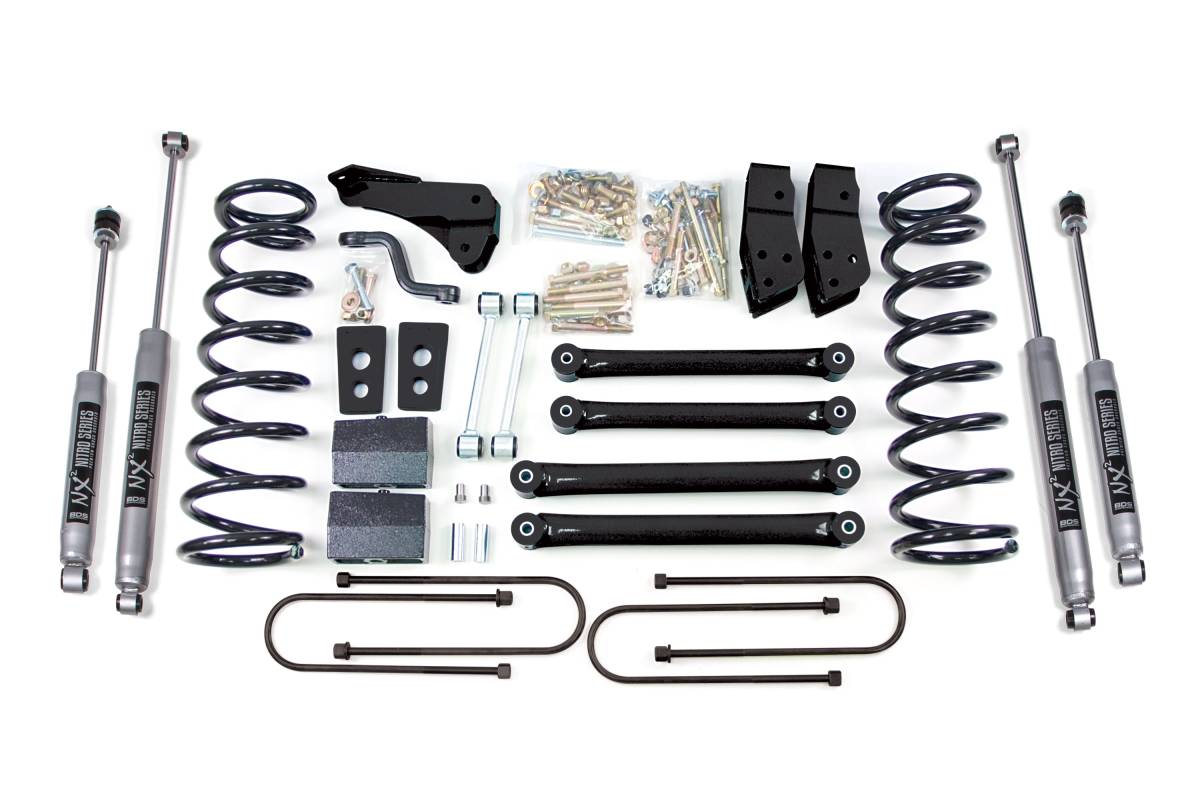

This 4-inch lift kit from BDS Suspension is designed for the 2009–2013 Dodge RAM 2500 Power Wagon 4WD and provides improved stance, performance, and off-road capability with clearance for up to 36-inch tires. BDS-engineered lower control arms are longer than stock to rotate the axle for proper alignment, and a relocation mounting bracket flattens the upper control arm angle to maintain factory handling characteristics. Up front, the kit includes diesel-specific Pro-Ride coil springs, all four control arms plus a relocation bracket, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, sway bar links, and precision-tuned shocks. Rear lift is achieved via the selected rear lift option paired with a matching set of shocks.

Features

• Tubular short arms improve strength, handling, and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high-strength progressive rate coil springs for a smooth ride on any terrain
• Front track bar relocation bracket to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of NX2 Nitro Series gas or FOX 2.0 Performance Series IFP shocks for improved ride and off-road performance
• Provides clearance for up to 36-inch tires

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2009–2013 Dodge RAM 2500 Power Wagon 4WD (Gas)
• Front coil springs: Diesel-specific, full-length, progressive rate Pro-Ride coil springs manufactured from high tensile steel
• Rear lift options: Leaf Springs or Block Kit (see variant for details)
• Shock options: FOX 2.0 Performance Series or NX2 Nitro Series (see variant for details)

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Cut Off Wheel or equivalent, Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment

Important Notes

These vehicles were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter. May require front exhaust modification to clear the front driveshaft at full droop.
