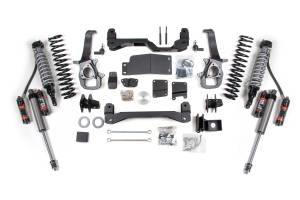

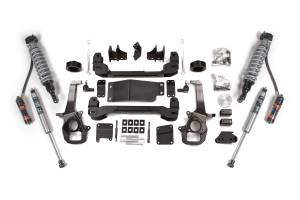

BDS 4 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 (2012) 4WD | 3 Inch Coil Springs & FOX 2.5 Performance Elite Rear

Rear lift provided by 3 Inch Progressive-Rate Pro-Ride Coil Springs for a blend of comfort and performance. Paired with FOX 2.5 Performance Elite rear shocks featuring a 2.5-inch aluminum body, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, and DSC – Dual Speed Compression Adjuster for maximum adjustability and control.

Overview

This BDS 4" Coilover Lift Kit is designed for unmatched performance, stance, and strength for the Ram 1500 4WD. This premium system clears up to 35" tires and replaces factory components with heavy-duty, high-clearance parts built to handle any terrain. Up front, FOX 2.5 Performance Elite Coilovers with DSC provide adjustable damping for ultimate on- or off-road control. CNC-machined ductile iron steering knuckles maintain proper geometry and ESC compatibility, while 1/4" steel high-clearance crossmembers and HD skid plates deliver strength and protection. Out back, your choice of rear lift option and rear shock configuration is paired with relocation brackets that correct pinion and axle geometry.

Features

• High-clearance crossmember design maximizes ground clearance
• CNC-machined ductile iron steering knuckles maintain ESC system compliance
• HD skid plate system for improved off-road protection
• 1/4" steel high-clearance crossmembers for added strength
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX 2.5 Performance Elite front coilovers with DSC – Dual Speed Compression Adjuster
• Choice of FOX 2.5 Performance Elite or FOX 2.0 Performance Series rear shocks
• Choice of 2 Inch Coil Spacer or 3 Inch Progressive-Rate Pro-Ride Coil Springs for rear lift
• Clears up to 35" tires
• Factory Protection Plus drivetrain warranty included

Specifications

• Front lift: 4 inches via FOX 2.5 Performance Elite Coilovers
• Rear lift: 2 inches (coil spacer) or 3 inches (coil springs) — selected at time of purchase
• FOX 2.5 Performance Elite Shocks: 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC – Dual Speed Compression Adjuster, fully serviceable, 1-year Manufacturer's Warranty
• FOX 2.0 Performance Series Shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, clear anodized finish, 1-year Manufacturer's Warranty
• 2 Inch Coil Spacer: maintains factory spring rate and ride characteristics
• 3 Inch Pro-Ride Coil Springs: progressive rate for a blend of comfort and performance

Installation

• Estimated Time: 10 hours
• Difficulty: Moderate
• Special Tools Required: Cut Off Wheel or equivalent, Reciprocating Saw

Important Notes

The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy. Not recommended for AWD models. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be reinstalled with a factory tire. Will not fit adjustable air suspension equipped models. This kit will bolt on Eco-Diesel models but will require an aftermarket front drive shaft. TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system. This kit is FMVSS No. 126 Compliant.
