BDS 5.5 Inch Lift Kit w/ 4-Link | Ram 2500 (2019-2026) 4WD Gas | FOX 2.5 Performance Elite Shocks

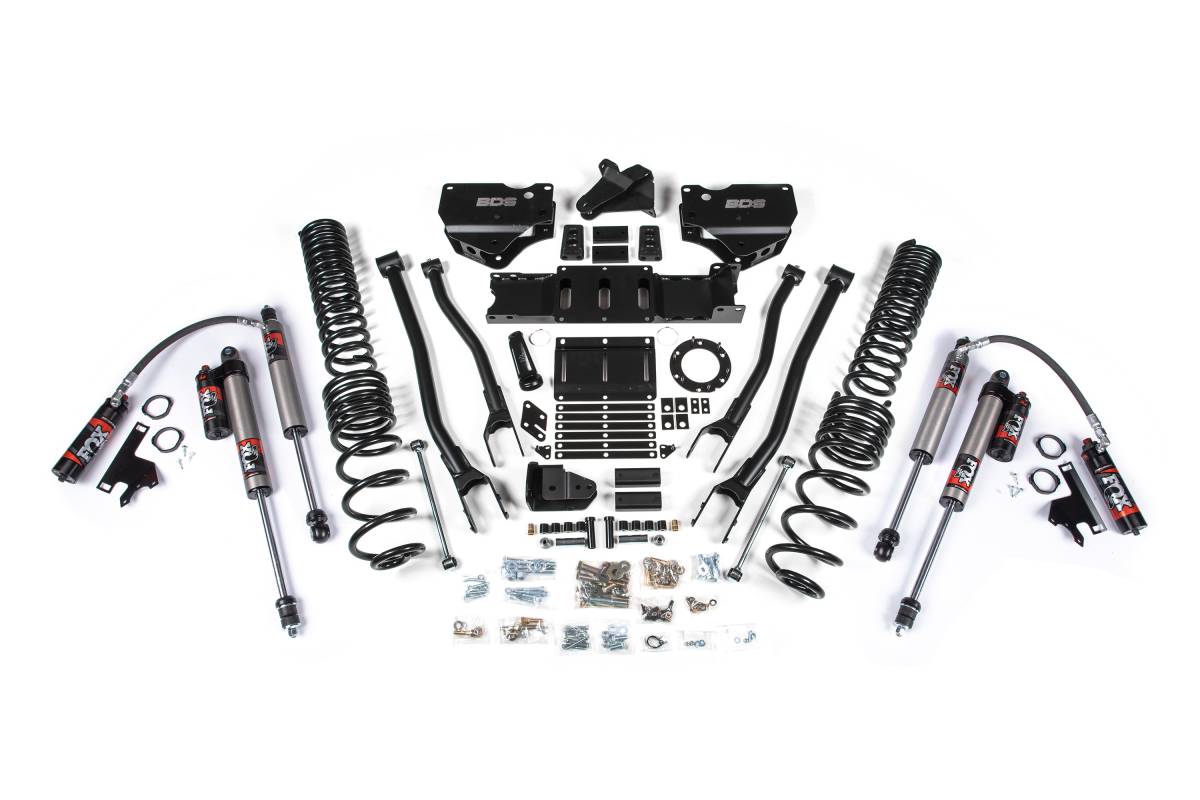

Configured with FOX 2.5 Performance Elite shocks. These feature a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, and an external reservoir design that separates shock oil from high-pressure nitrogen. A DSC (Dual Speed Compression Adjuster) comes standard, allowing easy adjustment for terrain, load, and speed. Fully serviceable and backed by a 1-year manufacturer's warranty.

Overview

BDS Suspension engineered this 5.5-inch lift kit with 4-Link conversion for the 2019-2026 RAM 2500 gas-powered truck. Designed to improve stance, performance, and capability, this kit provides clearance for up to 37-inch tires and includes everything necessary for a complete installation.

Up front, the kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of shocks.

4-Link Conversion

The factory stamped steel radius arms are converted to a BDS 4-Link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms, correcting axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

Full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied for both front and rear to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high tensile steel with properly sized wire diameter, these direct OE replacement coil springs are engineered for maximum reliability without premature coil bind.

Steering Correction

A forged drop pitman arm minimizes the steering angle once lifted, paired with a heavy duty track bar drop bracket to keep steering geometry in phase through suspension travel while recentering the front axle.

Features

• Heavy duty 4-link arms improve strength, handling, and caster control
• High strength progressive rate coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts

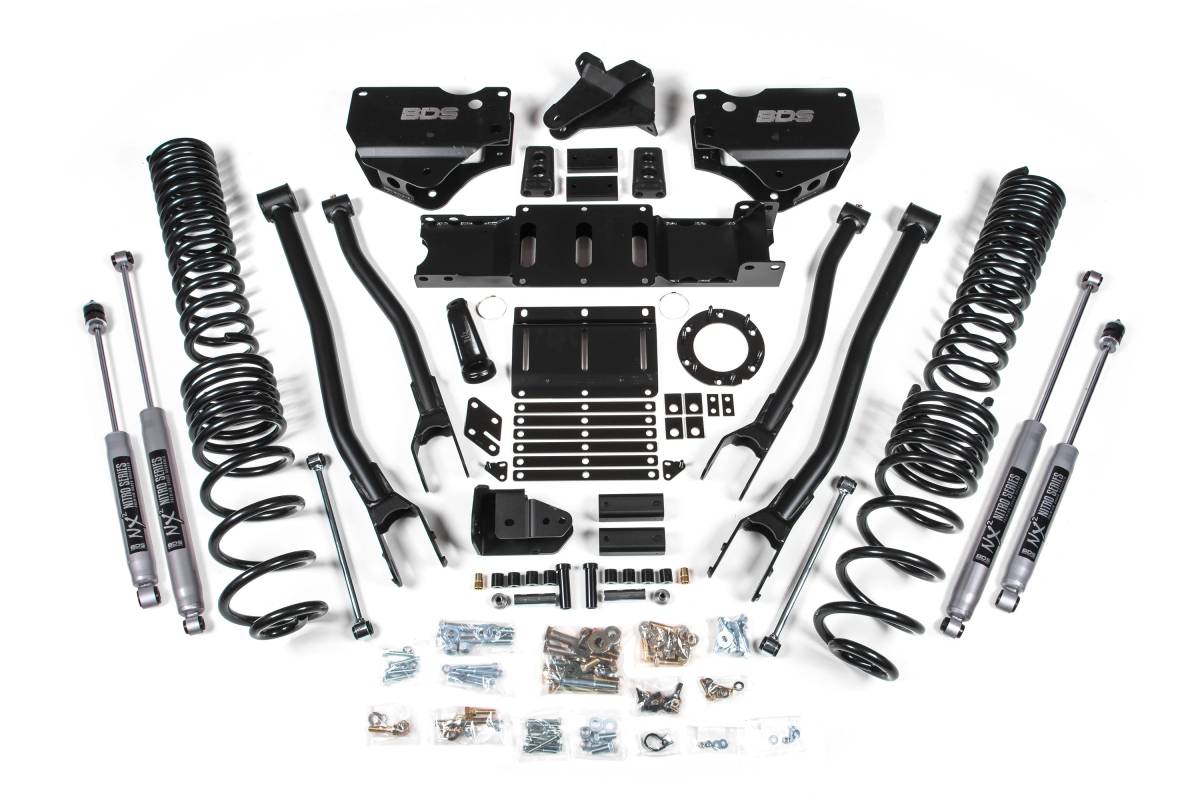

• Available with NX2 Nitro Series or FOX Performance Series nitrogen-charged shocks

Specifications

• Lift Height: 5.5 inches
• Tire Clearance: Up to 37 inches
• Application: 2019-2026 RAM 2500 4WD Gas
• 4-Link conversion brackets: High-strength 1/4-inch steel
• Coil springs: Gas-specific, progressive rate Pro-Ride, high tensile steel

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Cut Off Wheel or equivalent, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• Will NOT fit air-ride equipped models
• Gas models only
• Will NOT fit Power Wagon models
• Exhaust modification is required to clear the front driveshaft. Vehicle can be driven without the front driveshaft to an exhaust shop
