BDS 4 Inch Lift Kit w/ 4-Link | Ram 2500 (2019-2026) 4WD Gas | NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Overview

BDS Suspension engineered this 4-inch lift kit with 4-Link conversion for the 2019–2026 RAM 2500 gas-powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to lift your truck with clearance for up to 35-inch tires.

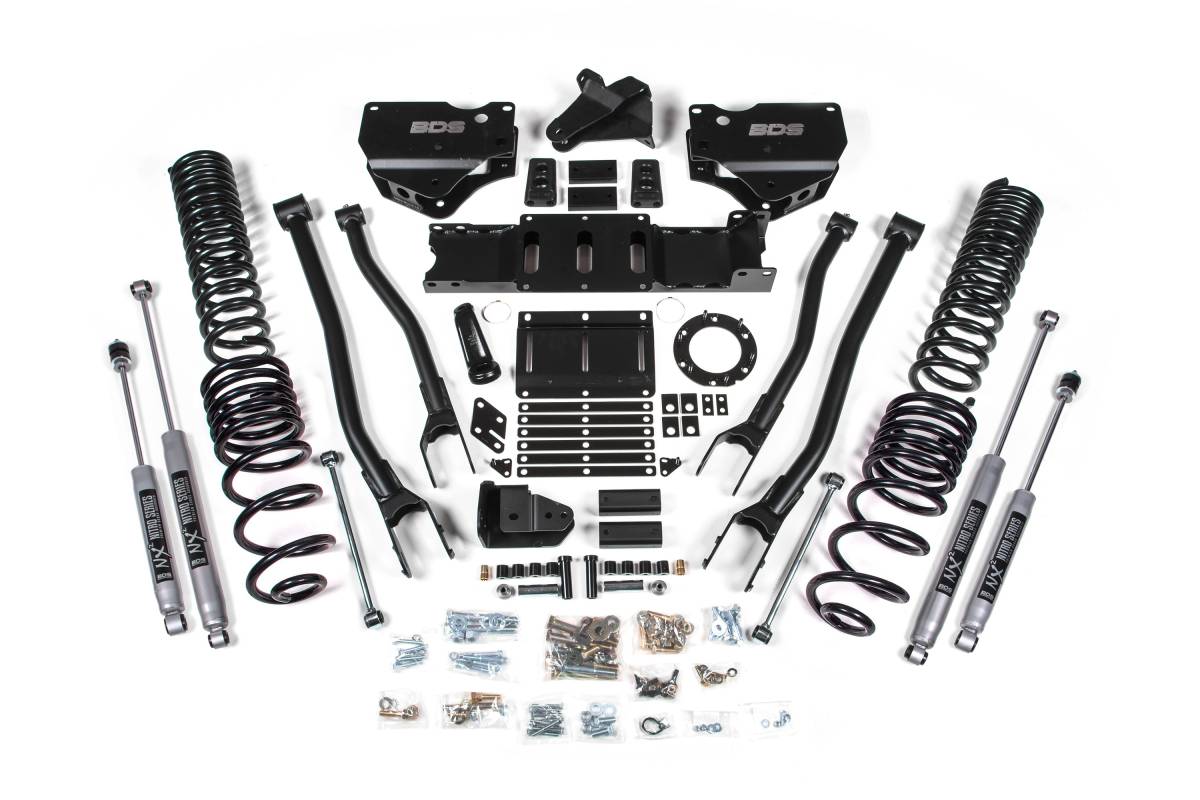

Up front, the kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of rear shocks.

4-Link Conversion

The BDS 4-Link converts the factory stamped steel radius arms to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets for mounting HD upper and lower control arms to correct axle positioning and limit caster change throughout wheel travel.

Pro-Ride Coil Springs

Full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied front and rear to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high tensile steel with properly sized wire diameter, these direct OE replacement coil springs are engineered for maximum reliability without premature coil bind.

Steering Correction

A forged drop pitman arm minimizes the steering angle after lifting, and a heavy duty track bar drop bracket keeps steering components in phase through suspension travel while recentering the front axle.

Features

• Heavy duty 4-link arms improve strength, handling, and caster control
• High-strength progressive rate coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Choice of BDS NX2 Nitro Series or FOX Performance Series IFP gas shocks for improved ride and off-road performance

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Fits: 2019–2026 RAM 2500 4WD Gas models
• 4-Link conversion brackets: High-strength 1/4-inch steel
• Coil springs: Full-length, progressive rate Pro-Ride, high tensile steel, gas-specific
• Includes: 4-Link control arms with conversion mounts, forged drop pitman arm, track bar bracket, bump stops, brake line brackets, track bar relocation bracket, bump stop extensions, sway bar links, transfer case indexing ring, HD transmission crossmember

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Cut Off Wheel or equivalent, Step Drill Bit, Drill/Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• Will NOT fit air-ride equipped models
• Gas models only
• Will NOT fit Power Wagon models
• Exhaust modification is required to clear the front driveshaft. Vehicle can be driven without the front driveshaft to an exhaust shop
• Trucks equipped with a manual shift transfer case will require Transfer Case Shifter Extension — BDS122422
