BDS 5.5 Inch Lift Kit | Ram 3500 w/ Rear Air Ride (2013-2018) 4WD Gas | NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks front and rear. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Overview

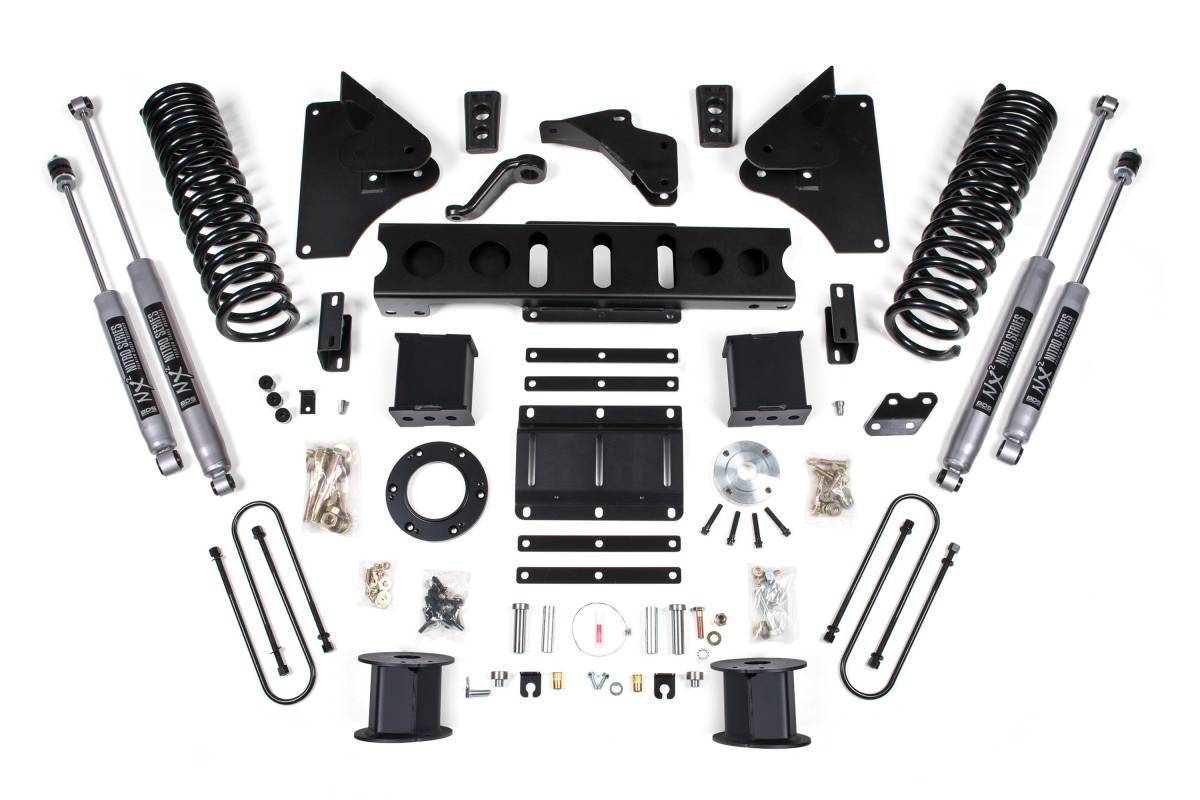

This 5.5-inch lift kit from BDS Suspension is designed for 2013–2018 RAM 3500 gas-powered trucks equipped with factory rear air ride. The kit improves stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts, and a matched set of shocks.

Features

• Heavy duty radius arm drop brackets to maintain proper suspension geometry
• Front high-strength progressive rate Pro-Ride coil springs for a smooth ride on varied terrain
• Front track bar relocation bracket to re-position the front axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• High-strength fabricated rear lift block with heavy duty air bag spacers and longer u-bolts
• Choice of BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks for improved ride and off-road performance
• Provides clearance for up to 37-inch tires

Specifications

• Lift Height: 5.5 inches
• Vehicle Fitment: 2013–2018 RAM 3500 4WD Gas w/ Factory Rear Air Ride
• Pro-Ride Coil Springs: Full-length, gas-specific, progressive rate
• Rear components: Fabricated lift block, heavy duty air bag spacers, longer u-bolts
• Shock options: NX2 Nitro Series or FOX 2.0 Performance Series

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
• The carrier bearing drop is necessary for models equipped with a two-piece rear drive shaft.
• Some vehicles may require a rear driveshaft spacer kit (p/n 122007) to maintain adequate rear driveshaft engagement.
• DRW models: fit inner wheel clearance to the upper u-bolt plate on 5.5–6-inch kits.
