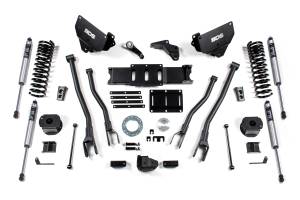

BDS 5.5 Inch Lift Kit | Ram 2500 w/ Rear Air Ride (2014-2018) 4WD Gas | w/ FOX 2.0 Performance Series Shocks

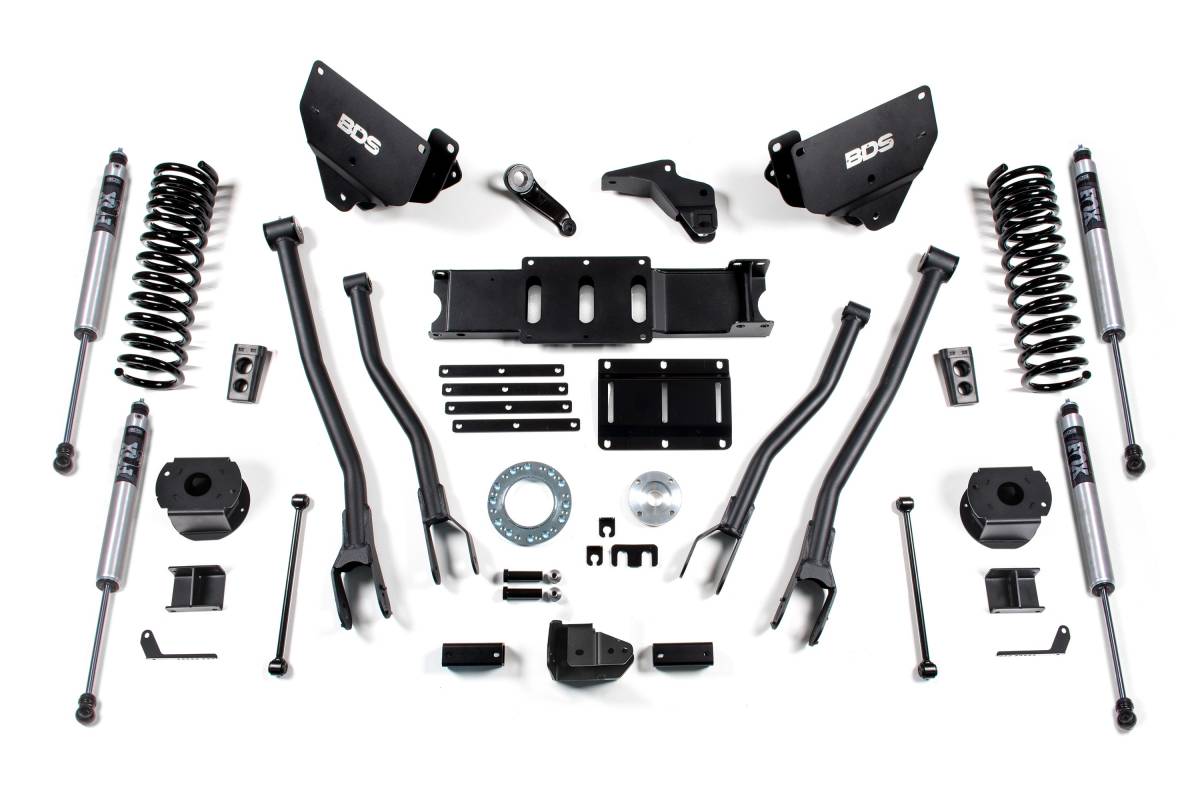

Configured with FOX 2.0 Performance Series shocks front and rear. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

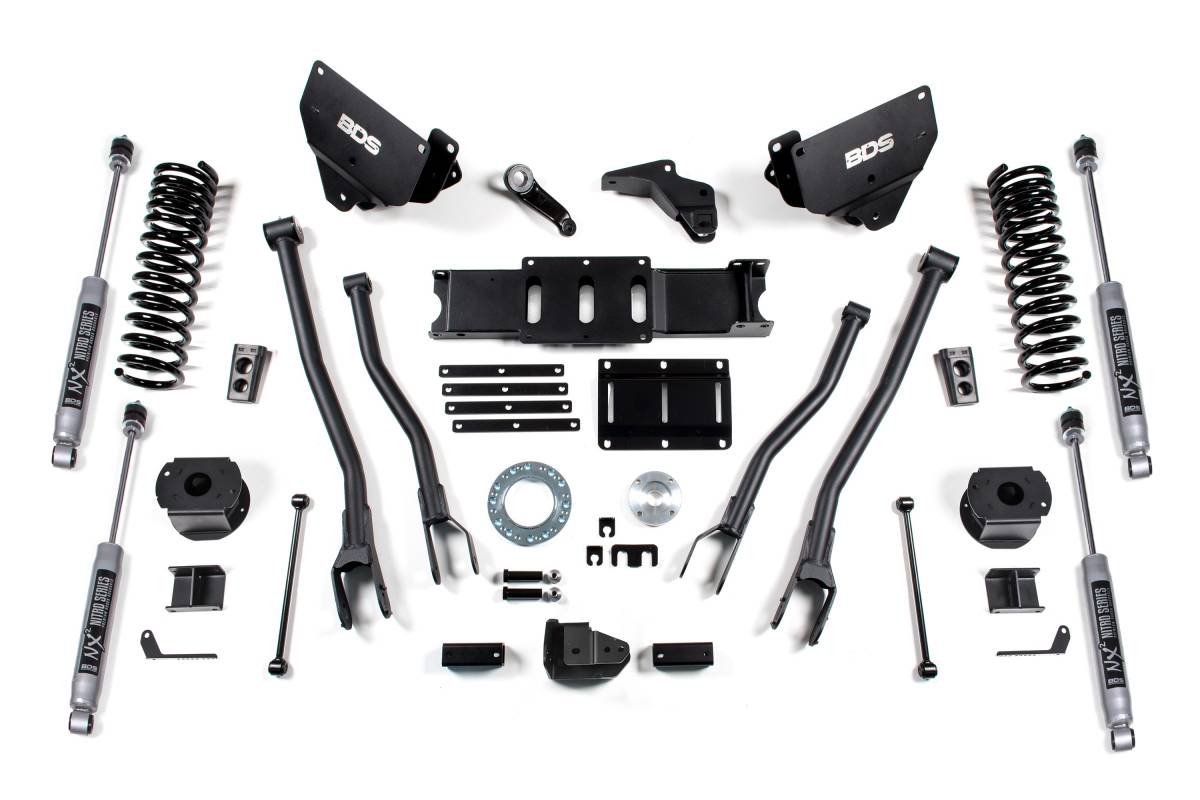

This 5.5-inch radius arm lift kit from BDS Suspension is designed for 2014–2018 RAM 2500 gas-powered trucks equipped with the factory rear air ride system. The kit improves stance, performance, and off-road capability while providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. A transfer case indexing ring and new transmission crossmember are supplied to maintain proper front driveshaft use at this lift height. In the rear, the kit uses heavy-duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, and new air ride leveling sensor brackets to re-position the ride height sensors and maintain full air bag range of motion.

Features

• Heavy-duty radius arm drop brackets maintain proper suspension geometry
• High-strength progressive rate Pro-Ride coil springs engineered for smooth, predictable ride across various terrains
• Track bar relocation brackets to re-position the front and rear axle
• Forged drop pitman arm to correct steering angles once lifted
• Front sway bar correction hardware to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Heavy-duty air bag spacers and air ride leveling sensor brackets to maintain full factory air bag range of motion
• Bump stop extensions and rear sway bar links included
• NX2 Nitro Series or FOX 2.0 Performance Series shocks front and rear (variant-dependent)

Specifications

• Lift Height: 5.5 inches
• Vehicle Fitment: 2014–2018 RAM 2500 4WD Gas, with OE Rear Air Ride
• Tire Clearance: Up to 37 inches
• Radius Arms: High-strength tubular construction, OE frame mount location, caster adjustable, OE-style rubber bushing at frame mount
• Coil Springs: Full-length, gas-specific, progressive rate, high tensile steel, direct OE replacement sizing
• Shock Options: NX2 Nitro Series or FOX 2.0 Performance Series (see variant descriptions)

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• For OE Air Ride systems only.
• 6.4L gas models will require exhaust modification to clear the front driveshaft.
• 5.7L gas models may require exhaust modification as well.
• The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
