BDS 5.5 Inch Radius Arm Lift Kit | Ram 2500 (2014-2018) 4WD Gas | w/ FOX 2.0 Performance Series Shocks

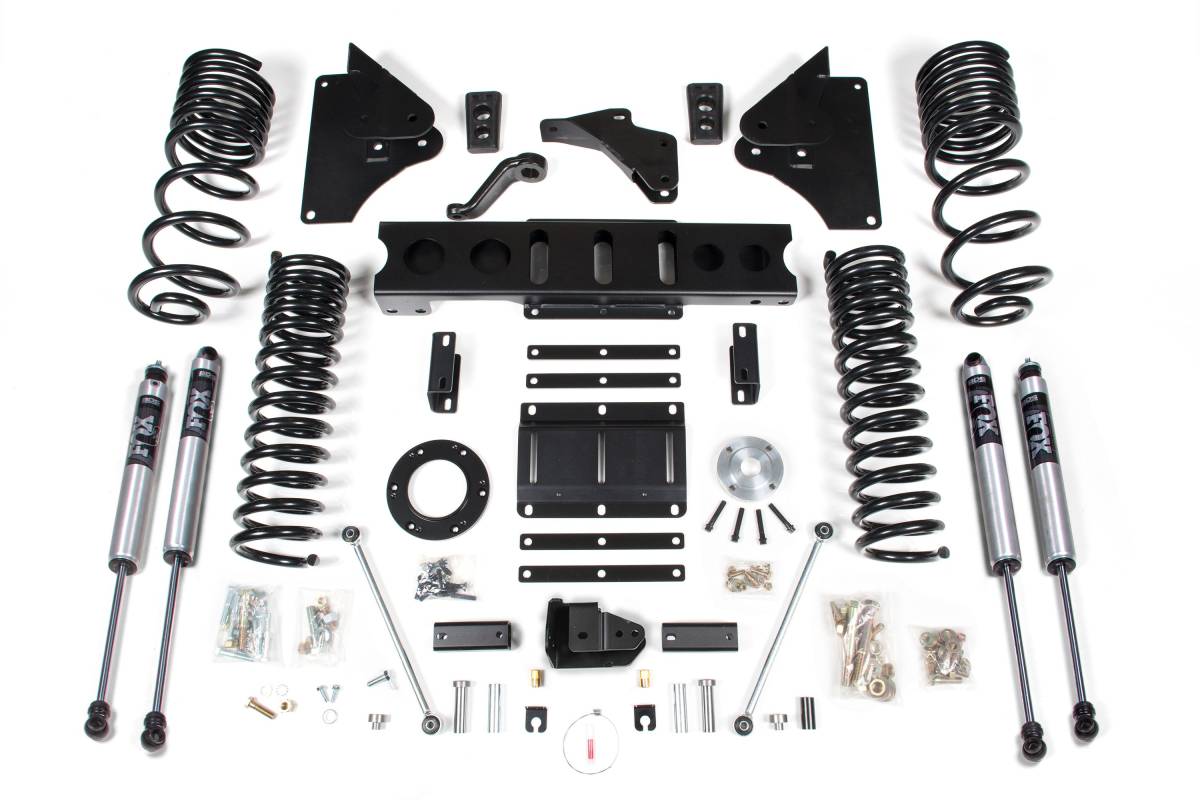

Configured with FOX 2.0 Performance Series shocks front and rear. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving to maximize performance, and a long-lasting clear anodized finish.

Overview

This 5.5-inch radius arm lift kit from BDS Suspension is designed for 2014–2018 RAM 2500 gas-powered 4WD trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, it includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, and sway bar links. High-strength tubular radius arms replace the factory stamped steel units, mounting in the factory location with caster adjustment capability and OE-style rubber bushings at the frame mount.

Features

• Heavy-duty radius arm drop brackets maintain proper suspension geometry
• High-strength tubular radius arms with caster adjustment and OE-style rubber bushings at frame mount
• Gas-specific progressive rate Pro-Ride coil springs front and rear for correct lift height and predictable ride
• Track bar relocation brackets to re-position axle and maintain steering geometry
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Bump stop extensions included for rear suspension
• Provides clearance for up to 37-inch tires
• Choice of BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks

Specifications

• Lift Height: 5.5 inches
• Vehicle Fitment: 2014–2018 RAM 2500 4WD Gas
• Coil Springs: Full-length, gas-specific, progressive rate Pro-Ride; manufactured from high tensile steel with properly sized wire diameter
• Radius Arms: High-strength tubular construction; caster adjustable; OE-style rubber bushing at frame mount
• Shock Options: NX2 Nitro Series or FOX 2.0 Performance Series (see variant)
• Maximum Tire Size: 37 inches

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
