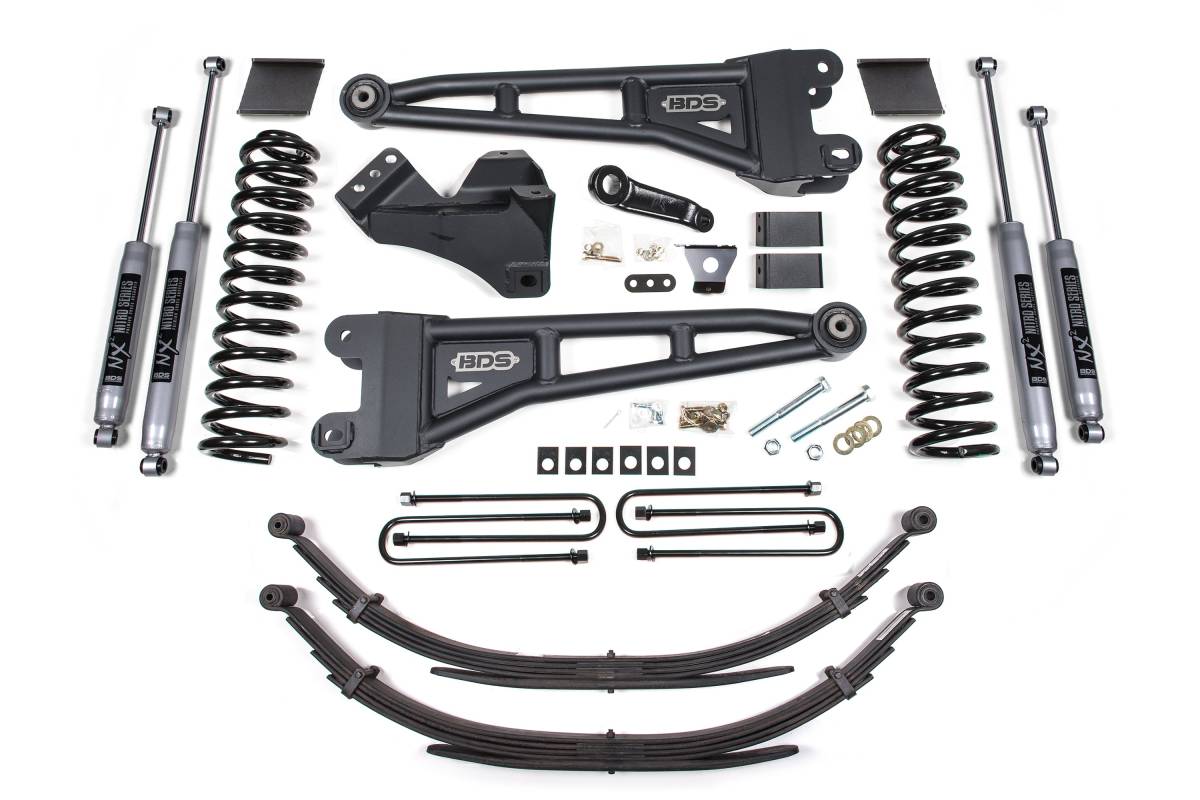

BDS 6 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (2011-2016) 4WD Gas | Factory 3 Inch Rear Blocks | NX2 Nitro Series

Configured for trucks with Factory 3 Inch Rear Blocks. Select this option to ensure correct u-bolt length for your factory block height. Includes NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

This 6 inch lift kit for the 2011–2016 Ford F250/F350 Super Duty 4WD (Gas) retains and builds upon the factory rear leaf spring system. The primary three leafs remain functional under no additional load, providing excellent everyday ride quality. As moderate loads are applied, the secondary leafs engage. Under full load, the bottom overload engages for maximum hauling capacity. This progressive setup allows the truck to maintain ride quality when unloaded without sacrificing payload capacity. The rear lift is achieved by retaining the factory rear blocks alongside new BDS leaf springs to achieve a level stance — u-bolt length is determined by the height of your factory lift blocks.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for remarkable ride quality through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller

Important Notes

• Front exhaust modification may be required to clear the front drive shaft (gas only).
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front driveline vibration may occur.
• If equipped with a rear sway bar, #123009 is required.
• U-bolts will not work on dually.
